Ftdi Usb Rs485 Wire End Serial Communication Cable PVC Jacket USB2.0 to RS485 RS422 RS232 Cable

Ftdi Usb Rs485 Wire End Serial Communication Cable PVC Jacket USB2.0 to RS485 RS422 RS232 Cable thumbnail-1
Ftdi Usb Rs485 Wire End Serial Communication Cable PVC Jacket USB2.0 to RS485 RS422 RS232 Cable thumbnail-2
Ftdi Usb Rs485 Wire End Serial Communication Cable PVC Jacket USB2.0 to RS485 RS422 RS232 Cable thumbnail-3
Ftdi Usb Rs485 Wire End Serial Communication Cable PVC Jacket USB2.0 to RS485 RS422 RS232 Cable thumbnail-4
Ftdi Usb Rs485 Wire End Serial Communication Cable PVC Jacket USB2.0 to RS485 RS422 RS232 Cable photo-1
Ftdi Usb Rs485 Wire End Serial Communication Cable PVC Jacket USB2.0 to RS485 RS422 RS232 Cable photo-2

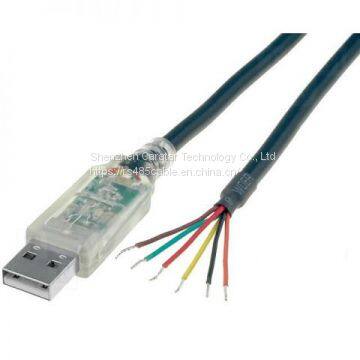

Ftdi Usb Rs485 Wire End Serial Communication Cable PVC Jacket USB2.0 to RS485 RS422 RS232 Cable photo-3
Ftdi Usb Rs485 Wire End Serial Communication Cable PVC Jacket USB2.0 to RS485 RS422 RS232 Cable photo-4
US$ 5.98 - 9.98 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
CARATAR
Place of Origin:
China
Model Number:
USB to RS485-WE-1800-BT
Contact Supplier Request Quote Chat Now
Shenzhen Caratar Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
sz or hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CARATAR
Place of Origin China
Model Number USB to RS485-WE-1800-BT
Use Camera, Computer, Mobile Phone, MP3 / MP4 Player, Video Game Player
USB Type Standard

6ft Usb-rs485-1800-bt Ft232 Usb Rs485 6 Core Wire End Cable FT232R USB RS485 Converter,Panel Mount FTDI USB to RS485 Cable Conveter/USB to RS422 RS485 Serial Port Converter Adapter Cable with FTDI Chip Mac 1.5 Feet

Product Description

 FTDI USB-RS485-WE-1800-BT CABLE, USB TO RS485 SERIAL, 1.8M, WIRE END

FTDI Chip usb to RS485 Cable with TX/RX LEDs 6ft to wire end adapter USB-RS485-WE compatible rs485 adapter cable with driver

  • USB-RS485 converter cable provides a USB to RS485 serial interface with customized end connectors. Entire USB to RS485 translation protocol handled by the electronics in the cable

  • ESD Protection for RS-485 I/O's ±15kV Human Body Model (HBM) ±15kV EN61000-4-2 Air Gap Discharge ±8kV EN61000-4-2 Contact Discharge

  • EIA/TIA-485 communication interface with low power requirements. FT232R chipset provides single chip USB to asynchronous serial data transfer interface. Works with all Windows and Mac OS versions

  • Visual indication of Power and Tx/Rx data traffic via LEDs in the transparent USB connector

  • Every cable is built to last for years with high quality industrial grade materials.

  • The cable works with all Windows and Mac OS versions including the latest Windows 10 and Mac OS X 10.12(Sierra).

  • The USB-RS485 cable is a USB to RS485 levels serial UART converter cable incorporating FTDI's FT232R USB to serial UART interface IC device which handles all the USB signaling and protocols.

  • The cable provides a fast, simple way to connect devices with an RS485 interface to USB.

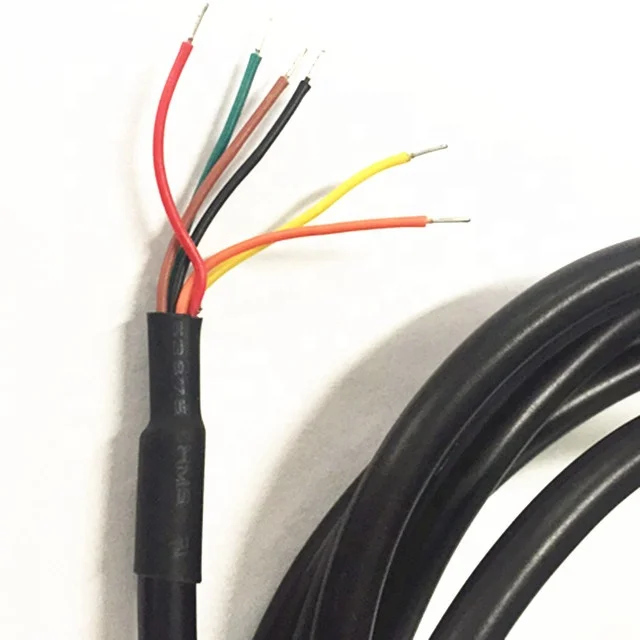

  • This cable has 6 outputs: GND(Black), Data-(Yellow), 5vPower(RED), Terminator1(Brown), Data+(Orange), Terminator 2(Green).

  • In the cable, there is a 120R terminal resistor resistor connected in between Terminator 1 and Terminator 2.

Processor FTDI FT232RL
RS485 Interface Included screw terminal header / single wires
Fail-safe bias resistors Yes
USB interface Standard Type A Male
Ports 1-port available for RS485
Signals RS485, 2-wire half duplex: D+, D-, GND
Baud rate 300-921.600bps (up to 3kbps by using alising)
TX / RX buffer size 256 Byte Transmit Buffer / 128 Byte Receive Buffer
Adjustable USB transfer sizes for TX and RX From 64 bytes to 4096 bytes
Adjustable latency timer 1 to 255 msec
Adjustable read and write timeouts 0 to 10000 msec
Flow Control None, Xon/Xoff, Hardware
COM port accessible by Included virtual COM port drivers or FTD2XX.DLL
Special features Compatible with Modbus RTU/ASCII, BACnet
Supports non-standard baud rates
Automatic Send Control
Electrostatic (ESD) protection 600W surge protection, 15KV static electricity protection
Current draw Static: less than 80mA. Dynamic average: less than 150mA
Interface compliance USB1.1,2.0,3.0, EIA/TIA RS-232
Package: 1 x usb rs485 FTDI cable
Detailed Images

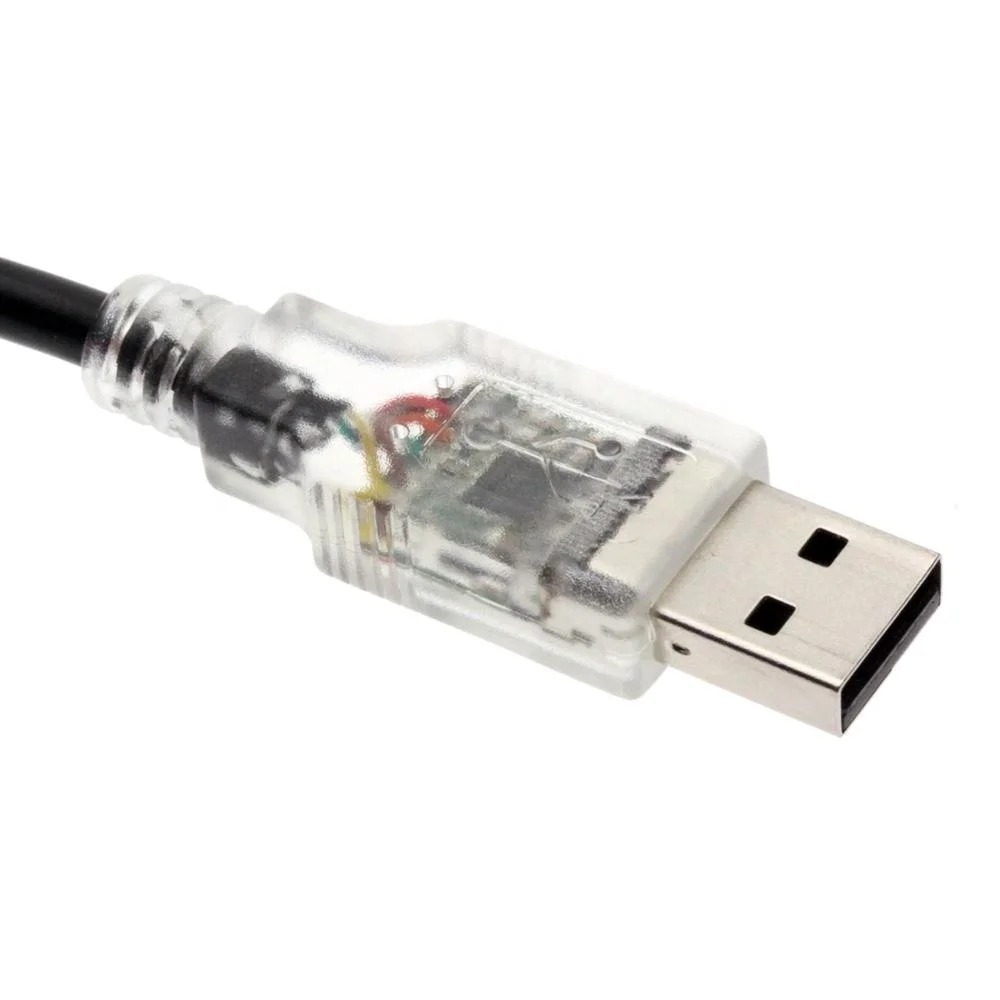

USB-TTL-to-Open-Cable-8.jpgTTL serial cable (1).jpgUSB RS485-WE (4).jpgUSB RS485-WE (1).jpgUSB RS485-WE (3).jpgUSB RS485-WE (2).jpg
FAQ

HTB1Sq.jpg Converter USB Cable to RS485/USB 2.0 to RS485/RS422 Serial Converter Adapter FTDI Chipset for WinXP/7/8/10, Mac, Linux, Android/USB-RS485-WE-1800-BT, FT232 USB RS485 for Win 10, Win 8, Android, mac Ttl Uart Serial CableUSB-RS485-WE-1800-BT, FT232 USB RS485 for Win 10, Win 8, Android, mac Ttl Uart Serial Cable/ftdi   usb rs485 to rj11 cable,RJ45,8P8C,10P10C

Our Services

QQ20151204165225

HTB1gkzwGFXXXXamXXXXq6xXFXXX2


Product Tags: RS485 Signal Cable 2 Core Communication Cable Wire , FTDI USB RS485 cable USB2.0 RS485 communication cable , usb to rs485 cable usb rs485 to rj11 cable usb to db9 rs232 serial cable ftdi chip
