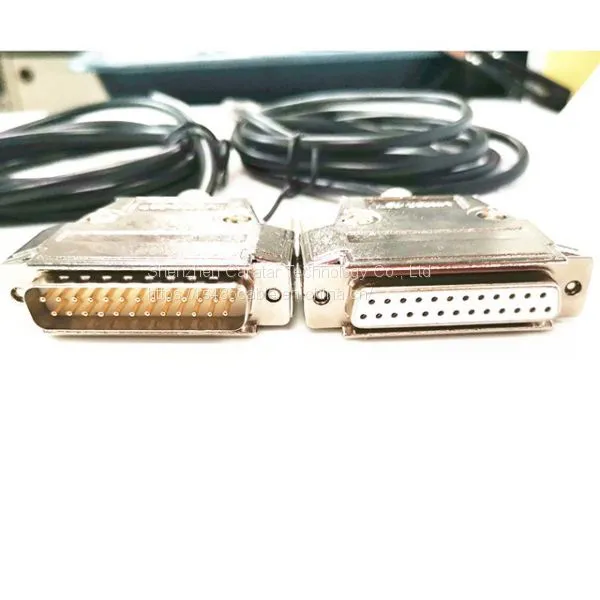

Help Center6Ft (6 Feet) USB to Serial RS-232 DB-25 Male Straight-Thru Cable FTDI Chipset (5-Wires)
Related Products
-
FTDI Chipset Usb Rs232 to Mini USB 4P Adapter Cable for Uniden Scanner Radio, PC Interface CableUS$ 4.98 - 9.98MOQ: 10 Pieces -
FTDI Chipset Usb Rs223 DIN6pin 8P 12Pin Adapter Male CableUS$ 5.98 - 12.98MOQ: 10 Pieces
-
Female Gender and Audio & Video Application FTDI FT232RL+ZT213 Usb Rs232 To Rj11/rj12 6p6c CableUS$ 5.98 - 8.98MOQ: 10 Pieces
-
1.8m FTDI USB to Serial RS232 FT232RL Chip DB9 DB25 Male or Female Adapter Converter CableUS$ 6.98 - 11.98MOQ: 10 Pieces
-
FT232RL FTDI to USB Serial Adapter Module USB to 232 for Download CableUS$ 4.98 - 7.98MOQ: 10 Pieces
New USB 2.0 To RS232 COM Port 9 Pin Serial DB25 DB9 Adapter Cable ConverterUSB Serial Programming Cable DB-25 Male Null Modem Full Handsh
FTDI FT232RL and RS-232 level shifter chips Cable pinout specification notation [Computer Side Signal Name (Device Output Pin #) ]: TXD (3), RXD (2), CTS (4), RTS (5), DTR (6) & (8), GND (7), DSR & CD (20)
| IC | FT232RL |
| PC Interface | USB 2.0 |
| Device Interface | RS-232 |
| Cable Material | Copper wire |
| Cable Size | 0.35m,0.5m,1.5m,1.8m,3m can be optional |
| Transfer Rate | Standard RS-232 transfer rate |
| Color | black,tea or blue color |
| Device Support | RS-232 Interface |
| Package List | Cable, CD Driver is optional |
| System Requirements | Windows7,Windows8/Vista/XP/2000/ME/98SE Linux Mac OS 8.6 or higher |
| Application Area | USB Smart Card Readers,ISDN terminal adapter,Bar code scanner,USB Hardware Modem,PDA-USB data transfer,etc |
-
USB 2.0 Full Speed compatible
This is a 1.8M Serial Null Modem USB to RS-232 with a DB-25 Female connector, Metal Housing with thumbs screws. This cable will work for a single computer to a CNC using XON/XOFF hardware handshaking. I specialize in USB to anything cables so I can build custom cables for you as well.
Here is a list of the controls and tools that are compatible with this cable.
for Acramtic
for Amanda
for Brother
for Bosch
for Boss
for DeltaDynaPath
for Fagor
for Haas
for Heidenhain
for Mazak
for Mori
for Mitsubishi based controls -all
for Roland
for Sinumerik
for Yasnac
for Siemens
1.1.5m or 1.8m industrial grade USB to RS232(DB25 Male) adapter cable.
2.It is an ideal solution for computer to communicate with many serial devices directly through USB port such as CNC, plotter, modem, Scanner etc.
3.This product is designed to make connection between USB port and serial devices(RS232), not parallel printer or other devices based on parallel protocal(IEEE-1284), even though both have DB25 connector. Check your devices setup prior to purchase.
4.Works with USB 1.1 & 2.0 Host and Hub ports. Powered directly by USB port, no external power adapter required.
5.Industry Standard FTDI chip set & device drivers to ensure maximum compatibility and superior reliability for industrial application.
6.This is NOT a printer cable. This straight-thru cable converts any USB port into an RS232 connector on your computer. You can set the ports to COM1 or COM2.
Send Inquiry to This Supplier
