Chinese manufacturer Hydraulic Water Well/Core Mine Drilling Rig
- 150 Set / Sets per Month
- Chongqing
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details

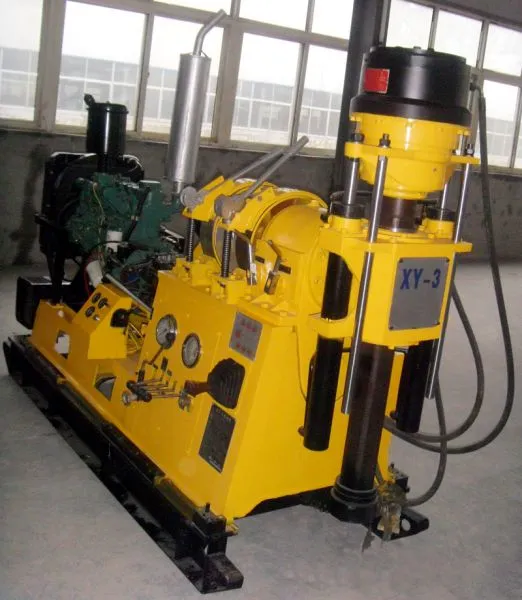

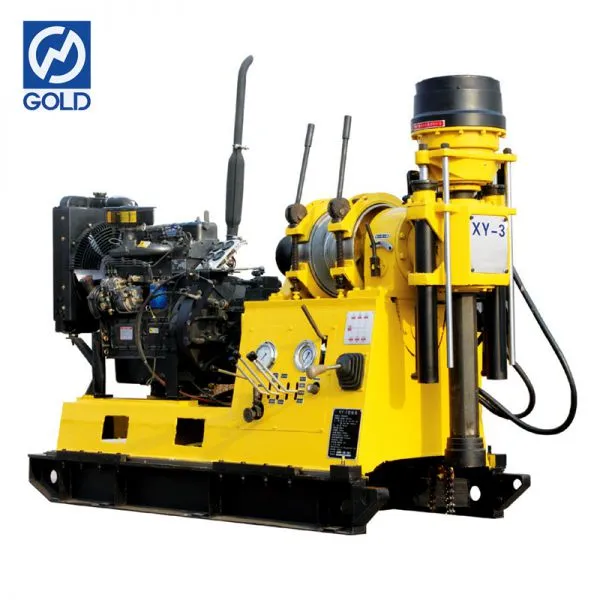

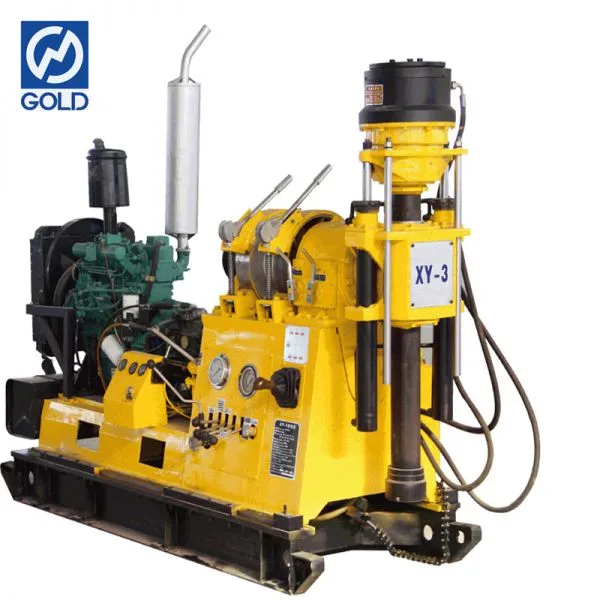

Brand Name: | GOLD | Place of Origin: | China | Model Number: | XY-3 |
Type: | Core Drilling Rig | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 Year | Weight: | 1600kg | Dimension(L*W*H): | 2500*900*1800mm |
Power Type: | Diesel | Voltage: | 380V | Usage: | Coal |
Condition: | New | Power(W): | 39kW |
Product Description

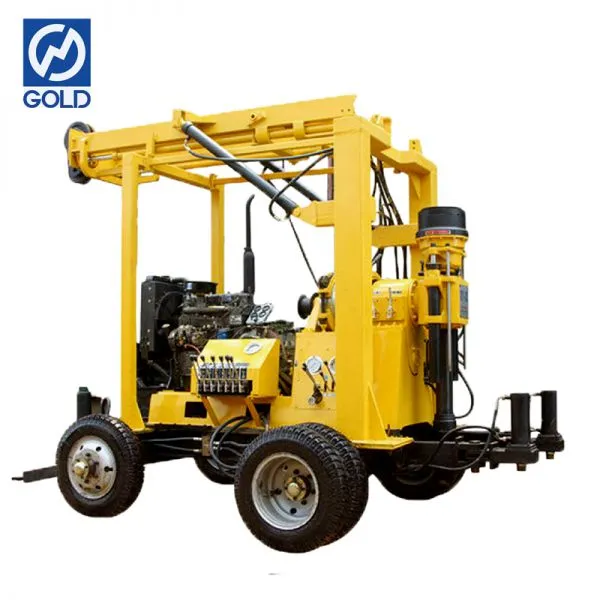

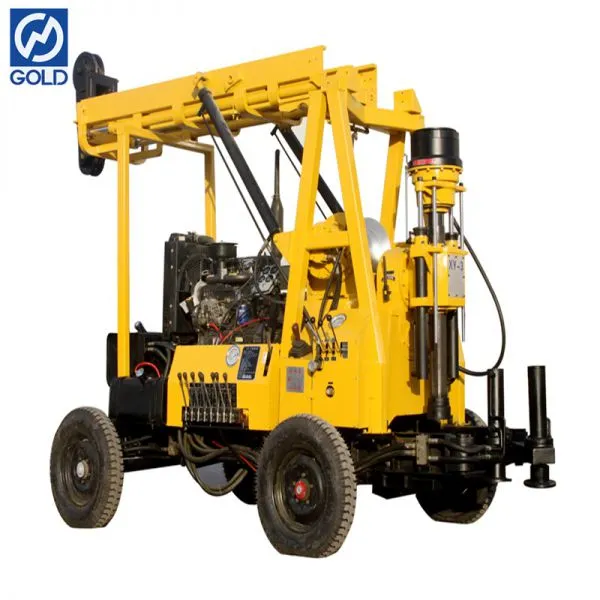

Chinese manufacturer Hydraulic Water Well/Core Mine Drilling Rig
Main features
1. Using MW525 model gear box assembly and YN490 automotive powertrain, it has 10 speed grades and reasonable speed range, high torque, strong bearing capacity, and can change speed by remote control with conveniently centralized operation.
2. Powerful with two reverse gear speeds, convenient to operate in case of handing accidents.
3. Centralized control handle with rational compact layout, easy to operate.
4. It has a normally closed hydraulic chuck which provides convienient and flexible operation.
5. The spindle and winch can operate independently.
6. Big inner diameter spindle, which allows to use thick driving drilling rod.
Technical Specification
Drilling depth: 530m
Hole diameter: 75-300mm
Open hole diameter: 300mm
End hole diameter: 75mm
Drilling rod diameter: Φ60
Drilling angle: 90°-65°
Spindle
Spindle rotary speed: 32-1057r/min
Spindle reverse rotary speed: 29-137r/min
Feeding stroke: 600mm
Spindle inner diameter: 96mm
Spindle lifting capacity: 60kN
Winch
Max. Lifting force with single rope: 0.5-1.9m/s
Lifting speed with single rope: 12.5mm
Lifting capacity with single rope: 30kN
Reel diameter: 300mm
Wire rope length capacity: 65m
Packaging & Shipping
Inudustrial professional export packing, full inspection on all packing details.
Standard wooden case for Gold Drilling Equipment exporting and shock absorbing for better outerior protection.
Considerate interior plastic sheeting protection to prevent from wet and moisture.
FAQ
1. What kind payment method we accept?
T/T, L/C at sight, Western Union, Trade Assurance on Alibaba, Moneygram and Paypal.
2. How can you guarantee payment safety ?
Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt.
3. What kinds of shipment for goods and how long time it takes ?
Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea and other methods. Shipping time is 3-5 days from payment receipt.
4. Does your company ship battery or not ?
Our company can receive battery order and ship to customer normally, except a few special countries.
5. Do you have other items not displayed on your website ?
Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time.
