Product Details
Brand Name: | GOLD | Place of Origin: | China | Model Number: | HZ-180Y |
Type: | Core Drilling Rig | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 Year | Weight: | 955kg | Dimension(L*W*H): | 2400*950*1400mm |
Power Type: | Diesel | Voltage: | 380V | Usage: | Coal |
Condition: | New | Power(W): | 13.2kW |
Product Description

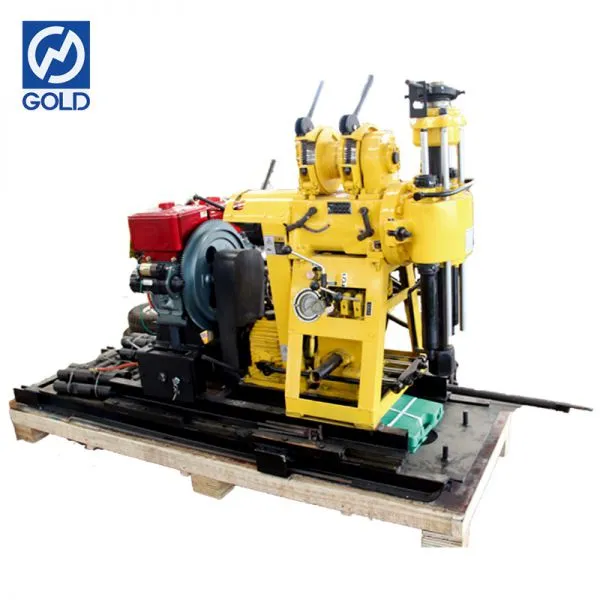

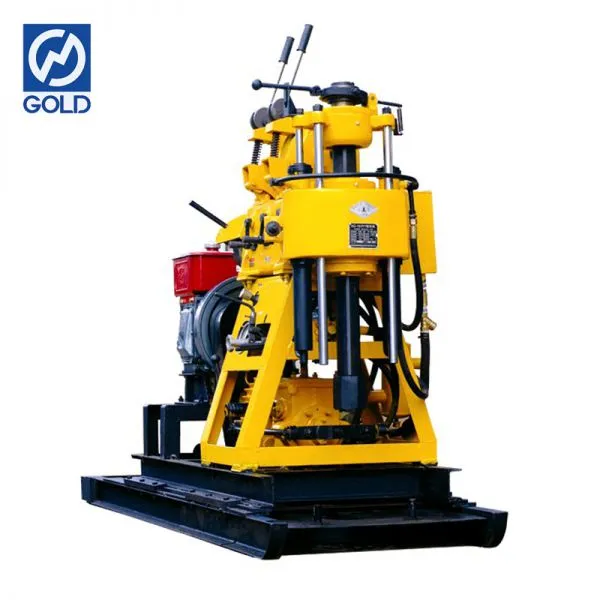

Hydraulic Rock Drilling water well Drilling Rig
Product Introduction
Application
It is suitable for general survey, geological prospecting and exploration, road and building exploration, blast hole and other drilling projects
According to different formation lithology, drilling can be carried out with alloy bits, diamond drill bits and PDC bits.
It is applicable for drilling sand, clay and rock in 2-9 grade hardness.
Main features
Automatic hydraulic feeding structure, improving drilling efficiency and saving labor cost.
Instead of chunk, ball type clamping device is used to make non-stop rod shifting with easy and safe operation.
Winch is installed with shelf to double support the gears, avoiding fierce shock.
Spindle is applied with 4 groups of positioning bearings, to ensure the spindle capable of drilling into complicated formation such as rock and pebble bed.
Conical clutch is applied with national patent technology, with long torque, easy operation and less maintenance.
Specification
Parameter | |
Drilling depth(m) | 180 |
Max.Open hole dia.(mm) | 75-150 |
End hole dia.(mm) | 46-75 |
Drilling rod dia.(mm) | 42, 50 |
Drill angle(°) | 90°-75° |
Matching power(Diesel engine)(kW) | 13.2 |
Weight(kg) | 955 |
Dimension(mm) | 2400*950*1400 |
Spindle | |
Spindle rotary speed(r/min) | 130,300,480,730,830,1045 |
Feeding Stroke(mm) | 450 |
Winch | |
Lifting speed with single rope(kN) | 9.6 |
Lifting speed with single rope(m/s) | 0.35,0.8,1.29,1.96,2.23 |
Reel diameter(mm) | Φ140 |
Wire Rope diameter(mm) | Φ9.3 |
Wire Rope length capacity(m) | 27 |
Drill Tower | |
Rated load(t) | 2 |
Effective height(m) | 6 |
Tower leg diameter(mm) | 73 |
Mud Pump | |
Model | BW95 |
Rated displacement(L/min) | 95 |
ure(Mpa) | 1.2 |
Reciprocating times(times/mine) | 93 |
Suction hose diameter(mm) | Φ51*4500 |
High pressure rubber hose diameter(mm) | Φ32*6000 |
Our Company
Services
With professional management team, technology research, development & design team, sales team and after-sale service team, Gold provides strong service support for pre-sale, in-sale work of customers, In addition, it will provide according to your actual requirements, the most suitable equipment and technical proposal for you as well as complete technology consulting, training and guidance in equipment installation, debugging and maintenance to solve customers’ problem during the process of instrument usage.
FAQ
1. What kind payment method we accept?
T/T, L/C at sight, Western Union, Trade Assurance on Alibaba, Moneygram and Paypal
2. How can you guarantee payment safety ?
Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt
3. What kinds of shipment for goods and how long time it takes ?
Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea and other methods. Shipping time is 3-5 days from payment receipt
4. Does your company ship battery or not ?
Our company can receive battery order and ship to customer normally, except a few special countries
5. Do you have other items not displayed on your website ?
Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time
