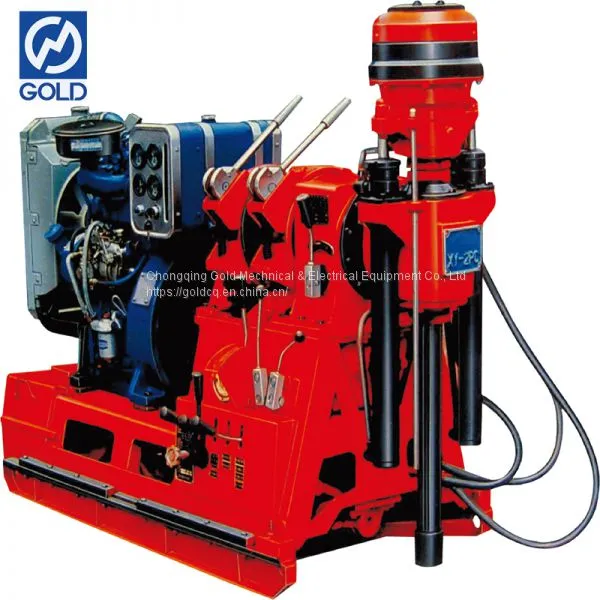

XY-2PC Deep Water Well Drilling Equipment Core Sample Drilling Rig
XY-2PC is used for the tunnel, corridor construction, and regional geological survey. It can also be used in construction, hrdropower engineering, roads, railways, ports other engineering survey and micro pile hole drilling.
Specification
Drilling depth(m) |
150-300 |
|
Spindle rotary speed(r/min) |
Forward |
81,164,298,334,587,1190 |
Reverse |
98,199 |
|
Max. Torque(N.m) |
1110 |
|
Drilling angle |
0 °~ 90 ° |
|
Spindle max.pull force(kN) |
45 |
|
Spindle stroke(mm) |
495 |
|
Hoist max Lift capacity with single rope(kN) |
20 |
|
Spindle inner diameter(mm) |
51*46(Hexagonal hole) |
|
Oil pump |
CB32 gear oil pump |
|
Engine |
Electric motor |
YD180L-8/4, 17/11kW |
Diesel engine |
295D, 13.2kW |
|
Dimension(mm) |
1800*800*1300 |
|
Weight without engine(Kg) |
650 |
|
Chongqing Gold M& E Equipment Co., Ltd. is specializes in manufacturing and development of high-resolution geophysical equipment such as Resistivity Meter, IP instrument, Electrical Resistivity Tomograph, Seismic equipment,magnetometer, borehole camera, well logging and drilling equipment. Also we supply the surveying equipment such as GPS, Total Station, Echo sounder and so on.
Working field
Our instrument is widely used in geological prospecting for mineral resources, engineering exploration, seismic monitoring, groundwater searching, construction, Engineering, Environmental,surveying and other related industries.
Global Marketing System
Gold is granted with self-managerial import & export authority, with products being sold to Australia, South America, Asia, North America, Europe, Africa as well as many countries and regions and occupying steady sales market among similar products. Under continuous support from both new and old customers, Gold ceaselessly goes beyond similar enterprise and moves on with achievements!
Strong Service Support
With professional management team, technology research, development & design team, sales team and after-sale service team, Gold provides strong service support for pre-sale, in-sale work of customers, In addition, it will provide according to your actual requirements, the most suitable equipment and technical proposal for you as well as complete technology consulting, training and guidance in equipment installation, debugging and maintenance to solve customers’ problem during the process of instrument usage.
Inudustrial professional export packing, full inspection on all packing details.
Standard wooden case for Gold Drilling Equipment exporting and shock absorbing for better outerior protection.
Considerate interior plastic sheeting protection to prevent from wet and moisture.
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the service but do not pay the cost of staffs' accommodation and travel expenses
A: Payment=1000USD, 30% T/T in advance ,balance before shippment.
