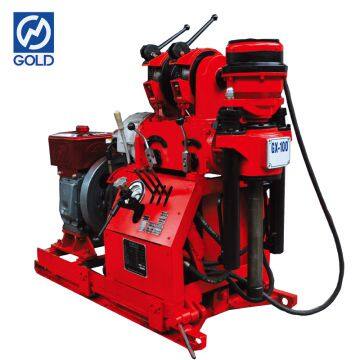

Water well drilling rigHydraulic Exploration Drilling Rig Best price
- 200 Set / Sets per Month
- Chongqing
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 5 days
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Brand Name: | GOLD | Place of Origin: | China | Model Number: | GX-100 |
| Type: | Core Drilling Rig | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 Year | Weight: | 360kg | Dimension(L*W*H): | 1360*620*1080mm |
| Power Type: | Diesel | Voltage: | 380V | Usage: | Coal |
| Condition: | New | Power(W): | 8.8kW |
Product Description
Water well drilling rigHydraulic Exploration Drilling Rig Best price
Main Features
Spindle shaft type mechanical transmission, hydraulic feeding.
Hydraulic shift for hole position.
Three claming modes are optional: hydraulic chuck, manual mechanical centering chuck and cylinder chuck, convenient interchange.
Friction cone winch is operated with percussion drilling method, putting down casing with vibrator.
Novel design, reasonable layout, compact structure, with nice appearance.
Light weight, good detachability, easy to operate.
It is equiooed with 6m A type tower.
Application
Used in railways, highways, bridges, and tunnel construction; industrial and civil engineering construction, hydropower engineering basis for the exploration, and landslide, rock reinforcement anchorage hole on and blasting engineering, Hole drilling for engineering emergency.
Specification
Drilling depth(m) | 50-100 | |
Drilling angle | 0 °~ 90 ° | |
Spindle rotary speed(r/min) | 99,236,378 | |
Max. Torque(N.m) | 620 | |
Spindle max.pull force(kN) | 15 | |
Spindle stroke(mm) | 400 | |
Max. Lifting force with single rope(kN) | 10 | |
Power unit | Diesel engine | Changcai diesel, 2000r/min, 8.8kw |
Electric motor | Y132M-4, 1440r/min, 7.5kw | |
Weight(excluding engine)(Kg) | 360 | |
Dimension(mm) | 1360*620*1080 | |
