Computer controlled electro-hydraulic servo horizontal tensile testing machine
Mould number:GP-LSV/H2000L
Summary description

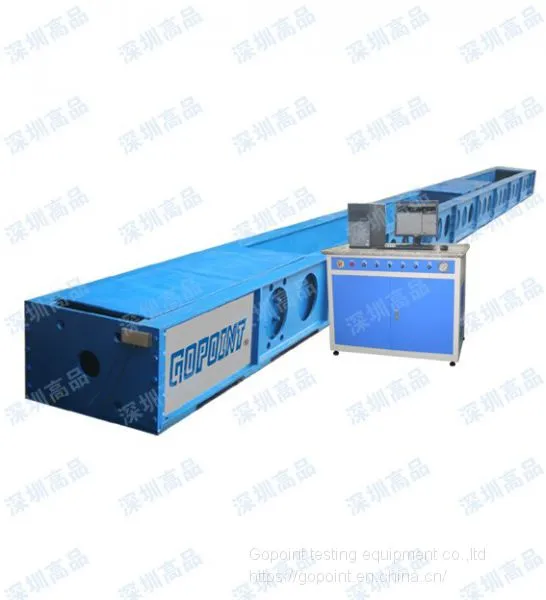

GP-LSV/H2000L Computer controlled electro-hydraulic servo horizontal tensile testing machine
According to the national standards and product testing requirements provided by your company, complete the mechanical performance testing and analysis of the electrical insulators related accessories, raw materials, incoming materials and finished products, and the mechanical performance testing of power line equipment.
Main Specifications:
1. Maximum test force: 500 kN, 1000 kN, 2000 kN
2. Maximum stretching space: 10000, 14000 mm
3. Maximum deformation: 1500 mm
4. Measurement range: 2～2000 kN
5. Range: The whole process is not divided
6. Indication error: better than ±1%
7. Displacement measurement range: 0 ~ 1500 mm
8. Displacement measurement accuracy: better than ±1%F•S
9. Displacement resolution: 0.1 mm
10. Guarantee: no less than 150 hours,
Load accuracy: ±1%
11. Loading speed: 0 ~ 150 mm / min,
No-load speed: >240 mm/min
12. Noise: ≤70dB (any distance from 1m)
