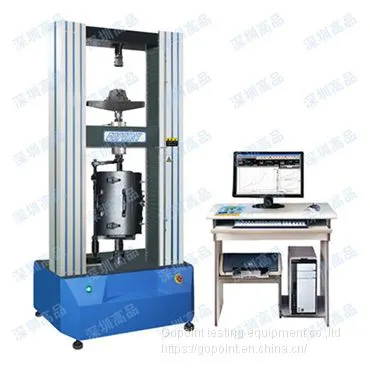

Testing machine Material testing low temperature tester high temperature tester

Mold number : GP-TS2000L/HTD

Summary   description :

Servo control   high/low temperature tester Applicable for wide range of metal Non-metallic material for   tension, bending, shearing,Stripping,Tear Mechanical properties test. With   special fixtures, the use of parts can be tested .according to   GB,JIS,ASTM,DM,ISO etc standard Automatically display mix number of   test.Breaking force ,up  down Yield   Strength,tensile strength,Various Elongation stress,Elongation,Compressive   strength,Bend deflection,Elastic Modulus etc. Equipped with a special fixture   to test the performance of the parts. According to the standard, print out   such as Fm, Rm, Rp, ReH, ReL, Re, A, Z, and E, and load-deformation,   stress-strain, load-time, deformation-time, displacement-time curves .  Suitable for metal, rubber, plastic, spring,   textile, and components testing. It is widely used in the corresponding   industries, research and development, test institutes and training centers   etc.

Capacity option ：200kN、300kN、500kN、600kN

Unit switching：kg、 lb、 N、 kN

Load accuracy：±1%（±0.5%）

Load resolution：1/10,000（1/100,000 ）

Test speed：0.005～1000mm/min

Speed accuracy：±1%（±0.2%）

Deformation measurement accuracy：±0.5%

Effective test space：600mm×800mm

Weight：around 1500kg～2000kg

Dimension：(W×D×H ) around 1200×700×2500   mm

Power supply：3∮,AC380V/3kW~5.5kW
