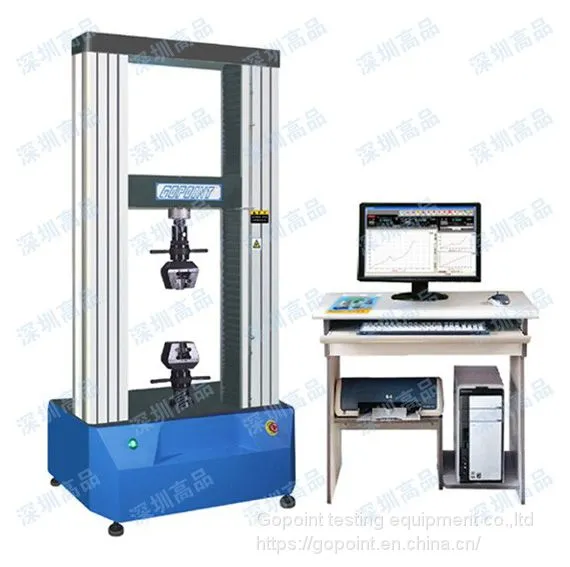

servo-controlled universal material testing machine Tensile tester tension tester

The servo-controlled universal material testing machine can   test and analyze the mechanical properties of various metals, non-metals,   composite materials and their products. Widely used in aerospace,   petrochemical, vehicle, machinery manufacturing and other industries. The   maximum test force value, breaking force value, upper and lower yield   strength, tensile strength, various elongation and stress, compressive   strength, bending deflection, and elasticity can be automatically obtained   according to GB, JIS, ASTM, DM, ISO and other standards. Modulus, Poisson's   ratio and other parameters. Equipped with special fixtures to test the   performance of the parts, according to the standard, Fm, Rm, Rp, ReH, ReL,   Re, A, Z, Ae, μ, E and other mechanical properties and load-deformation,   stress-strain, Load-time, deformation-time, displacement-time curve. It is an   ideal equipment for enterprises, supervision institutions, product testing   and scientific research, and school teaching research.

Technical specifications:

Mould  Number：GP-TS2000M

Capacity option：50kN、100kN

Units switch to ：kg、 lb、 N、 kN

Load accuracy ：±1%（±0.5%）

Load resolution ：1/10,000（1/100,000 ）

Crosshead speed ：0.005～1000mm/min

Speed accuracy ：±1%（±0.2%）

Distortion measuring accuracy:：±0.5%

Available testing space ：560mm×800mm

Net weight:around1200kg～1500kg

Volume: (W×D×H约) 1000×620×2000mm

Power:3∮,AC380V/1.5kW~2kW
