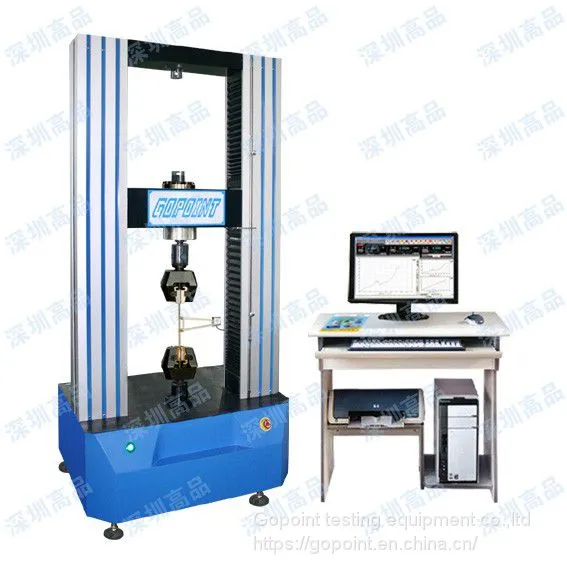

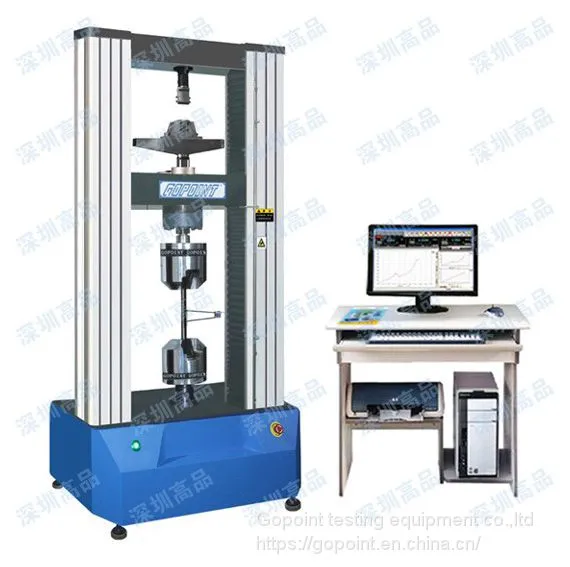

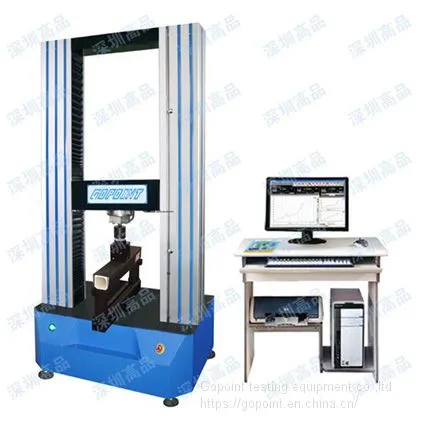

The servo-controlled universal material testing machine (double space) can test and analyze the mechanical properties of various metals, non-metals, composite materials and their products. Widely used in aerospace, petrochemical, vehicle, machinery manufacturing and other industries. The maximum test force value, breaking force value, upper and lower yield strength, tensile strength, various elongation and stress, compressive strength, bending deflection, and elasticity can be automatically obtained according to GB, JIS, ASTM, DM, ISO and other standards. Modulus, Poisson's ratio and other parameters. Equipped with special fixtures to test the performance of the parts, and can print mechanical properties such as Fm, Rm, Rp, ReH, ReL, Re, A, Z, Ae, μ, E, etc. and load-deformation, stress-strain according to the standard. Load-time, deformation-time, displacement-time and other curves. It is an ideal equipment for enterprises, supervision institutions, product testing and scientific research, and school teaching research. |
Technical Parameters:
Capacity option: 50kN, 100kN
Units switch to: kg, lb, N, kN
Load accuracy: ±1%（±0.5%）
Load accuracy: ±1%（±0.5%）
Crosshead speed: 0.005～1000mm/min
Speed accuracy: ±1%（±0.2%）
Distortion measuring accuracy: ±0.5%
Available testing space: 560mm×800mm
Net weight: approx.1500kg～2000kg
Volume: (W×D×H) 1000×620×2000 mm
Power: 3 §AC380V/1.5kW~2Kw
