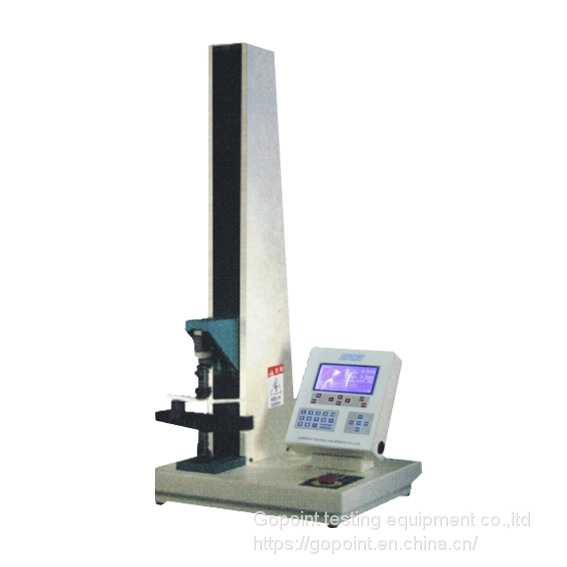

Gopoint tensile tester Universal material testing machine

Mini computer display pull tester

Typical specimens: small parts, reinforced plastics, metals, wires, composites, elastomers, wood products, textiles, biomaterials, paper products, adhesives, foams .

Mini computer display pull tester is a new material testing machine combining electronic technology and mechanical transmission. It has wide and accurate loading speed and measuring range. It has high precision and sensitivity for measurement and control of load, deformation and displacement, and can also load at constant speed. , Automatic control test of constant velocity deformation and constant velocity displacement, and has the functions of low cycle load cycle, deformation cycle and displacement cycle.

This series adopts single space structure and the test space is in the lower space. It is mainly suitable for testing metal and non-metal materials with test load below 5kN. It has three closed-loop control modes of stress, strain and displacement, which can be used to find the maximum force and tensile strength. Strength, flexural strength, compressive strength, modulus of elasticity, elongation at break, yield strength, etc. Test and provide test data according to GB and ISO, JIS, ASTM, DIN and other international standards.

The main function:

It is used for tensile, compression, bending, shearing, peeling, tearing and other tests of various metal and non-metallic materials, as well as special tests for some products.

Micro-computer tensile testing machine is suitable for rubber products such as rubber hose, tape, sole, plastic, film, acrylic, FRP, ABX, EVA, PV, aluminum-plastic pipe waterproof material, textile fiber, wire and cable, paper, metal foil, tape, Wire, wire, wood, food, packaging materials, etc., tensile, compression, tearing, peeling and other mechanical properties test analysis, according to GB, ISO, JIS, ASTM, DIN and other standards to automatically determine the tensile strength, trace plasticity Deformation index, elongation after fracture, constant elongation stress, constant stress elongation and other parameters and print the corresponding performance indicators, curves, is the ideal equipment for enterprise product quality inspection

Technical specifications:

Capacity(optional) :5N～1kN
Unit(Switchable): kg、 lb、 N、 kN、
Load Accuracy: ±1%／±0.5%

Load Resolution: 1/10,000／1/100,000
Test Speed: 0.005～1000mm/min
Speed Accuracy: ±1%／±0.2%
Accuracy of  strin gauge: ±0.5%
Test space : 600mm
Weight: around 60kg
Size： W×D×H，around 500×400×1200 mm
Power :1∮,AC220V/100W~750W
