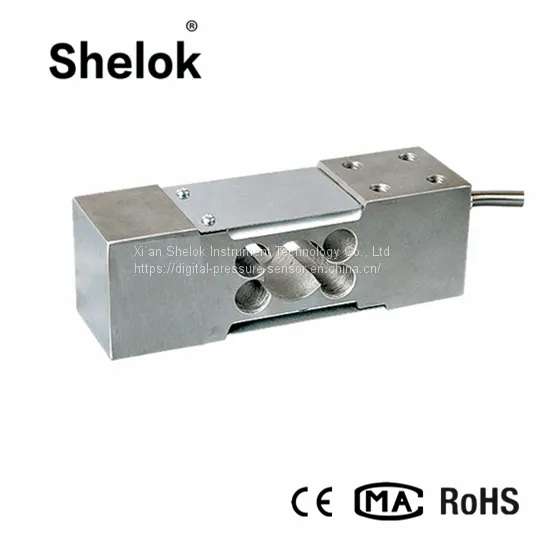

Description of parallel planar prices of 75kg 120kg 250kg beam load cell 50kg 75kg 350kg 400kg
The load sensor elastomer adopts a shearing or bending cantilever beam structure, one end is fixed, one end is stressed, the height is low, and the structural strength is high, and can be used for carrying and measuring various tensile or compressive forces.
Features of parallel planar prices of 75kg 120kg 250kg beam load cell 50kg 75kg 350kg 400kg
It has the characteristics of dustproof seal, wide measuring range, high precision, stable and reliable performance, convenient installation and use.
Specification of parallel planar prices of 75kg 120kg 250kg beam load cell 50kg 75kg 350kg 400kg
| Sensitivity | 2.0±0.05mV/V | Operating temperature | -20~80℃ |
| Nonlinearity | ±0.03%F.S | Input resistance | 350±20Ω |
| Hysteresis | ±0.03%F.S | Output resistance | 350±5Ω |
| Repeatability | ±0.02%F.S | Safe overload | 150%F.S |
| Creep | ±0.03%F.S/30min | Zero output | ±1%F.S |
| Insulation Resistance | ≥5000MΩ | Reference excitation voltage | 10-15V |
| Zero temperature coefficient | ±0.03%F.S/10℃ | Sensitivity temperature coefficient | ±0.03%F.S/10℃ |
Drawings of parallel planar prices of 75kg 120kg 250kg beam load cell 50kg 75kg 350kg 400kg
CHBL
Applications of parallel planar prices of 75kg 120kg 250kg beam load cell 50kg 75kg 350kg 400kg
Applicable to electronic scales, weighing machines and other force measurement, weighing industrial automation measurement and control system.
