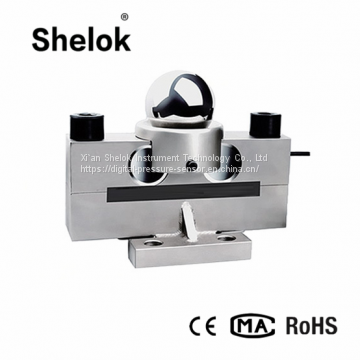

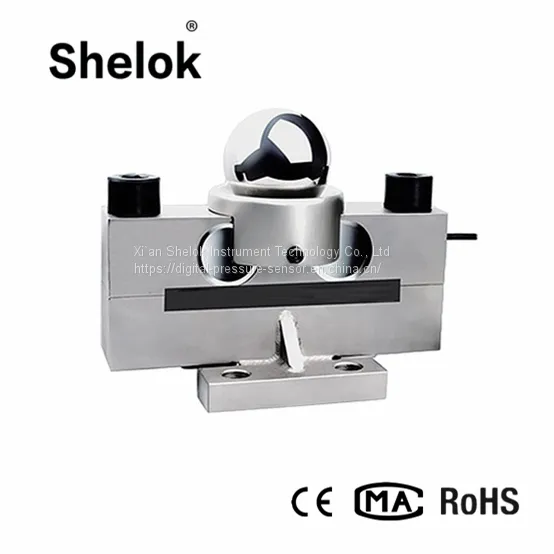

Description of weigh bridge type double ended shear beam load cell 10t 15t 20t 25t 30t 40t
The load cell adopts double shear beam structure, and the combined pressure head can adjust the center automatically.
Features ofweigh bridge type double ended shear beam load cell 10t 15t 20t 25t 30t 40t
It has the characteristics of anti-bias load and high precision.
Specification of weigh bridge type double ended shear beam load cell 10t 15t 20t 25t 30t 40t
Range |
t |
10,15,20,25,30,40 |
Sensitivity |
MV/V |
2±0.002 |
Repeatability |
%R.C. |
≤0.01 |
Hysteresis |
%R.C. |
≤0.02 |
Nonlinearity |
%R.C. |
≤0.02 |
Comprehensive precision |
%R.C. |
≤0.02 |
Zero output |
%R.C. |
≤1 |
Operating temperature |
℃ |
-20~+70 |
Input resistance |
Ω |
380±300 |
Output resistance |
Ω |
352±3 |
Reference excitation voltage |
V(DC/AC) |
9~12 |
Max excitation voltage |
V(DC/AC) |
15 |
Safe overload |
%R.C. |
150 |
Max overload |
%R.C. |
150 |
Ingress protection |
IP68 |
|
Cable length |
m |
5m |

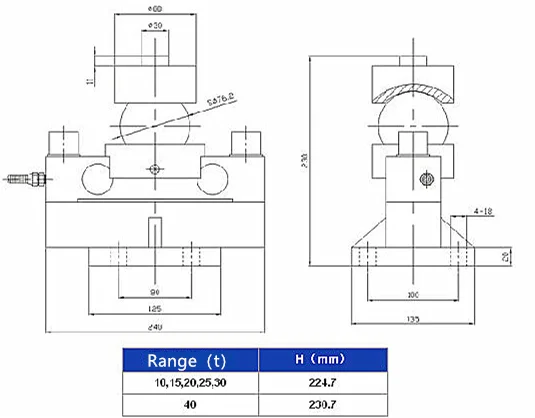

Drawings of weigh bridge type double ended shear beam load cell 10t 15t 20t 25t 30t 40t
CHBQ1
Applications of weigh bridge type double ended shear beam load cell 10t 15t 20t 25t 30t 40t
Suitable for truck scale, railway scale and other electronic weighing device.
