IJ Chemical Alkali Centrifugal Stainless Steel Pump

IJ Chemical Alkali Centrifugal Stainless Steel Pump thumbnail-1
IJ Chemical Alkali Centrifugal Stainless Steel Pump thumbnail-2

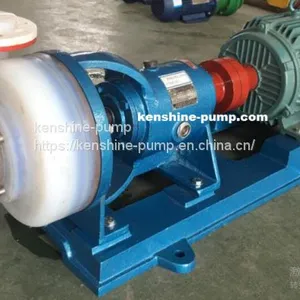

IJ Chemical Alkali Centrifugal Stainless Steel Pump thumbnail-3

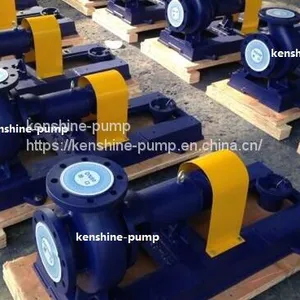

IJ Chemical Alkali Centrifugal Stainless Steel Pump thumbnail-4

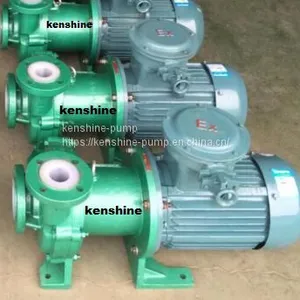

IJ Chemical Alkali Centrifugal Stainless Steel Pump thumbnail-5
IJ Chemical Alkali Centrifugal Stainless Steel Pump photo-1
IJ Chemical Alkali Centrifugal Stainless Steel Pump photo-2

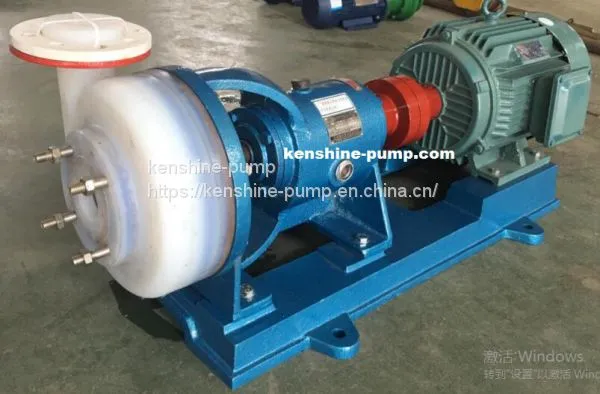

IJ Chemical Alkali Centrifugal Stainless Steel Pump photo-3

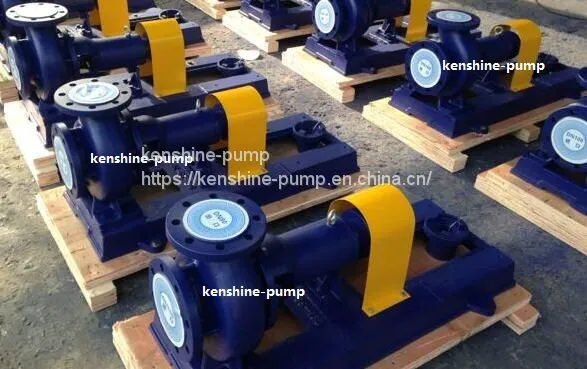

IJ Chemical Alkali Centrifugal Stainless Steel Pump photo-4

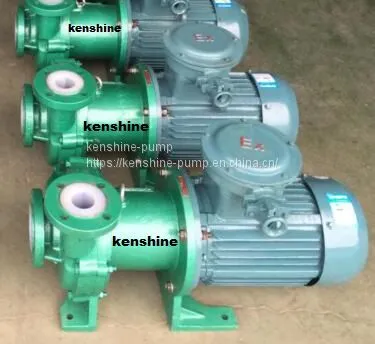

IJ Chemical Alkali Centrifugal Stainless Steel Pump photo-5
US$ 650 - 10000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine pump
Place of Origin:
China
Model Number:
IJ65-50-160
Contact Supplier Request Quote Chat Now
Kenshine-pump
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name kenshine pump
Place of Origin China
Model Number IJ65-50-160
Application Other, Chemical liquid transfer
Fuel Other, electric motor
Power Electric
Usage Other, chemical fluids transfer
Theory Centrifugal Pump
Standard or Nonstandard Standard
Structure Other, centrifugal horizontal
Pressure Low Pressure

IJ Chemical resistant centrifugal alkali pump
A: Characteristics:
Reliable and Steady running, continuous working for 24 hours, better design of cantilever, small vibration, low noise. Seal type: mechanical seal, dynamic seal, gland packing seal etc.(No leakage and long life).
Summary:
IJ chemical resistant centrifugal alkali pump is improved on the base of IH model single stage single suction chemical industry pump according to the standard ISO2858-1975. The IJ chemical resistant centrifugal alkali pump is used to transfer the corrosive liquid with solid content less than 5% and suspension grain less than 3mm. Pump discharge pressure is up to 1.6MPA, Working temperature: -20 to 180 Degree Celsius.
B. Application fields:
Alkali industry:
Soda and ammonia brine mother liquid from ammonia-hydrazine production, caustic soda with normal temperature from Chlorine-alkali production, chlorine products and chlorate, hypochlorite.
Nonferrous metallurgy:
electrolyte liquid from Electrolytic copper and nickel, acid mist liquid from production of cobalt, slurry from production of zinc ore, vanadate ammonia from production of vanadium, acid and sulfuric acid from production of gold etc.
Iron and steel industry:
Electroplating, pickling, waste acid treatment
Acid industry:
Nitric acid, sulfuric acid, hydrochloric acid, phosphoric acid, acetic acid, etc.Petrochemical refining acetaldehyde, alkyl manufacturing.
Synthetic fiber and plastics industry:
Dilan, PVC production, textile, printing and dyeing industry.
Papermaking industry:
Transport of pulp cooking and bleaching fluids.
Fertilizer industry:
Urea, nitric acid production.
Pharmaceutical industry:
Pharmaceutical and pesticide production.
Environmental protection:
Transportation of acid mist solution.

C. Pump materials:
SS304,SS304L, SS316,SS316L,Hastelloy alloy B and other alloy steel etc
2Cr13,0Cr18Ni9,1Cr18Ni9,0Cr18Ni9Ti,1Cr18Ni9Ti,0Cr18Ni12Mo2Ti,40Cr, 1Cr18Ni12Mo2Ti, Ti(Titanium,Monel,00Cr17NI12Mo2Ti, HastelloyB alloy,0Cr25Ni20,F5 series alloy,20alloy steel,0Cr25Ni6Mo3Cu2Mn2Si

Pump Pump inlet Pump outlet Flow Head Motor Model   And Power(KW) Impeller Dia.(mm)
Model mm mm (m3/h) (m)
IJ50-32-125 50 32 12.5 20 Y90L-2 2.2 125
IJ50-32-125 50 32 6.3 5 Y801-4 0.55 125
IJ50-32-160 50 32 12.5 32 Y100L-2 3 160
IJ50-32-160 50 32 6.3 8 Y801-4 0.55 160
IJ50-32-200 50 32 12.5 50 Y132S1-2 5.5 200
IJ50-32-200 50 32 6.3 12.5 Y802-4 0.75 200
IJ50-32-250 50 32 12.5 80 Y160M1-2 11 250
IJ50-32-250 50 32 6.3 20 Y90S-4 1.5 250
IJ65-50-125 65 50 25 20 Y100L-2 3 125
IJ65-50-125 65 50 12.5 50 Y901-4 0.55 160
IJ65-50-160 65 50 25 32 Y132S1-2 0.5 160
IJ65-50-160 65 50 12.5 5 Y802-4 0.75 200
IJ65-40-200 65 40 25 50 Y132S2-2 7.5 200
IJ65-40-200 64 40 12.5 12.5 Y90S-4 1.1 250
IJ65-40-250 64 40 25 80 Y160M2-2 15 250
IJ65-40-250 65 40 12.5 20 Y100L1-4 2.2 125
IJ80-65-125 80 65 50 20 Y132S1-2 5.5 125
IJ80-65-125 80 65 25 5 Y802-4 0.75 160
IJ80-65-160 80 65 50 32 Y132S2-2 7.5 160
IJ80-65-160 80 65 25 8 Y90L-4 1.5 200
IJ80-50-200 80 50 50 50 Y160M2-2 15 200
IJ80-50-200 80 50 25 12.5 Y100L1-4 2.2 250
IJ80-50-250 80 50 50 80 Y180M-2 22 315
IJ80-50-250 80 50 25 20 Y100L2-4 3 315
IJ80-50-315 80 50 50 125 Y200L2-2 37 125
IJH80-50-315 80 50 25 32 Y132S-4 5.5 125
IJ100-80-125 100 80 100 20 Y160M1-2 11 160
IJ100-80-125 100 80 50 5 Y90L-4 1.5 160
IJ100-80-160 100 80 100 32 Y160M2-2 15 200
IJ100-80-160 100 80 50 8 Y100L1-4 2.2 200
IJ100-65-200 100 65 100 50 Y180M-2 22 250
IJ100-65-200 100 65 50 12.5 Y112M-4 4 250
IJ100-65-250 100 65 100 80 Y200L2-4 37 315
IJ100-65-250 100 65 50 20 Y132S-4 5.5 315
IJ100-65-315 100 65 100 125 Y280S-2 75 200
IJ100-65-315 100 65 50 32 Y160M-4 11 200
IJ125-100-200 125 100 200 50 Y225M-2 45 250
IJ125-100-200 125 100 100 12.5 Y132M-4 7.5 250
IJ125-100-250 125 100 200 80 Y280S-2 75 315
IJ125-100-250 125 100 100 20 Y160M-4 11 400
IJ125-100-315 125 100 100 32 Y160L-4 15 250
IJ125-100-400 125 100 100 50 Y200L-4 30 315
IJ150-125-250 150 125 200 20 Y180M-4 18.5 250
IJ150-125-315 150 125 200 32 Y200L-4 30 315
IJ150-125-400 150 125 200 50 YB250M-4 55 400
IJ200-150-250 200 150 400 20 YB225S-4 37 250
IJ200-150-315 200 150 400 32 YB225M-4 45 315
IJ200-150-400 200 150 400 50 YB280S-4 75 400


Product Tags: centrifugal pump , chemical pump , stainless steel pump , alkali pump , transfer pump , circulating pump
