Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > FSB Fluoroplastic Alloy Chemical Centrifugal Pump

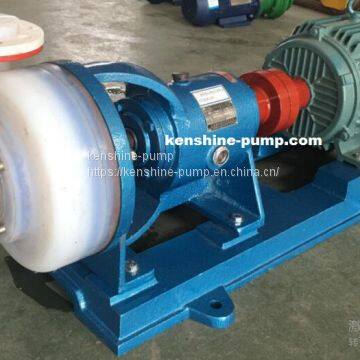

FSB Fluoroplastic Alloy Chemical Centrifugal Pump
US$ 650 - 6000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
80FSB-32
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
FP Series Polypropylene Reinforced Plastic Centrifugal Transfer PumpUS$ 150 - 1000MOQ: 1 Unit -
IH Horizontal Chemical Centrifugal Pump Corrosive Resistant PumpUS$ 850 - 10000MOQ: 1 Set
-
CZ Stainless Steel Chemical Process Pump Petrochemical Centrifugal PumpUS$ 650 - 10000MOQ: 1 Set
-
ZA,ZAO,ZAE Petrochemical Centrifugal PumpUS$ 1500 - 10000MOQ: 1 Set
-
FPG Vertical Reinforced Polypropylene Centrifugal PumpUS$ 300 - 1500MOQ: 1 Set
Brand Name
kenshine-pump
Place of Origin
China
Model Number
80FSB-32
Application
Other, Chemical liquid transfer
Fuel
Other, electric motor
Power
Electric
Usage
Other, chemical fluids
Theory
Centrifugal Pump
Standard or Nonstandard
Standard
Structure
Other, horizontal
Pressure
Low Pressure
|
FSB Series fluoroplastic alloy chemical centrifugal pump has two connections between the pump and motor(FSB-L and FSB-D). FSB-L is for shaft couple connection between the pump and motor and FSB-D is for closed couple between the pump and motor. Pump casings and impellers and mechanical seals for two connection can be exchanged in application have the advantages such as excellent corrosion resistance, high mechanical strength, no aging and no toxin decompositionFSB Series pumps are widely used to transfer liquids in petroleum, chemical, pharmaceutical, pesticide, pickling, dye, paint, smelting, paper making, electroplating, food and other industries. |
Parameter:
| Model | Q(m3/h) | Head(m) | Caliber (mm) | Power (Kw) | Speed | NPSH | Efficiency | ||
| Inlet | Outlet | Shaft | Motor | (r/min) | (m) | (%) | |||
| 25FSB-10L | 3.6 | 10 | 25 | 25 | 0.69 | 1.5 | 2900 | 3 | 35 |
| 25FSB-20L | 3.6 | 20 | 25 | 25 | 0.97 | 1.5 | 2900 | 3 | 35 |
| 25FSB-25L | 3.6 | 25 | 25 | 25 | 1.25 | 1.5 | 2900 | 3 | 35 |
| 40FSB-15L | 5 | 15 | 40 | 32 | 0.51 | 3 | 2900 | 3 | 40 |
| 40FSB-20L | 10 | 20 | 40 | 32 | 1.16 | 3 | 2900 | 3 | 42 |
| 40FSB-30L | 10 | 30 | 40 | 32 | 1.18 | 3 | 2900 | 3 | 52 |
| 40FSB-40L | 6.3 | 40 | 40 | 25 | 3.1 | 4 | 2900 | 3 | 40 |
| 40FSB-50L | 6.3 | 50 | 40 | 25 | 3.55 | 4 | 2900 | 3 | 52 |
| 40FSB-80L | 6.3 | 80 | 40 | 25 | 7.11 | 7.5 | 2900 | 3 | 52 |
| 50FSB-20L | 12.5 | 20 | 50 | 32 | 1.49 | 3 | 2900 | 3.5 | 55 |
| 50FSB-25L | 12.5 | 25 | 50 | 32 | 1.86 | 3 | 2900 | 3.5 | 55 |
| 50FSB-30L | 15 | 30 | 50 | 32 | 1.9 | 3 | 2900 | 3.5 | 54 |
| 50FSB-40L | 12.5 | 40 | 50 | 32 | 4.3 | 7.5 | 2900 | 3 | 39 |
| 50FSB-50L | 12.5 | 50 | 50 | 32 | 5.8 | 7.5 | 2900 | 3 | 39 |
| 65FSB-32L | 25 | 32 | 65 | 50 | 4.8 | 5.5 | 2900 | 2 | 45 |
| 65FSB-40L | 25 | 40 | 65 | 40 | 7.2 | 11 | 2900 | 3 | 52 |
| 65FSB-50L | 25 | 50 | 65 | 40 | 8.6 | 11 | 2900 | 3.5 | 52 |
| 65FSB-80L | 25 | 80 | 65 | 40 | 14.1 | 18.5 | 2900 | 4.5 | 50 |
| 80FSB-20L | 50 | 20 | 80 | 65 | 4.7 | 5.5 | 2900 | 3 | 45 |
| 80FSB-25L | 50 | 25 | 80 | 65 | 5.7 | 7.5 | 2900 | 3 | 50 |
| 80FSB-30L | 50 | 30 | 80 | 65 | 6.9 | 7.5 | 2900 | 3.5 | 59 |
| 80FSB-40L | 50 | 40 | 80 | 50 | 10.2 | 11 | 2900 | 3.5 | 48 |
| 80FSB-50L | 50 | 50 | 80 | 50 | 11.9 | 15 | 2900 | 3.5 | 57 |
| 80FSB-55L | 50 | 55 | 80 | 50 | 13.5 | 18.5 | 2900 | 4 | 50 |
| 80FSB-80L | 50 | 80 | 80 | 50 | 24.6 | 30 | 2900 | 4 | 66 |
| 100FSB-20L | 100 | 20 | 100 | 80 | 8.6 | 11 | 2900 | 3.5 | 68 |
| 100FSB-32L | 100 | 32 | 100 | 80 | 11.9 | 15 | 2900 | 3.5 | 68 |
| 100FSB-40L | 100 | 40 | 100 | 65 | 21.3 | 30 | 2900 | 4.5 | 73 |
| 100FSB-50L | 100 | 50 | 100 | 65 | 23.9 | 30 | 2900 | 4.5 | 73 |
| 125FSB-32L | 160 | 32 | 125 | 80 | 24.15 | 30 | 2900 | 5 | 70 |
| 125FSB-50L | 200 | 50 | 125 | 100 | 39.2 | 55 | 2900 | 5 | 65 |
| 150FSB-32L | 150 | 32 | 200 | 125 | 35.3 | 45 | 1450 | 5 | 60 |
| 40FSB-15D | 5 | 15 | 40 | 32 | 0.51 | 3 | 2900 | 3 | 40 |
| 40FSB-20D | 10 | 20 | 40 | 32 | 1.16 | 3 | 2900 | 3 | 42 |
| 40FSB-30D | 10 | 30 | 40 | 32 | 1.18 | 3 | 2900 | 3 | 52 |
| 50FSB-20D | 12.5 | 20 | 50 | 32 | 1.49 | 3 | 2900 | 3.5 | 55 |
| 50FSB-25D | 12.5 | 25 | 50 | 32 | 1.86 | 3 | 2900 | 3.5 | 55 |
| 50FSB-30D | 15 | 30 | 50 | 32 | 1.9 | 3 | 2900 | 3.5 | 54 |
| 65FSB-32D | 25 | 32 | 65 | 50 | 3.61 | 5.5 | 2900 | 3.5 | 65 |
| 80FSB-25D | 42 | 25 | 80 | 65 | 3.8 | 7.5 | 2900 | 3.5 | 67 |
| 80FSB-30D | 50 | 30 | 80 | 65 | 6.82 | 7.5 | 2900 | 3.5 | 68 |
