TBZB Stainless Steel Heat Preservation Self Priming Pump

TBZB Stainless Steel Heat Preservation Self Priming Pump thumbnail-1
TBZB Stainless Steel Heat Preservation Self Priming Pump thumbnail-2

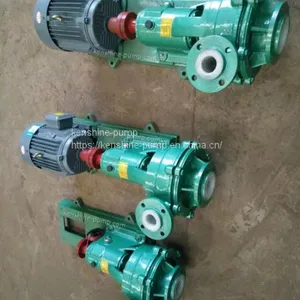

TBZB Stainless Steel Heat Preservation Self Priming Pump thumbnail-3

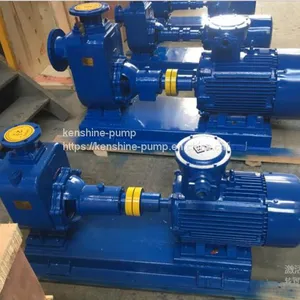

TBZB Stainless Steel Heat Preservation Self Priming Pump thumbnail-4
TBZB Stainless Steel Heat Preservation Self Priming Pump thumbnail-5
TBZB Stainless Steel Heat Preservation Self Priming Pump photo-1

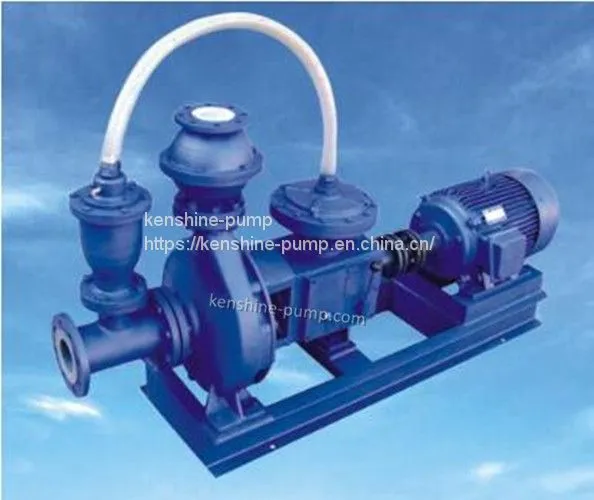

TBZB Stainless Steel Heat Preservation Self Priming Pump photo-2

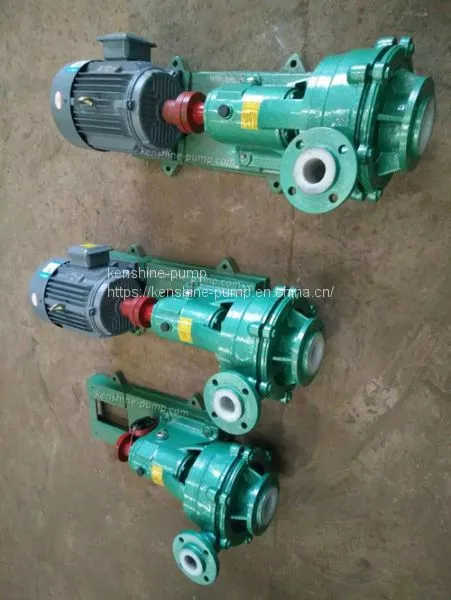

TBZB Stainless Steel Heat Preservation Self Priming Pump photo-3
TBZB Stainless Steel Heat Preservation Self Priming Pump photo-4
TBZB Stainless Steel Heat Preservation Self Priming Pump photo-5
US$ 850 - 10000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
TBZB200-150-400
Contact Supplier Request Quote Chat Now
Kenshine-pump
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name kenshine-pump
Place of Origin China
Model Number TBZB200-150-400
Application Other, Chemical liquid transfer
Fuel Other, electric motor
Power Electric
Usage Other, chemical fluid transfer
Theory Centrifugal Pump
Standard or Nonstandard Standard
Structure Single-stage Pump
Pressure Low Pressure

TBZB Stainless steel heat preservatin self priming pump is made of stainless steel material as the single stage single suction centrifugal pump

TBZB heat preservation self priming pump is suitable for the chemical fluids which is easy to solidify and crystal at normal temperature, the medium which need to be cooled with vaporization point and the corrosive liquids with temperature -80 to 250 degree Celsius in high and cold plateau (high freezing or crystallizing point.  Self priming height for the pump is up 8 meters.

Model Flow Head Speed Power Efficiency NPSH
(m3/h) (L/S) (m) (r/min) Shaft Motor （%） m
TBZB32-20-125 3.2 0.88 20 2900 0.48 According  the density of pumped liquids 35 5
TBZB32-20-160 3.2 0.88 32 0.93
30 3.5
TBZB32-20-200 3.2 0.88 50 1.62
27 4
TBZB32-20-250 3.2 0.88 80 4.1
17 4.5
TBZB40-20-125 6.3 1.74 20 0.66
52 5
TBZB40-20-160 6.3 1.74 32 1.53
36 3.5
TBZB40-20-200 6.3 1.74 50 2.52
34 3.5
TBZB40-20-250 6.3 1.74 80 5.3
26 4.5
TBZB50-32-125 7.5 2.08 23 2900 1.09
43 2
12.5 3.47 20 1.33
51 2
15 4.17 18 1.5
49 2.5
TBZB50-32-125A 6.8 1.89 18.8 2900 0.87
40 2
11.3 3.14 16.4 1.01
50 2
13.6 4.17 14.7 1.16
47 2.5
TBZB50-32-125 3.75 1.04 5.75 1450 0.16
36 1
6.3 1.74 5 0.19
45 1
7.5 2.08 4.5 0.21
44 1.2
TBZB50-32-125A 3.4 0.94 4.7 1450 0.13
33.3 1
5.7 1.59 4.1 0.149
43 1
6.8 1.89 3.7 0.163
42 1.2
TBZB50-32-160 7.5 2.08 34.5 2900 2.13
33 2
12.5 3.47 32 2.37
46 2
15 4.17 30 2.45
50 2.5
TBZB50-32-160A 6.8 1.89 28.5 2900 1.76
30 2
11.3 3.14 26.4 1.85
44 2
13.6 3.78 24.8 1.91
48 2.5
TBZB50-32-160 3.75 1.04 8.6 1450 0.3
29 1
6.3 1.74 8 0.34
40 1
7.5 2.08 7.5 0.36
43 1.2
TBZB50-32-160A 3.4 0.94 7.1 1450 0.253
25.9 2
5.7 1.59 6.6 0.277
37.1 2
6.8 1.89 6.2 0.28
41 2.5
TBZB50-32-200 7.5 2.08 51.8 2900 3.78
28 2
12.5 3.47 50 4.36
39 2
15 4.17 48 4.56
43 2.5
TBZB50-32-200A 6.8 1.89 42.7 2900 3.16
25 2
11.3 3.14 41 3.24
38 2
13.6 3.78 39.5 3.57
41 2.5
TBZB50-32-200 3.75 1.04 12.9 1450 0.57
23 1
6.3 1.74 12.5 0.65
33 1
7.5 2.08 12 0.68
36 1.2
TBZB50-32-200A 3.4 0.94 10.6 1450 0.488
20 1
5.7 1.59 10.3 0.516
31 1
6.8 1.89 9.9 0.54
34 1.2
TBZB50-32-250 7.5 2.08 82 2900 7.28
23 2
12.5 3.47 80 8.25
33 2
15 4.17 78.5 8.79
36.5 2.5
TBZB50-32-250B 7 1.94 71.9 2900 6.84
20 2
11.7 3.25 70 6.97
32 2
14 3.89 68.8 7.71
34 2.5
TBZB50-32-250 3.75 1.04 20.5 1450 1.23
17 1
6.3 1.74 20 1.27
27 1
7.5 2.08 6.2 1.29
31 1.2
TBZB50-32-250A 3.51 0.98 18 1450 1.12
15.4 1
5.9 1.64 17.5 1.125
25 1
7.02 1.95 17.2 1.18
27.9 1.2
TBZB65-50-125 15 4.17 21.3 2900 1.85
47 2
25 6.94 20 2.2
62 2
30 8.33 18.6 2.4
63 2.5
TBZB65-50-125A 13.6 3.78 17.6 2900 1.48
44 2
22.7 6.31 16.5 1.67
61 2
27.3 7.58 15.4 1.91
59.9 2.5
TBZB65-50-125 7.5 2.08 5.4 1450 0.25
44 1
12.5 3.47 5 0.31
55 1
15 4.17 4.5 0.33
56 1.2
TBZB65-50-125A 6.8 1.89 4.5 1450 0.23
41 1
11.3 3.14 4.1 0.234
54 1
13.6 3.78 3.7 0.258
53 1.2
TBZB65-50-160 15 4.17 34.2 2900 3.18
44 2
25 6.94 32 3.82
57 2
30 8.33 30 4.15
59 2.5
TBZB65-50-160A 13.6 3.78 28.4 2900 2.56
41 2
22.7 6.31 26.5 2.93
56 2
27.3 7.58 24.8 3.29
56 2.5
TBZB65-50-160 7.5 2.08 8.55 1450 0.45
39 1
12.5 3.47 8 0.53
51 1
15 4.17 7.5 0.58
52.5 1.2
TBZB65-50-160A 6.8 1.89 7.09 1450 0.37
35.5 1
11.3 3.14 6.6 0.41
49.6 1
13.6 3.78 6.2 0.46
49.9 1.2
TBZB65-40-200 15 4.17 53.2 2900 5.3
41 2
25 6.94 50 6.55
52 2
30 8.33 47.6 7.27
53.5 2.5
TBZB65-40-200A 13.6 3.78 43.9 2900 4.28
38 2
22.7 6.31 41 5.07
50 2
27.3 7.58 39.3 5.73
51 2.5
TBZB65-40-200 7.5 2.08 13.3 1450 0.78
35 1
12.5 3.47 12.5 0.93
46 1
15 4.17 11.9 1.02
47.5 1.2
TBZB65-40-200A 6.8 1.89 11 1450 0.64
31.8 1
11.3 3.14 10.3 0.72
44 1
13.6 3.78 9.8 0.81
44.8 1.2
TBZB65-40-250 15 4.17 81.2 2900 9.76
34 2
25 6.94 80 11.84
46 2
30 8.33 78.4 12.8
50 2.5
TBZB65-40-250A 14 3.89 71 2900 8.73
31 2
23.4 6.5 74.8 10.6
45 2
28 7.78 68.6 11.13
47 2.5
TBZB65-40-250B 13.2 3.67 62.8 2900 7.29
31 2
22 6.11 61.8 8.42
44 2
26.4 7.33 53 8.45
45 2.5
TBZB65-40-250 7.5 2.08 20.3 1450 1.48
28 1
12.5 3.47 20 1.75
39 1
15 4.17 19.6 1.86
43 1.2
TBZB65-40-250A 7 1.94 17.8 1450 1.35
43 1
11.7 3.25 17.5 1.47
25 1
14 3.89 17.2 1.64
37.9 1.2
TBZB65-40-315 15 4.17 126.8 2900 18.5
40 2
25 6.94 125 21.8
28 2
30 8.33 124 23.8
39 2.5
TBZB65-40-315A 14 3.89 111.2 2900 18.1
42.5 2
23.4 6.5 109.5 18.36
25 2
28 7.78 108.8 22.12
38 2.5
TBZB65-40-315B 13.2 3.67 98 2900 14.69
40 2
22 6.11 96.5 15.63
24 2
26.4 7.33 95.9 17.67
37 2.5
TBZB65-40-315 7.5 2.08 32.4 1450 3
39 1
12.5 3.47 32 3.3
22 1
15 4.17 31.7 3.5
33 1.2
TBZB65-40-315A 7 1.94 28.4 1450 2.84
37 1
11.7 3.25 28 2.78
31 1
14 3.89 27.8 3.12
34 1.2
TBZB80-65-125 30 8.33 23.2 2900 3.16
60 3
50 13.9 20 3.95
69 3
60 16.7 17.6 4.29
67 4
TBZB80-65-125A 27.2 7.56 19.1 2900 2.48
57 3
45.3 12.58 16.5 3.04
67 3
54.4 15.12 14.5 3.36
64 4
TBZB80-65-125 15 4.17 5.8 1450 0.44
54 1.5
25 6.94 5 0.53
64 1.5
30 8.33 4.4 0.58
62 1.7
TBZB80-65-125A 13.6 3.78 4.8 1450 0.349
51 1.5
22.6 6.28 4.1 0.407
62 1.5
27.2 7.56 3.6 0.452
59 1.7
TBZB80-65-160 30 8.33 36 2900 5.16
57 2
50 13.9 32 6.5
67 2.3
60 16.7 28.4 7.14
65 3.3
TBZB80-65-160A 27.2 7.56 29.7 2900 4.08
54 2
45.4 12.6 26.4 5.02
65 2.3
54.4 15.12 23.4 5.39
62 2.3
TBZB80-65-160 15 4.17 9 1450 0.74
50 1.1
25 6.94 8 0.88
62 1.1
30 8.33 7.2 0.95
62 1.3
TBZB80-65-160A 13.6 3.78 7.4 1450 0.58
47.3 1.1
22.7 6.31 6.6 0.68
60 1.1
27.2 7.56 5.9 0.74
59 1.3
TBZB80-50-200 30 8.33 55.2 2900 8.5
53 2
50 13.9 50 10.8
63 2.5
60 16.7 45.2 11.9
62 3.2
TBZB80-50-200A 27.2 7.56 45.4 2900 6.73
50 2
45.3 12.58 41 8.29
61 2.5
54.4 15.12 37.2 9.35
59 3.2
TBZB80-50-200 15 4.17 13.5 1450 1.25
44 1.1
25 6.94 12.5 1.49
57 1.1
30 8.33 11.5 1.6
58 1.3
TBZB80-50-200A 13.6 3.78 11.1 1450 1
41 1.2
22.7 6.31 10.3 1.135
56.1 1.2
27.2 7.56 9.5 1.28
55 1.4
TBZB80-50-250 30 8.33 84 2900 16
43 2.5
50 13.9 80 20.6
53 2.5
60 16.7 75 12.7
54 2.5
TBZB80-50-250A 28.14 7.82 73.55 2900 13.2
42.7 2.5
46.9 13.03 70.5 16.1
56 2.5
56.28 15.63 67.4 17.8
58.03 3
TBZB80-50-250B 26.4 7.33 64.8 2900 11.4
40.86 2.5
44 12.22 62.2 13.8
54 2.5
52.8 14.67 60 15
50 3
TBZB80-50-250 15 4.17 21 1450 2.15
51 2
25 6.94 20 2.72
50 1.2
30 8.33 18.8 3.01
51 1.2
TBZB80-50-250A 14.04 3.9 18.2 1450 1.66
42 1.5
23.4 6.5 17.6 2.25
50 1.2
28.08 7.8 16.7 2.63
48.5 1.2
TBZB80-50-315 30 8.33 128 2900 33.1
38 1.5
50 13.9 125 34.1
50 2.5
60 16.7 123 38
53 3
TBZB80-50-315A 28.14 7.82 113.4 2900 21.5
40.4 2
46.9 13.03 110 28.1
50 2
56.28 15.63 107.7 30
55 2.5
TBZB80-50-315B 26.4 7.33 100.5 2900 17
43.5 2
44 12.22 97 24.2
48 2
52.8 14.67 95 25
54.6 2.5
TBZB80-50-315 15 4.17 32.5 1450 3.59
37 1
25 6.94 32 4.54
48 1
30 8.33 31.5 4.95
52 1.2
TBZB80-50-315A 14.1 3.92 29.2 1450 3.52
31.8 1
23.5 6.53 28.3 4.12
44 1
28.2 7.83 27.1 4.41
47.2 1.2
TBZB100-80-125 60 16.7 23.7 2900 5.96
65 3
100 27.8 20 7.47
73 4.2
120 33.3 16.3 7.72
69 4.8
TBZB100-80-125A 55 15.3 19.4 2900 4.68
62 3
91.8 25.5 16.8 5.9
71 4.2
109 30.5 13.7 6.12
67 4.8
TBZB100-80-160 60 16.7 37 2900 10.1
60 3.8
100 27.8 32 11.9
73 4.3
120 33.3 28 12.5
73 5
TBZB100-80-160A 54.6 15.17 30.6 2900 7.98
57 3.8
91 25.28 26.5 9.25
71 4.3
109.2 30.34 23.2 9.85
70.4 5
TBZB100-80-160 30 8.33 9.25 1450 1.3
58 2.1
50 13.9 8 1.58
69 2.1
60 16.7 7 1.68
68 2.3
TBZB100-80-160A 27.3 7.58 7.66 1450 1.03
55.3 2.1
45.5 12.64 6.6 1.22
67 2.1
54.6 15.16 5.8 1.32
65.3 2.3
TBZB100-65-200 60 16.7 56 2900 14.5
63 3.4
100 27.8 50 18.9
72 3.9
120 23.3 44 20.3
71 5.2
TBZB100-65-200A 54.6 15.17 46.5 2900 11.5
60.1 3.4
91 25.28 41.5 14.7 70 3.9
109.2 30.34 36.6 16 68 5.2
TBZB100-65-200 30 8.33 14 1450 1.91 60 1.8
50 13.9 12.5 2.5 68 1.8
60 16.7 11 2.85 63 2.1
TBZB100-65-200A 27.3 7.58 11.6 1450 1.51 57 1.8
45.5 12.64 10.3 1.83 66 1.8
54.6 15.16 9.1 2.52 60.1 2.1
TBZB100-65-250 60 16.7 88 2900 25.2 57 3
100 27.8 80 32 68 3.6
120 33.3 74 36.1 67 4.5
TBZB100-65-250A 56.11 15.58 77 2900 21.8 54 3
93.5 25.97 70 27.4 65 3.6
112.2 31.16 64.7 30.9 64 4.5
TBZB100-65-250B 52.7 14.64 67.9 2900 18.3 53.3 3
87.8 24.39 61.7 23.1 64 3.6
105.4 29.28 57 26 62.9 4.5
TBZB100-65-250 30 8.33 22 1450 3.6 50 1.8
50 13.9 20 4.3 63 1.8
60 16.7 18.5 4.7 64 2.1
TBZB100-65-250A 28 7.79 19.2 1450 3.12 47 1.8
45.5 12.64 17.4 3.53 61 1.8
56 15.58 16.2 4.06 60.9 2.1
TBZB100-65-315 60 16.7 132 2900 44.9 48 2.8
100 27.8 125 54.9 62 3.2
120 33.8 119 60.8 64 4.2
TBZB100-65-315A 56.1 15.58 115.5 2900 39.2 45 2.8
93.5 25.97 109 45.5 61 3.2
112.2 31.16 104 52.1 61 4.2
TBZB100-65-315B 52.7 14.64 102 2900 33.3 44 2.8
88 24.44 97 38.7 60 3.2
105.4 29.28 92 44 60 4.2
TBZB100-65-315 30 8.33 33.5 1450 6.2 44 1.6
50 13.9 32 7.5 58 1.6
60 16.7 30.5 8.3 60 1.9
TBZB100-65-315A 28 7.79 29.3 1450 5.46 41 1.6
46.5 12.92 28 6.33 56 1.6
56 15.58 26.7 7.15 57 1.9
TBZB125-80-160


2900


160 44.4 32 17.7 79 5.3






TBZB125-80-200


2900


160 44.4 50 28.3 77 4.3






TBZB125-80-250


2900


160 44.4 80 47.1 74 4






TBZB125-100-200 120 33.3 61 2900 29.3 68 4.5
200 55.6 50 35.4 77 5
240 66.7 41 38.3 70 5.8
TBZB125-100-200A 109.1 30.3 50.5 2900 23.1 64.9 4.5
182 50.56 41.4 27.4 75 5
218.2 60.6 34 30.1 67.1 5.8
TBZB125-100-200 60 16.7 15.25 1450 3.89 64 2.5
100 27.8 12.5 4.66 73 2.9
120 33.3 10.25 5.08 66 3.6
TBZB125-100-200A 54.7 15.2 12.6 1450 3.08 61 2.5
91 25.28 10.3 3.6 71 2.9
109.4 30.4 8.5 4.02 63 3.6
TBZB125-100-250 120 33.3 90 2900 47.4 62 3.7
200 55.6 80 58.1 75 4.5
240 66.7 73 64.5 74 5.5
TBZB125-100-250A 112 31.1 78 2900 40.3 59 3.7
186.5 51.8 69.5 48.35 73 4.5
224 62.2 63.5 54.5 71 5.5
TBZB125-100-250B 105.5 29.3 69 2900 34.2 58 3.7
175.5 48.75 61.5 41.4 71 4.5
211 58.6 56 46 69.9 5.5
TBZB125-100-250 60 16.7 22.5 1450 6.23 59 2
100 27.8 20 7.56 72 2.3
120 33.3 18.25 8.4 71 3
TBZB125-100-250A 56 15.56 19.5 1450 5.31 56 2
93 25.83 17.4 6.29 70 2.3
112 31.1 15.9 7.13 68 3
TBZB125-100-315 120 33.3 132.5 2900 65.3 52.6 4
200 55.6 125 94.6 72 4.5
240 66.7 120 103 75 5
TBZB125-100-315 60 16.7 33.5 1450 10.3 53 2.5
100 27.8 32 13.5 65 2.5
120 33.3 30.5 15.1 66 3
TBZB125-100-400 60 16.7 52 1450 17.7 48 2.5
100 27.8 50 24.8 55 2.5
120 33.3 58.5 25.5 62 3
TBZB125-100-400A 54.6 15.17 46 1450 13 44 2.4
91 25.28 41 19 51 2.5
109.2 30.34 36.6 19.6 58 3
TBZB150-125-250 120 33.3 24.8 1450 12.3 66 2.5
200 55.6 20 14.1 77 2.8
240 66.7 15 14.4 68 3.5
TBZB150-125-250A 109.1 30.3 20.5 1450 9.7
62.8 2.5
182 50.56 16.5 10.9 75 2.8
218.2 60.6 12.4 11.3 65.2 3.5
TBZB150-125-315 120 33.3 36.3 1450 18.8 63 2.5
200 55.6 32 23.2 75 2.8
240 30.3 28.5 25.9 72 3.8
TBZB150-125-315A 109.1 30.3 36.3 1450 14.85 60 2.5
182 55.6 32 17.32 73 2.8
218.2 66.7 28.5 20.23 69 3.8
TBZB150-125-400 120 33.3 57.5 1450 30.8 61 2
200 55.6 50 38.9 70 2.5
240 66.7 44 45.6 63 3
TBZB150-125-400A 109.1 30.3 47.5 1450 24.3 58 2
182 50.56 41 29.9 68 2.5
218.2 60.6 36.5 36.1 60 3
TBZB200-150-250 240 66.7 23 1450 23.3
2.5
400 111.1 20 29.4 74 2.8
460 127.8 8 30.6
3
TBZB200-150-315 240 66.7 35.6 1450 34.7 67 3
40 111.1 32 44.1 79 3.5
460 127.8 29.4 47.8 77 4
TBZB200-150-315A 218.2 60.6 29.4 1450 27.3 64 3
363 100.8 25.5 32.7 77 3.5
418 116.1 24.3 37.4 74 4
TBZB200-150-400 240 66.7 55.8 1450 54.4 67 3
400 111.1 50 69.8 78 3.5
460 127.8 47 78.5 75 4
TBZB200-150-400A 218.2 60.6 46 1450 42.7 64 3
363 100.8 41 53.3 76 3.5
418 116.1 38.8 61.3 72 4


Product Tags: self priming pump , chemical pump , centrifugal pump , heat preservation pump , stainless steel pump , corrosion resistant pump

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Kenshine-pump
Verified Business License
Business Type
Manufacturer
Year Established
2017
Overseas Office
Yes
Factory Size
1,000-3,000 square meters
Contact Supplier Request Quote Chat Now

You May Also Like

Product Categories

Related Searches

Recommended Categories

Explore top categories and find suppliers for your specific needs
Pump Parts Pump Parts
Screw Pump Screw Pump
Centrifugal Pump Centrifugal Pump
Plunger Pump Plunger Pump
Gear Pump Gear Pump
Vacuum Pump Vacuum Pump
Other Pump & Vacuum Equipment Other Pump & Vacuum Equipment
Diaphragm Pump Diaphragm Pump
Piston Pump Piston Pump
Gasoline & Gas Pump Gasoline & Gas Pump
Vane Pump Vane Pump
Peristaltic Pump Peristaltic Pump
