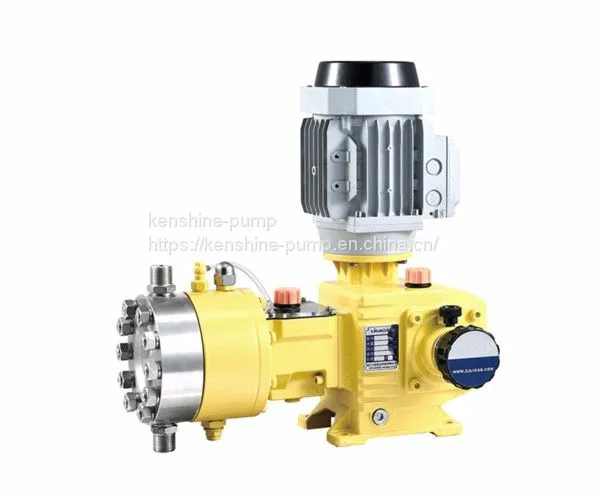

JYSX Series hydraulic diaphragm metering pump:
Flow rate range 10LPH-180LPH, Pressure range 8bar-140bar
JYSX series hydraulic diaphragm pump is robust and minimal maintenance design. It is integrated with air release valve, safety valve, and oil make-up valve. The air in the dosing head can be automatically released.
Hydraulic Diaphragm Metering Pump Features:
hydraulic diaphragm metering pump consists of three main devices: (1) driving device, (2) adjusting device, (3) liquid delivery device. The crankshaft which reduces motor rotation speed by worm and worm gear makes the piston reciprocate in the hydraulic oil chamber. This reciprocating movement of the piston makes the PTFE diaphragm and the liquid which is isolated by the diaphragm sucked and discharged. Each pump is with internal pressure relief valve protecting pump from over pressure conditions.
The flow rate can adjusted via unique adjusting mechanism from 0-100%. The adjustment can be carried when pump is in operation or at stop. The steady sate accuracy is ±1% from 30%-100% of the maximum output. Automatic operation is achieved by variable speed drive.
hydraulic diaphragm metering pumps are capable of dosing corrosive, vaporing, flammable, explosive or toxic solutions. It can also transport suspended liquid or moderately viscous liquid.
Double diaphragm with diaphragm rupture detecting system is available to prevent accident caused by mixture of hydraulic oil and the liquid after diaphragm ruptures.
Materials:
Pump head: SS304,SS316
Pump case: Cast Iron
Diaphragm: PTFE
Valves: SS304,SS316
Valve Ball: SS304,SS316, Ceramic
Power Supply:
380V 3 phase on standard, single phase or other voltage on request; EX-proof motor is available on request.
Technical parameter sheet
| Model | 50Hz | 60 Hz | Pressure | Plunger | Diaphragm | Stroke | Power | Inlet&Outlet Size | Connection Size | |||||
| Dia. | Dia. | Length | kW(HP) | |||||||||||
| Flow | Flow | SPM | Flow | Flow | SPM | (Bar) | (Psi) | (mm) | (mm) | (mm) | ||||
| (lph) | (gph) | (gph) | (lph) | |||||||||||
| JYSX 10/14 | 10 | 2.6 | 80 | 3.2 | 12 | 96 | 140 | 2030 | 12 | 67 | 20 | 0.37(0.5) | DN6 | DN15 |
| JYSX 15/14 | 15 | 4 | 120 | 4.8 | 18 | 144 | 140 | 2030 | 12 | 67 | (union for welding) | |||
| JYSX 27/7.6 | 27 | 7.1 | 8.6 | 32 | 76 | 1102 | 16 | 67 | ||||||
| JYSX 40/5.0 | 44 | 12 | 14 | 53 | 50 | 725 | 20 | 80 | ||||||
| JYSX 65/3.2 | 68 | 18 | 22 | 82 | 32 | 464 | 25 | 80 | DN10 | DN15 | ||||
| JYSX 86/2.5 | 86 | 23 | 27 | 103 | 25 | 363 | 28 | 97 | (union for welding ) | |||||
| JYSX 112/2.0 | 112 | 30 | 36 | 134 | 20 | 290 | 32 | 97 | ||||||
| JYSX 135/1.6 | 135 | 36 | 43 | 162 | 16 | 232 | 35 | 97 | ||||||
| JYSX 160/1.3 | 160 | 42 | 51 | 192 | 13 | 189 | 38 | 97 | ||||||
| JYSX 180/0.8 | 180 | 48 | 57 | 216 | 8 | 116 | 40 | 97 | ||||||
