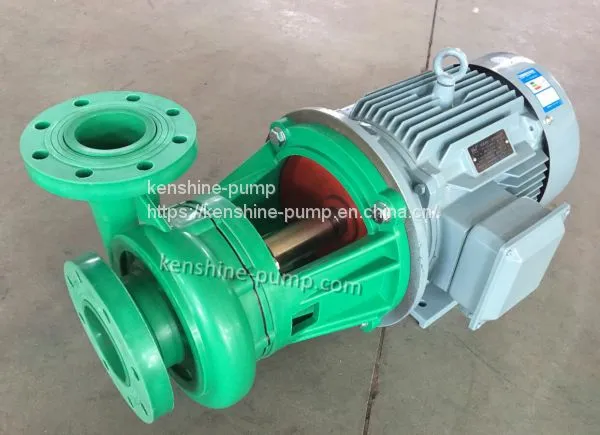

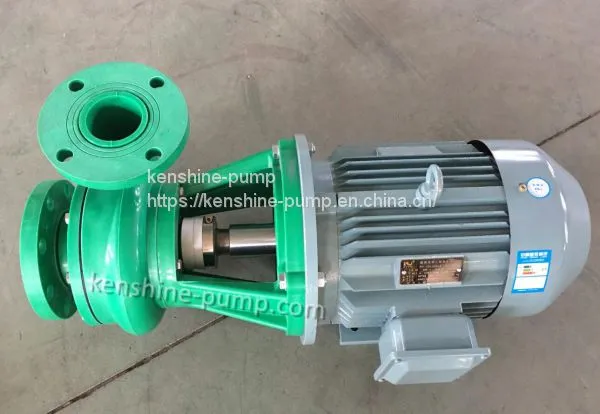

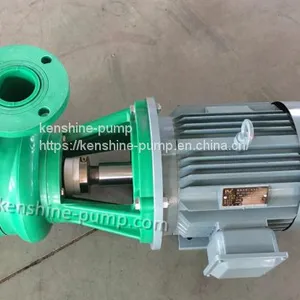

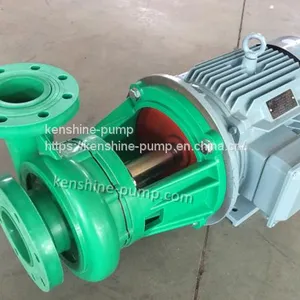

FP Series Polypropylene Reinforced Plastic Centrifugal Transfer Pump
US$ 150 - 1000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
FP40-32-125
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
IH Horizontal Chemical Centrifugal Pump Corrosive Resistant PumpUS$ 850 - 10000MOQ: 1 Set -
CZ Stainless Steel Chemical Process Pump Petrochemical Centrifugal PumpUS$ 650 - 10000MOQ: 1 Set
-
ZA,ZAO,ZAE Petrochemical Centrifugal PumpUS$ 1500 - 10000MOQ: 1 Set
-
FPG Vertical Reinforced Polypropylene Centrifugal PumpUS$ 300 - 1500MOQ: 1 Set
-
QW Submersible Wastewater Pump Trash PumpUS$ 650 - 10000MOQ: 1 Set
Brand Name
kenshine-pump
Place of Origin
China
Model Number
FP40-32-125
Application
Other, Chemical liquid transfer
Fuel
Other, electric motor
Power
Electric
Usage
Other, chemical fluids
Theory
Centrifugal Pump
Standard or Nonstandard
Standard
Structure
Other, horizontal
Pressure
Low Pressure
FP Series reinforced polypropylene corrosion resistance centrifugal pump
Summary:
FP Series reinforced polypropylene corrosion resistance centrifugal pump has the advantages such as advanced structure, small volume, light weight, energy-saving and good seal and corrosion resistance etc. The pump is widely used to transport the acid and alkali and salt etc corrosive liquids in chemical industry and light industry and waste dealing etc. FP Series reinforced polypropylene centrifugal and FS Series etc pumps all use the mechanical seal and are made from CFR-PP (Reinforced polypropylene) and ABS(Engineering plastic) etc.
The 104 pump with 220V can be in domestic use.
| Model | Pump caliber | Flow rate | Head | Suction height | Speed | Voltage | Motor Power | |
| Inlet | Outlet | m³/h | M | M | rpm | v | KW | |
| FP20-15-100(105) | 20 | 15 | 3 | 7 | 4 | 2900 | 380 | 0.75 |
| FP32-25-100(104) | 32 | 25 | 4 | 7 | 6.5 | 2900 | 220 | 0.55 |
| FP32-25-105(103) | 32 | 25 | 6.3 | 8 | 6.5 | 2900 | 380 | 0.75 |
| FP40-32-125(102) | 40 | 32 | 12.5 | 20 | 6.5 | 2900 | 380 | 1.5 |
| FP50-40-130(101.5) | 50 | 40 | 13 | 22 | 6.5 | 2900 | 380 | 2.2 |
| FP65-50-150(101) | 65 | 50 | 25 | 25 | 6 | 2900 | 380 | 4 |
| 50FP-22 | 50 | 40 | 13 | 22 | 6 | 2900 | 380 | 2.2 |
| 65FP-25 | 65 | 50 | 20 | 25 | 6 | 2900 | 380 | 4 |
| 80FP-28 | 80 | 65 | 50 | 28 | 4 | 2900 | 380 | 5.5 |
| 80FP-32 | 80 | 65 | 50 | 32 | 4 | 2900 | 380 | 7.5 |
