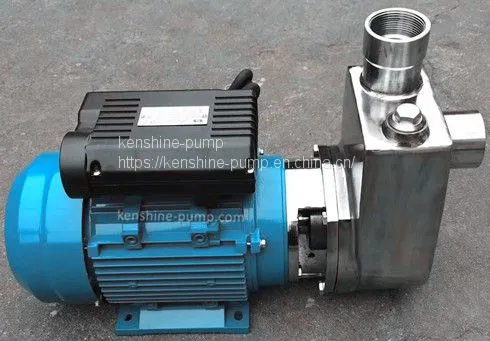

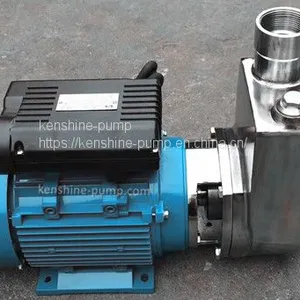

FBZ corrosion resistant self priming chemical pump
FBZ series corrosion resistant self priming chemical pump can be made of stainless steel such as SS304,SS316,SS316L etc material. Connection type between the pump and motor can be with closed coupling or shaft couple.
FBZ Corrosion resistant self priming chemical pump is suitable to transfer the corrosion liquids (or with small soft particle or fiber) or food liquids. The pump with closed coupling is suitable for the fluids whose temperature is not higher than 90 degree. The pump with shaft coupling is suitable for the fluids whose temperature is not higher than 105 degree Celsius
FBZ corrosion resistant self priming chemical pump has the suction height up 4meters. FBZ self priming chemical pump is widely used in beverage, medicine, sewage treatment, chemical industry, fine chemical industry etc.
FBZ corrosion resistant self priming chemical pump has the advantages of corrosion resistance, reliable and convenient operation and maintenance, compact structure, low energy consumption, good sealing performance and etc.
| Model | Model | Motor power | Inlet/outlet(mm) | Efficiency | Head(m)/ Q(m3/H) | Suction height (m) | ||||||||||
| 3P/380V/50HZ | 1Phase/220V/50HZ | (KW) | ||||||||||||||
| 25FBZ-8 | 25FBZ-8D | 0.25 | 25 | 25 | 40 | H | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 5.5 | ||
| Q | 2.3 | 3 | 3.5 | 4.3 | 4.8 | 5.2 | 5.5 | |||||||||
| 25FBZ-13 | 25FBZ-13D | 0.55 | 25 | 25 | 40 | H | 16 | 15 | 14 | 13 | 12 | 10 | 8.5 | 9.5 | 10 | 4 |
| Q | 3 | 4 | 4.8 | 6 | 6.5 | 7.5 | 12 | 10 | 8 | |||||||
| 40FBZ-18 | 40FBZ-18D | 1.5 | 40 | 40 | 49 | H | 21 | 20 | 19 | 18 | 16 | 14 | 12 | 10 | 8 | 4 |
| Q | 6 | 7 | 8.5 | 10 | 12 | 14 | 15.5 | 17.3 | 18.5 | |||||||
| 50FBZ-22 | 3 | 50 | 50 | 50 | H | 28 | 26 | 25 | 24 | 22 | 20 | 18 | 16 | 14 | 4 | |
| Q | 8.5 | 12 | 13.5 | 15 | 16.5 | 19 | 20.5 | 22 | 23.8 | |||||||
