600Mbps Dual Band 2.4G&5.8G Outdoor CPE AP Router WiFi Signal Hotspot Amplifier Repeater Long Range Wireless PoE Access Point
US$ 165 - 175
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OUTENGDA
Place of Origin:
China
Model Number:
HW6100
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
3 days
Related Products
-
1200Mbps 48V PoE Outdoor AP CPE 802.11ac Dual Band 2.4G&5.8G Wireless Access Point WiFi Signal Booster With OMNI ANTUS$ 365 - 455MOQ: 1 Piece -
Long Range 400meters Wifi Transmitter Extender 2.4GHz 300Mbs Wireless Router Outdoor AP WiFi Hotspot Base Station With 14dbi ANTUS$ 180 - 280MOQ: 1 Piece
-
Long Range 400meters Wifi Transmitter Extender 2.4GHz 300Mbs Wireless Router Outdoor AP WiFi Hotspot Base Station With 14dbi ANTUS$ 245 - 335MOQ: 1 Piece
-
1200Mbps Wave2.0 802.11AC 2.4G&5Ghz Wireless Wifi Outdoor Access Point AP High-power Signal Coverage EquipmentUS$ 300 - 600MOQ: 1 Piece
-
11AC MU-MIMO Wave2.0 Dual Band 1200Mbps High Power Outdoor WiFi AP 2.4G&5.8G Wireless Access Point Wi-Fi Extender Signal BoosterUS$ 400 - 800MOQ: 1 Piece
Brand Name
OUTENGDA
Place of Origin
China
Model Number
HW6100
Type
Wireless
Certification
CE
Function
Firewall, QoS
Products Status
Stock
Application
Enterprise
WAN Ports
1
LAN Ports
Other
Outdoor CPE AP Router Wireless Access Point WiFi Repeater With External ANT
- Weatherproof and Lightning Protection
- 600Mbps, Dual-band 2.4Ghz 5.8Ghz, meet all-frequency needs
- Long Range 360° Full Coverage
- 100+ Concurrent End-users
- Support IEEE802.3AF PoE, power adapter inc.
Overviews
600Mbps, Qualcomm CPU, IP65 water-proof

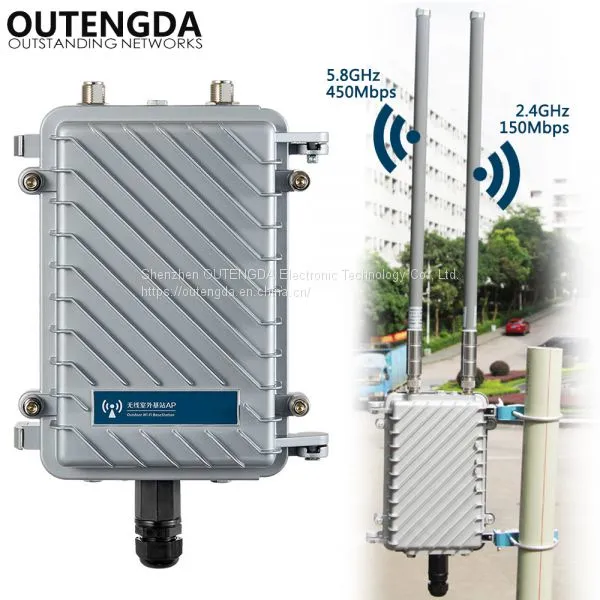

HW6100 is a Qualcomm Solution 11ac high power industrial use Outdoor Wireless Access Point with the next generation 802.11ac Wi-Fi standard, combined 600Mbps Wi-Fi speed over 2.4GHz(150Mbps) and 5GHz(450Mbps), with one detachable outdoor 8dBi Omni antenna and another 12dBi Omni antenna and adjustable high RF power, make this outdoor access point with 360° WiFi coverage Radius about 250 meters Max.. Fast Ethernet data rate makes more than 100 concurrent end users can access it to enjoy freely HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.
Features
MIMO Technology, 600Mbps Data Rate
Comply with IEEE 802.11ac standard 2.4GHz&5.8GHz frequency, the 2T2R protocol with 2.4GHz 150Mbps data rate and 5.8GHz 450Mbps data rate.
Various Operation Modes for the different network environment
It supports wireless AP, Gateway, WiFi Repeater, Bridge, WISP operation mode, then with SMA connector for detachable Omni/panel antenna, the user can flexibly choose a suitable wireless mode to do WiFi Coverage or PTP, PTMP, MPTMP applications.
Excellent Outdoor Weatherproof and Lightning Protection
With metal waterproof, dustproof and sunscreen shell, temperature adaptive and board protective to work in a harsh outdoor environment, meanwhile, the auxiliary cooling function make HW6100 work normally in the different environment.
Specifications
Hardware | |
Wireless Technology |
802.11ac standard, 600Mbps data rate, MIMO Technology |
Device Interface |

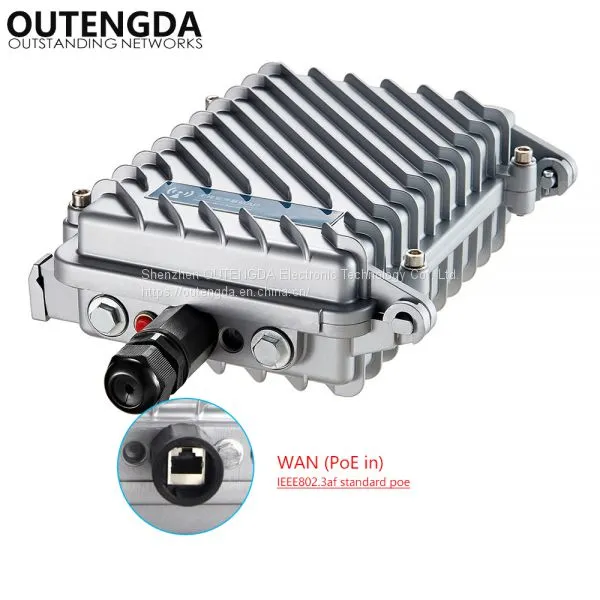

1*10/100Mbps auto-negotiation and waterproof RJ45 port |

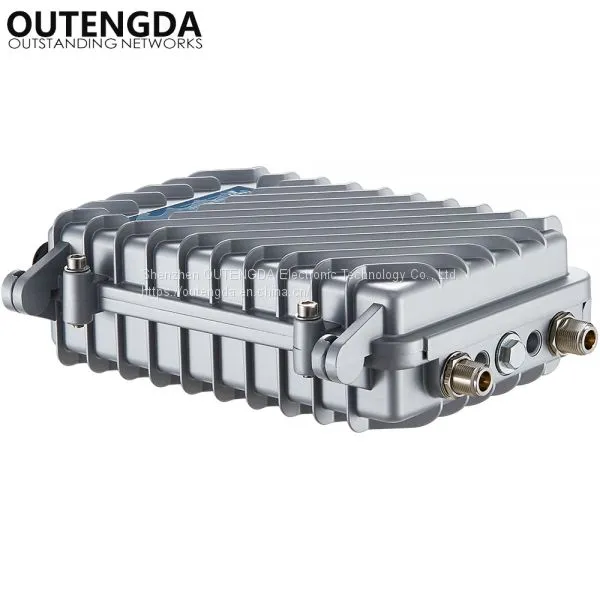

1*2.4G N Connector; 1*5.8G N Connector | |
1*reset button, press 15 seconds to revert to default setting | |
Included Antenna |
1pcs 2.4G detachable 8dBi external antenna(size: Φ20*550mm) |
1pcs 5.8G detachable 12dBi external antenna(size: Φ20*550mm) | |
Power |
48v iEEE802.3af standard PoE |
Size |
310mm*160mm*80mm |
Data Rate |
600Mbps |
Software | |
Operating Mode |
Wireless AP, gateway, WISP, Repeater |
Wireless Security |
64/128-bit WEP,WPA/WPA2,WPA-PSK/WPA2-PSK,EAP encryption |
SSID |
Multiple SSID, 4 SSID in 5.8G and 4 SSID in 2.4G |
Using environment | |
Temperature |
Working Temperature: -20°C~55°C |
Storage Temperature: -40°C ~ 70°C | |
Humidity |
Working Humidity 10%~90% RH does not condense |
Storage Humidity 5%~90% RH does not condense | |

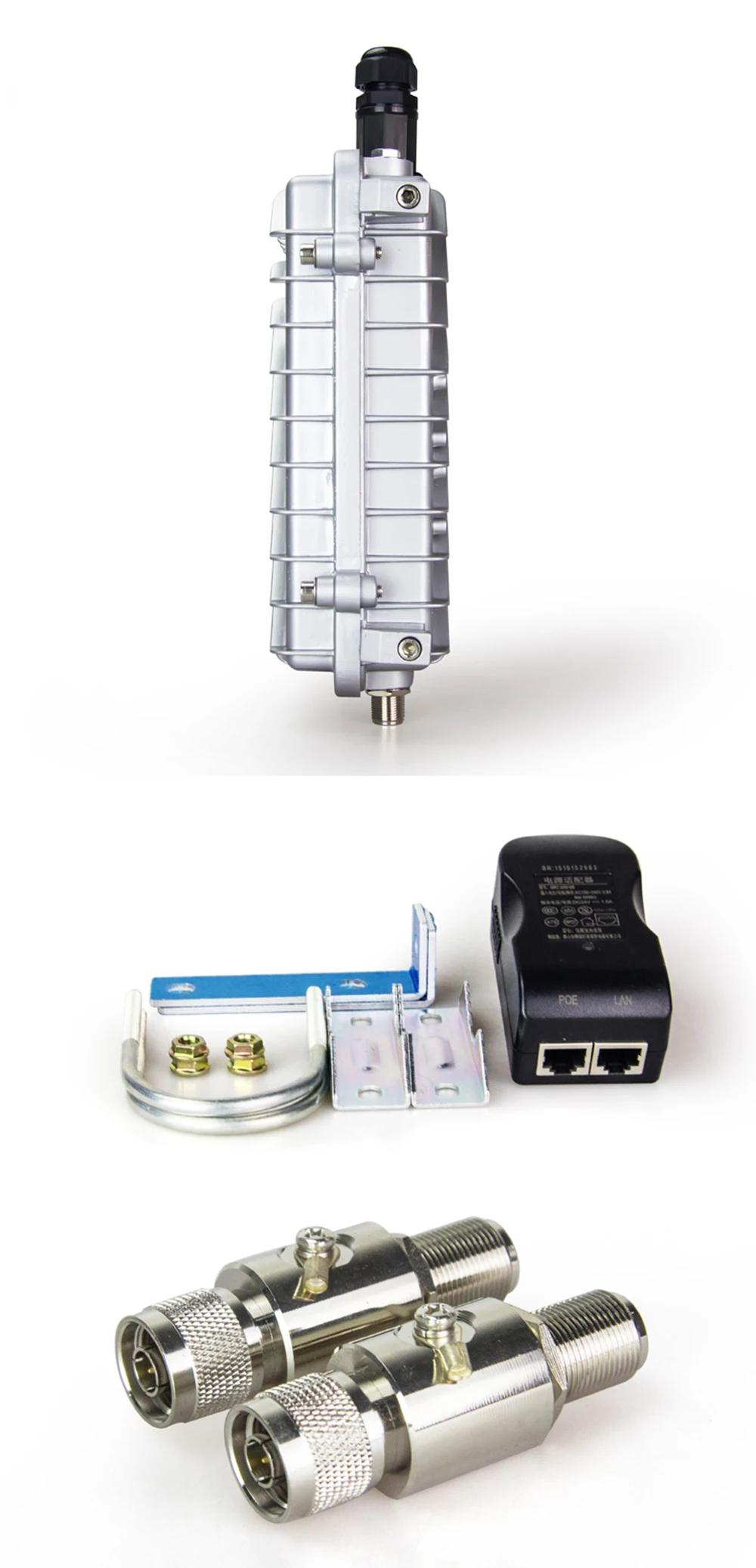

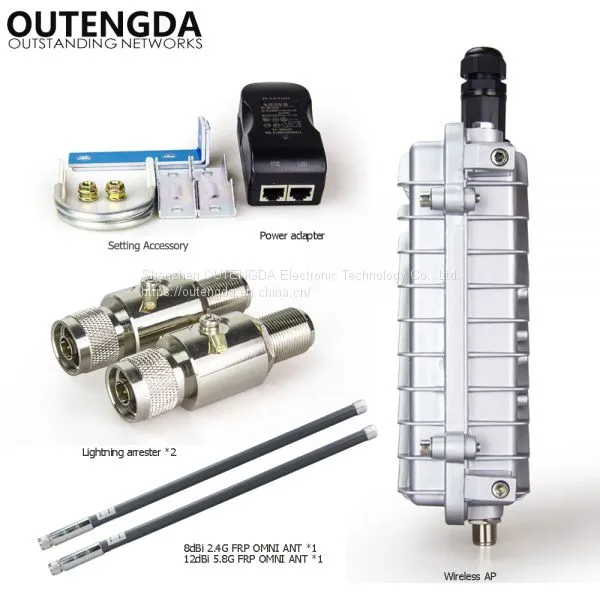

PACKAGE HW6100 AP Station *1
2.4GHz 8dBi FRP Omni antenna*1
5.8GHz 12dBi FRP Omni antenna*1
lightning arrester*2
PoE Adapter*1
English User Manual*1
Setting accessory*1
