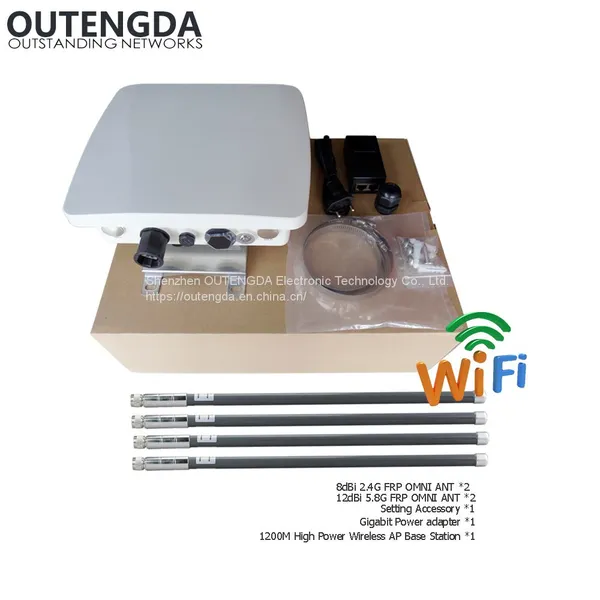

802.11AX WIFI6 3600Mbps Outdoor wieless access point Dual band 2.4&5.8GHz outdoor POE router For farm outdoor IP67 waterproof AP Router

FOB Price

USD $980 - $1280 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port SHENZHEN
Payment Terms:T/T L/C Credit Card PayPal
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	OUTEGDA	Place of Origin:	China	Model Number:	HW9563QH
Type:	Wireless	Certification:	CE	Function:	Firewall
Products Status:	Stock	Application:	Enterprise	WAN Ports:	1
LAN Ports:	Other, 1

Product Description

Descriptions

HW9563QH is a Qualcomm Solution high-power, high-speed 11AX tri-band Outdoor AP, which can provide one 2.4G and two 5G tri-band wireless services. Support intelligent channel analysis, automatic optimal channel selection, and the maximum concurrent rate can reach 3657Mbps. Equipped 2.5G WAN/POE port, fast Ethernet data rate make more than 300 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks. WEB built-in WIFI analyzer, the optimal channel is clear at a glance. The product's waterproof rating can reach IP67, meeting the networking requirements of various outdoor environments.

Aluminum case with IP67 dust-proof/waterproof level, adapt to a variety of outdoor unfavorable weather

HW9563QH with waterproof, dust proof and sunscreen aluminum shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -40℃ to 70℃. Suit for any country.

High Power design, SMA connector for external antenna, more range and stable signal

Designed in two line Power Amplifier on PCB board, the RF power can be 1000mW high power, 4PCS SMA connector, can connect with Omnidirectional fiberglass antenna, can greatly increase the wifi range and supply the stable wifi signal for users.

2.4G & 5G & 5G Tri-band Concurrency

Provides 2.4G and dual 5G frequency, data rate up to 3657Mbps; Support MU-MIMO technology, 3657Mbps data rate and Gigabit WAN, simultaneously connect 300+ wireless terminal devices, increase the bandwidth to 5 or 6 times.

Power over Ethernet

HW9563QH has integrated IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

Multiple operation mode to meet the needs of various wireless transmission solutions

Fat/Fit two working modes, FAT mode support AP/Gateway operation modes.

Access Controller System

Work with WLAN controller in wireless AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore.

WPA / WPA2 Encryptions - Advanced Security

With the most attentive wireless security, the HW9563QH High Power Wireless Access Point provides multiple protection measures. It can be set to turn off wireless network name (SSID) broadcast so that only stations that have the SSID can be connected. The AP provides wireless LAN 64/128-bit WPA/WPA2 (PSK/AES) encryption.

Specifications

Hardware:
Chipset	IPQ8072+QCN5024+QCN5054+PMP8074+QCA8081*2(2.5G)
Standard	802.11ax/ac/b/g/n
Flash	SPI NOR 8MB (1.8v)+ NAND 128MB
DDR3L	512MB*2
2.4G Frequency	2.4GHz - 2.484GHz
2.4G RF	QCN5024-2.4G external FEM adopts SKY85334-11
2.4G Wi-Fi standard	802.11b/g/n/ax
5.8G Frequency	5150~5850MHz
5.8G RF1	QCN5054-5.8G external FEM adopts SKY85750-11
5.8G Wi-Fi Standard	802.11 a/n/ac/ax
Interface	1 * 10/100 /1000/2500Mbps RJ45 WAN Port
	1 * Reset button, press 10 seconds to revert to default setting
Antenna	N type antenna connector
Data Rate	3657Mbps（2.4G upto 1182Mbps，5.8G upto 2475Mbps）
End Users	300+
2.4G RF Power	802.11b	11M	17±2dBm	1M	18±2dBm
	802.11g	54M	16±2dBm	6M	17±2dBm
	802.11n HT20	MCS7	16±2dBm	MCS0	17±2dBm
	802.11n HT40	MCS7	15±2dBm	MCS0	16±2dBm
	802.11ax HT20	MCS11	15±2dBm	MCS0	16±2dBm
	802.11ax HT40	MCS11	15±2dBm	MCS0	16±2dBm
5.8G RF Power	802.11a	54M	16±2dBm	6M	17±2dBm
	802.11n HT20	MCS7	15±2dBm	MCS0	16±2dBm
	802.11n HT40	MCS7	15±2dBm	MCS0	16±2dBm
	802.11ac HT20	MCS7	15±2dBm	MCS0	16±2dBm
	802.11ac HT40	MCS7	15±2dBm	MCS0	16±2dBm
	802.11ac HT80	MCS9	14±2dBm	MCS0	15±2dBm
	802.11ax HT20	MCS11	15±2dBm	MCS0	16±2dBm
	802.11ax HT40	MCS11	15±2dBm	MCS0	16±2dBm
	802.11ax HT80	MCS11	14±2dBm	MCS0	15±2dBm
	802.11ax HT160	MCS11	13±2dBm	MCS0	14±2dBm
2.4G Receive Sensitivity	802.11b	11M	-85dBm	1M	-92dBm
	802.11g	54M	-72dBm	6M	-90dBm
	802.11n HT20	MCS7	-70dBm	MCS0	-88dBm
	802.11n HT40	MCS7	-68dBm	MCS0	-88dBm
	802.11ax HT20	MCS11	-60dBm	MCS0	-85dBm
	802.11ax HT40	MCS11	-56dBm	MCS0	-85dBm
5.8G Receive Sensitivity	802.11a	54M	-72dBm	6M	-92dBm
	802.11n HT20	MCS7	-70dBm	MCS0	-90dBm
	802.11n HT40	MCS7	-68dBm	MCS0	-88dBm
	802.11ac HT20	MCS7	-70dBm	MCS0	-90dBm
	802.11ac HT40	MCS7	-68dBm	MCS0	-88dBm
	802.11ac HT80	MCS9	-58dBm	MCS0	-85dBm
	802.11ax HT20	MCS11	-62dBm	MCS0	-88dBm
	802.11ax HT40	MCS11	-58dBm	MCS0	-86dBm
	802.11ax HT80	MCS11	-55dBm	MCS0	-84dBm
	802.11ax HT160	MCS11	-55dBm	MCS0	-80dBm
2.4G EVM	802.11b: ≤-10 dB 802.11g: ≤-25 dB 802.11n: ≤-28dB 802.11ac: ≤-32 dB 802.11ax: ≤-35 dB
5G EVM	802.11a: ≤-25 dB; 802.11n: ≤-28 dB; 802.11ac: ≤-32 dB; 802.11ax: ≤-35 dB
PPM	±20ppm
PoE	48V (IEEE 802.3at)
LED light	Sys, WAN, LAN
Power Consumption	≤ 24W
Size	29523180MM
Weight	3.5KG
Others:
Environment	Temperature: -20~45 ℃ Limit working temperature: -30~70 ℃ Storage Temperature: 0~70 ℃ Humidity: 5%~95% non-condensing

Antenna Specification (Optional)

ANT-2400-8 Electrical Specifications
Frequency range（MHz）	2400～2483
Bandwidth （MHz）	83
Gain （dBi）	8
Half-power beam width（°）	H：360 V：12
VSWR	≤1.5
Input Impedance（Ω）	50
Polarization	Vertical
Maximum input power（W）	100
Lightning protection	DC Ground
Input connector type	N Female
Mechanical Specifications
Dimensions (mm)	Φ20*550
Antenna weight（kg）	0.3
Operating temperature（°c）	-40～60
Rated Wind Velocity（m/s）	60
Radome color	Gray
Mounting way	Pole-holding
Mounting hardware（mm）	￠35-￠50

ANT-5158-12 Electrical Specifications
Frequency range（MHz）	5150～5850
Bandwidth（MHz）	700
Gain（dBi）	12
Half-power beam width（°）	H:360 V:6
VSWR	≤1.8
Input Impedance（Ω）	50
Polarization	Vertical
Maximum input power（W）	100
Lightning protection	DC Ground
Input connector type	N Female
Mechanical Specifications
Dimensions (mm)	Φ20*580
Antenna weight（kg）	0.28
Operating temperature（°c）	-40～60
Rated Wind Velocity（m/s）	60
Radome color	Gray
Mounting way	Pole-holding
Mounting hardware（mm）	￠35-￠50
