1200Mbps Wave2.0 802.11AC 2.4G&5Ghz wireless wifi outdoor access point AP High-power signal coverage equipment

Descriptions

HW9563H is a Qualcomm Solution MU-MIMO 11ac high power industrial use Outdoor CPE with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equipped Gigabit WAN port, fast Ethernet data rate make more than 100 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.

ABS and Metal waterproof, dust proof and sunscreen shell, temperature adaptive

HW9563H with ABS and metal waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -40℃ to 55℃. Suit for any country.

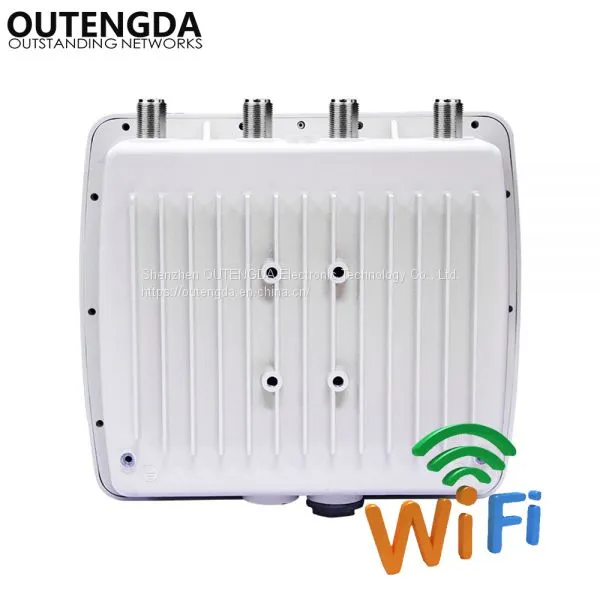

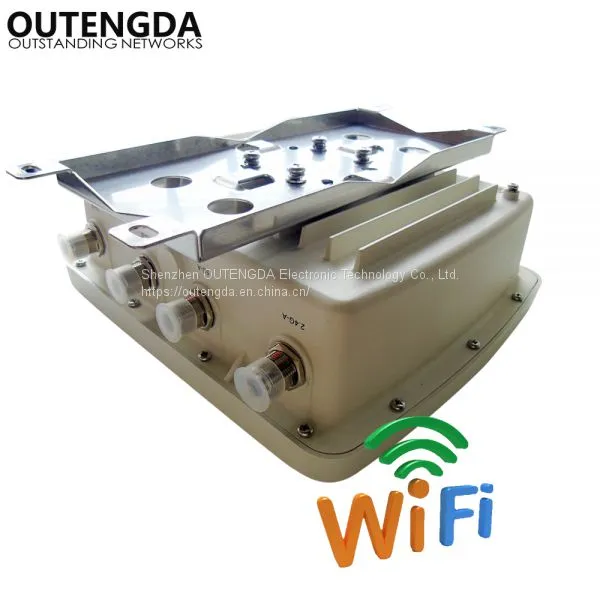

High Power design, N connector for external antenna, more range and stable signal

Designed in two line Power Amplifier on PCB board, the power can be 500mW high power, 4PCS N connector,can connect with panel/omni antenna based on request, can greatly increase the Wi-Fi range and supply the stable Wi-Fi signal for users.

Wave 2 Technology

With Wave 2 Technology, it adopts 256QAM modulation, support MU-MIMO (Multi-User Multiple-Input Multiple-Output), 4 Spatial Steams, greatly to improved the communication efficiency.

Power over Ethernet

HW9563H has integrated IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

Access Controller System

Work with WLAN controller in wireless AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....

Main Features

l Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate

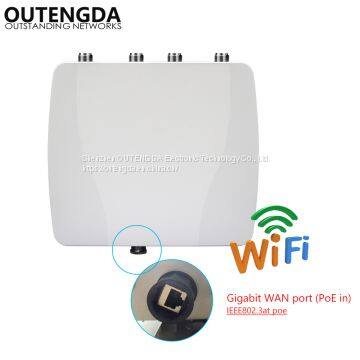

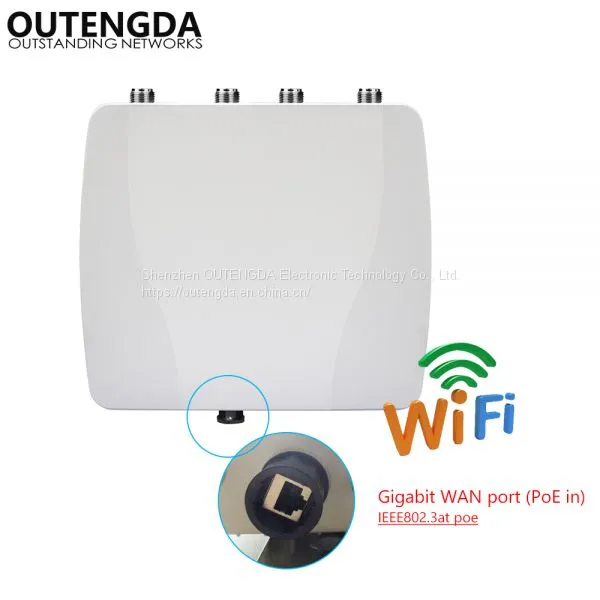

l 1 10/100/1000Mbps WAN Port,faster Ethernet.

l 500mW high power, can connect with external antenna for stronger signal strength and more wireless coverage, 16M Flash, 128M DDR2 RAM, more user, more stable

l Support IEEE 802.3at PoE standard

l Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)

l Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode

l With function of build in firewall, IP filter, URL filter and MAC filter

l Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment

l Support DDNS, VPN pass through, Port forwarding and DMZ host

l Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
