Descriptions
HW9563Pro is a Qualcomm Solution MU-MIMO 11ac high power industrial use Outdoor CPE with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equipped Gigabit WAN port, fast Ethernet data rate make more than 100 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.
ABS and Metal waterproof, dust proof and sunscreen shell, temperature adaptive
HW9563Pro with ABS and metal waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -40℃ to 55℃. Suit for any country.

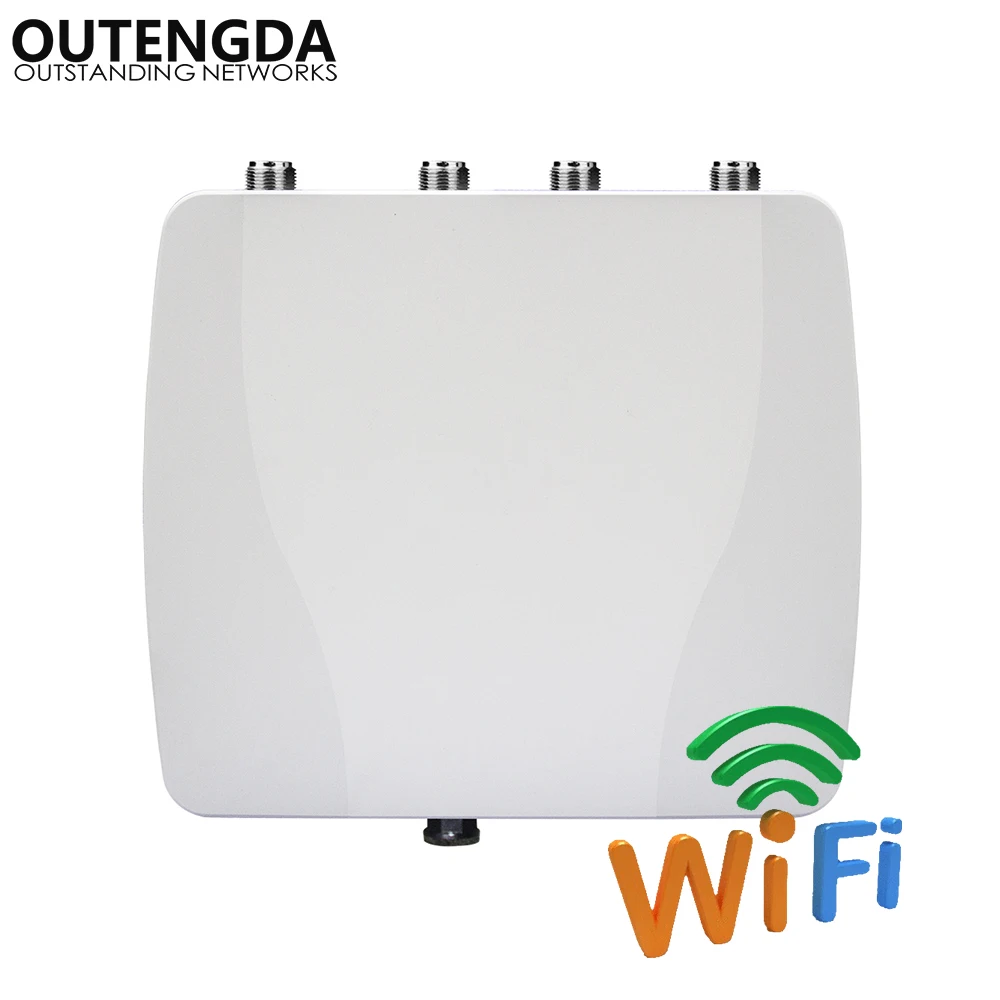

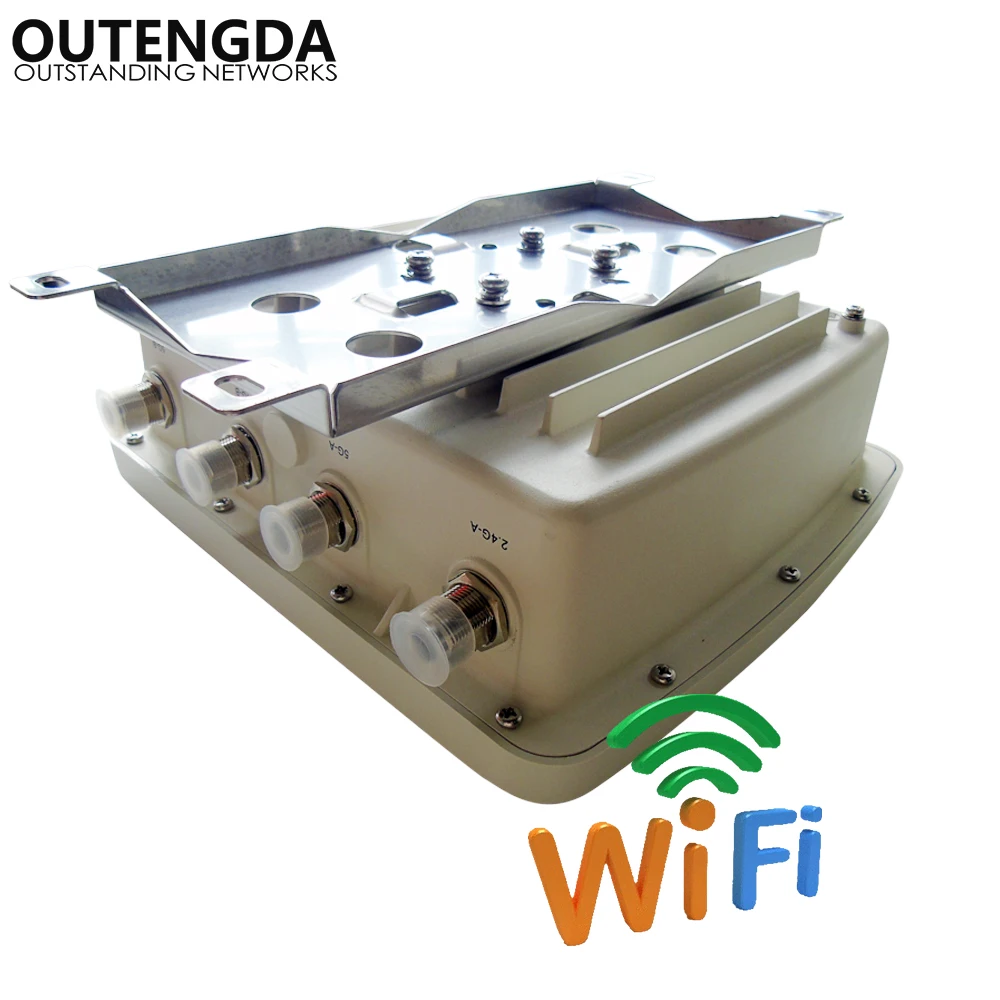

High Power design, N connector for external antenna, more range and stable signal

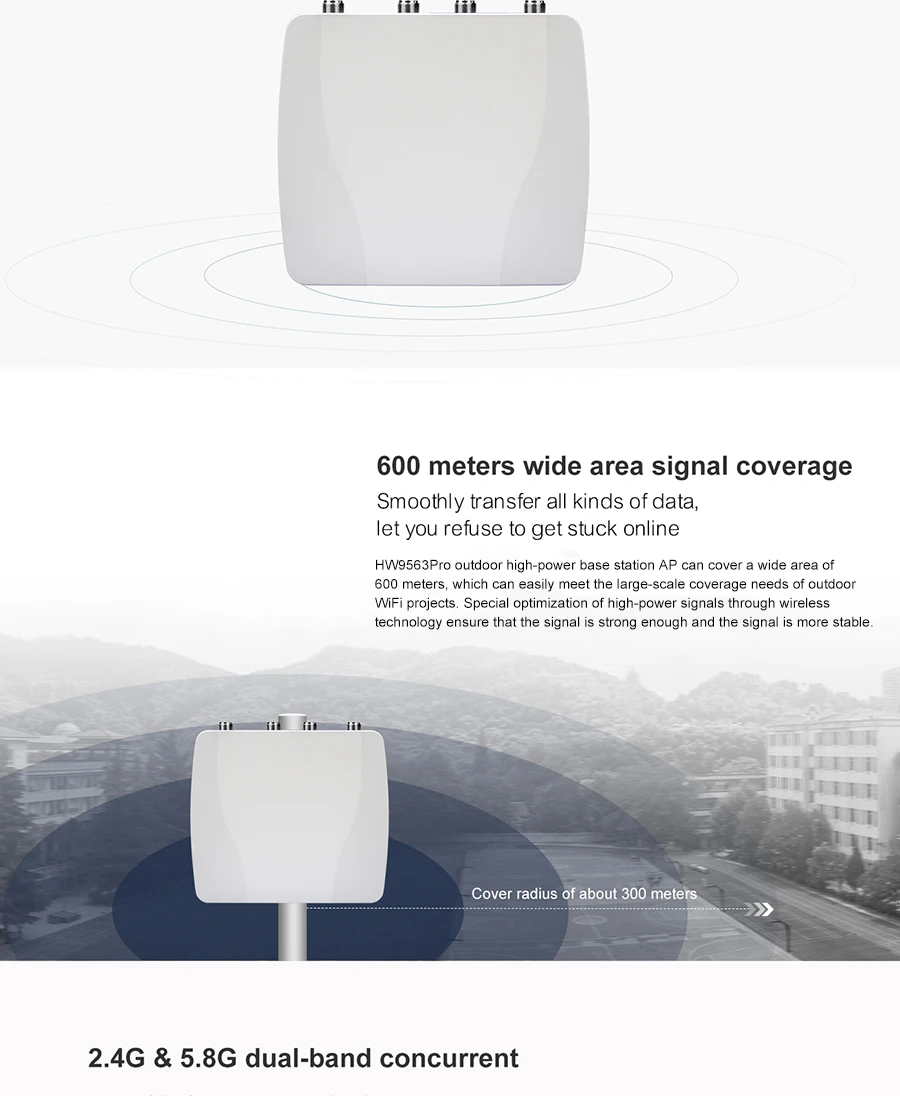

Designed in two line Power Amplifier on PCB board, the power can be 500mW high power, 4PCS N connector,can connect with panel/omni antenna based on request, can greatly increase the Wi-Fi range and supply the stable Wi-Fi signal for users.
Wave 2 Technology

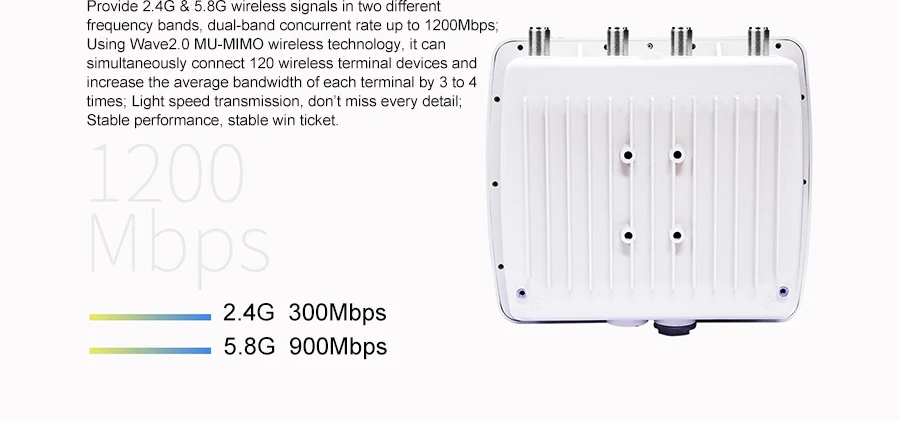

With Wave 2 Technology, it adopts 256QAM modulation, support MU-MIMO (Multi-User Multiple-Input Multiple-Output), 4 Spatial Steams, greatly to improved the communication efficiency.
Power over Ethernet

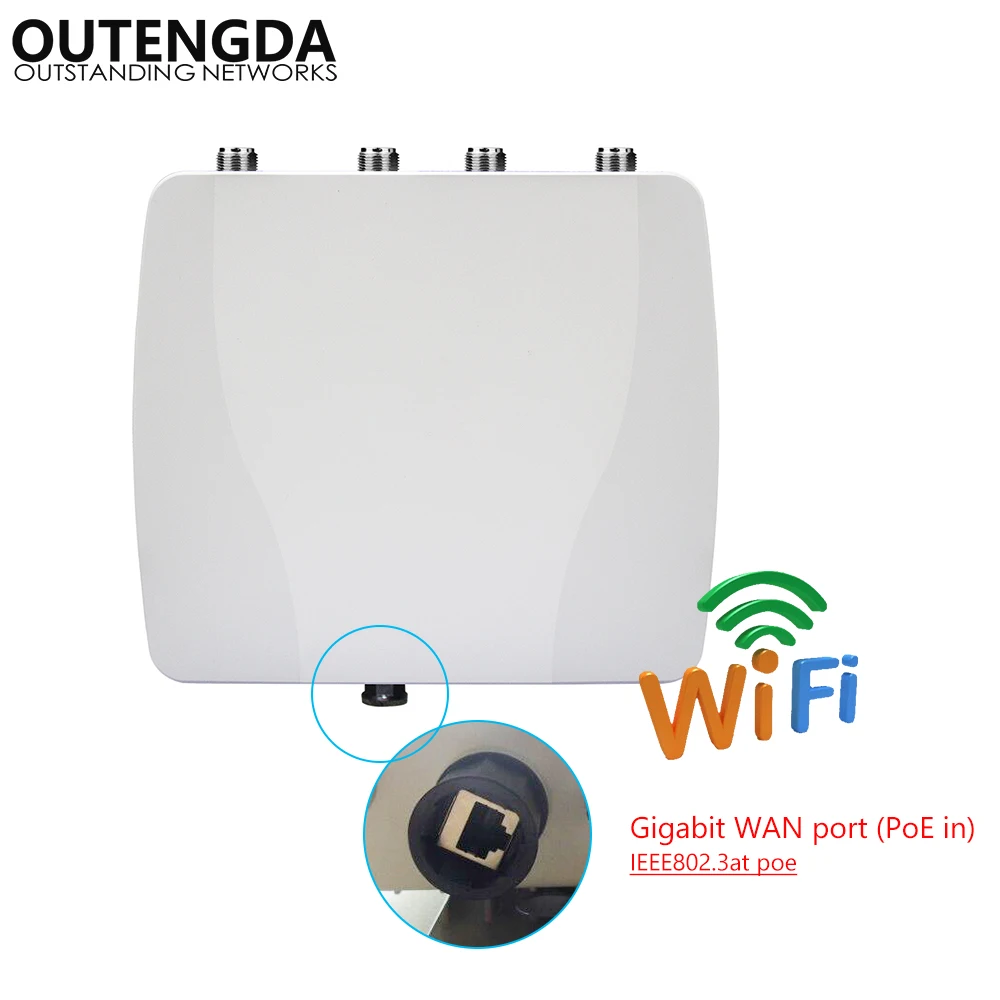

HW9563Pro has integrated IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Access Controller System
Work with WLAN controller in wireless AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....
Main Features
l Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate
l 1 10/100/1000Mbps WAN Port,faster Ethernet.
l 500mW high power, can connect with external antenna for stronger signal strength and more wireless coverage, 16M Flash, 128M DDR2 RAM, more user, more stable
l Support IEEE 802.3at PoE standard
l Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)

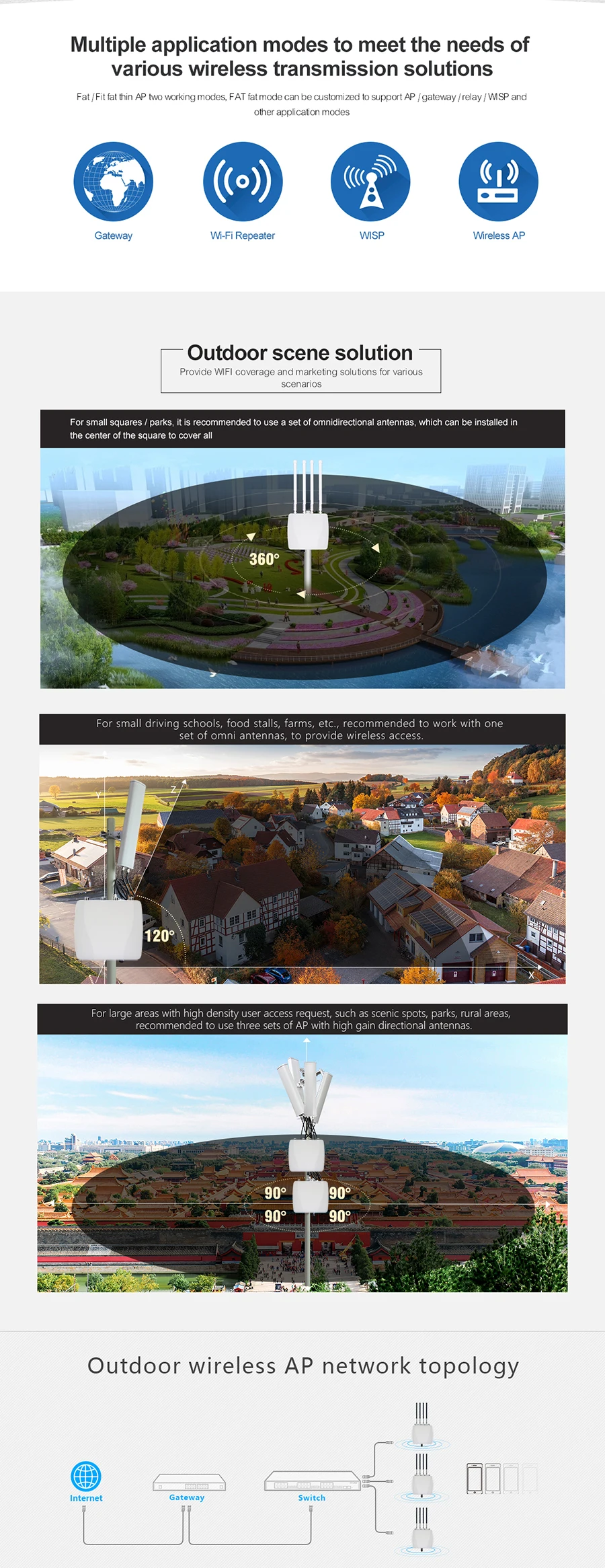

l Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode
l With function of build in firewall, IP filter, URL filter and MAC filter
l Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment
l Support DDNS, VPN pass through, Port forwarding and DMZ host
l Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
Hardware: | |
Chipset | Qualcomm QCA9563 + QCA9886 +QCA8334 |
Standard | 802.11ac/b/g/n, MU-MIMO technology |
Memory | 128MB DDR2 RAM |
Flash | 16MB |

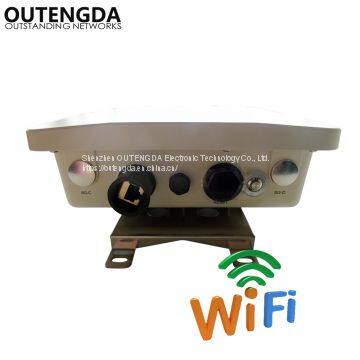

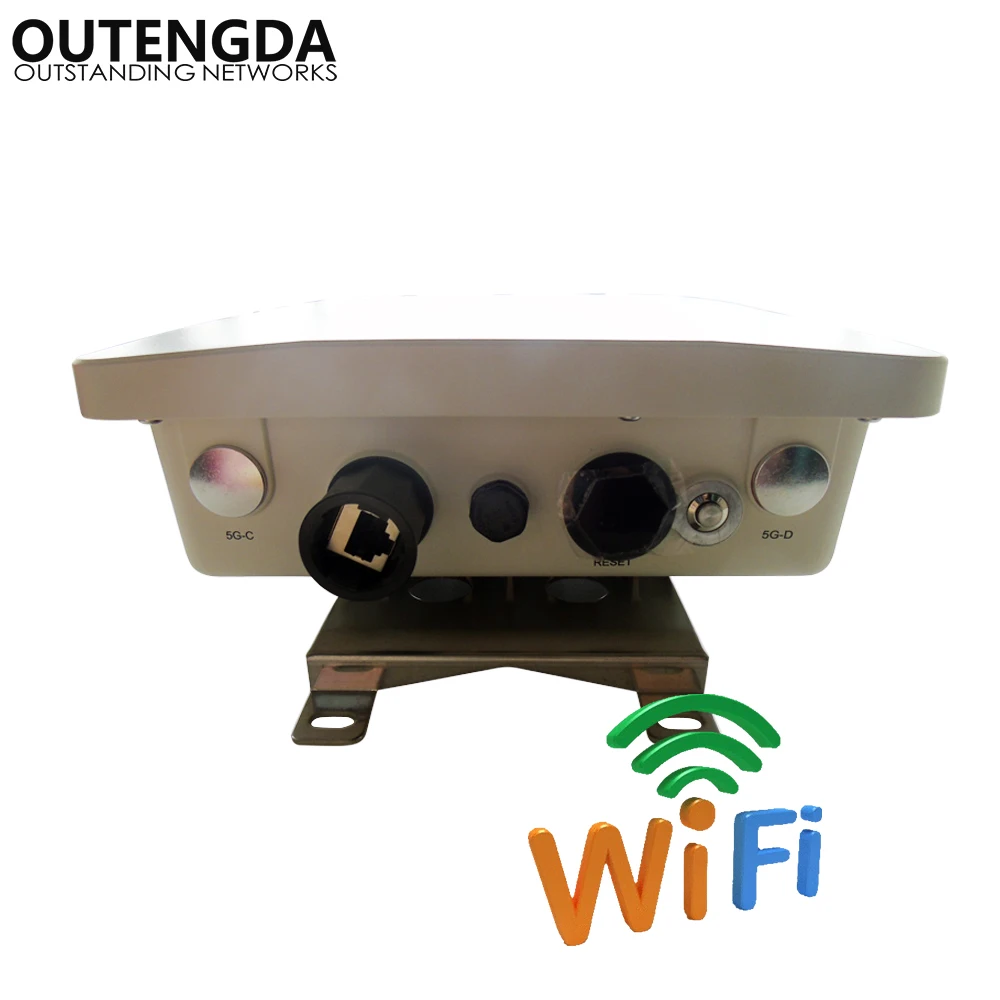

Interface | 1 * 10/100 /1000Mbps RJ45 WAN Port |
1 * Reset button, press 15 seconds to revert to default setting | |

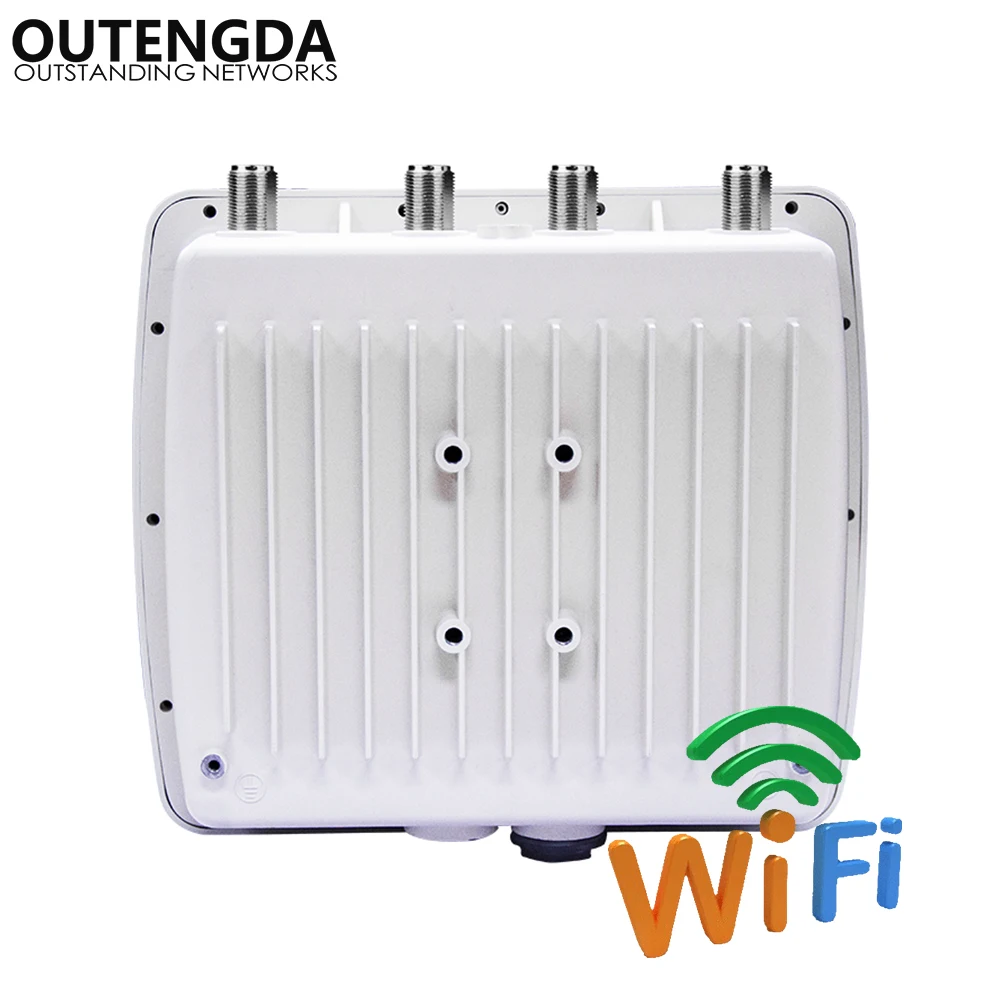

Antenna | 4PCS N type antenna connector |
Power consumption | 48V PoE<30W |
Weight | 4KGS |
RF Data | |
Frequency | 2.4G: 802.11b/g/n; 5GHz: 802.11a/n/ac |
2.4GHz: 2.312GHz to 2.4835GHz 5GHz: 5.020 - 6.1000 GHz | |
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
DSSS = DBPSK, DQPSK, CCK | |
Throughput | 1200 Mbps |
EVM | 2.4G: 802.11b: ≤-10 dB; 802.11g: ≤-25 dB; 802.11n: ≤-28 dB 5G: 802.11a: ≤-25dB; 802.11n: ≤-28 dB; 802.11ac: ≤-32 dB | |
PPM | ±20ppm | |
Max Users | 128+ | |
Firmware Features: | ||
Operation mode | Wireless AP, Gateway, WISP, Wi-Fi Repeater | |
WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) | |
Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption | |
SSID | Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G) | |
Firewall | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter | |
Protocols | IPv4 | |
Others: | ||

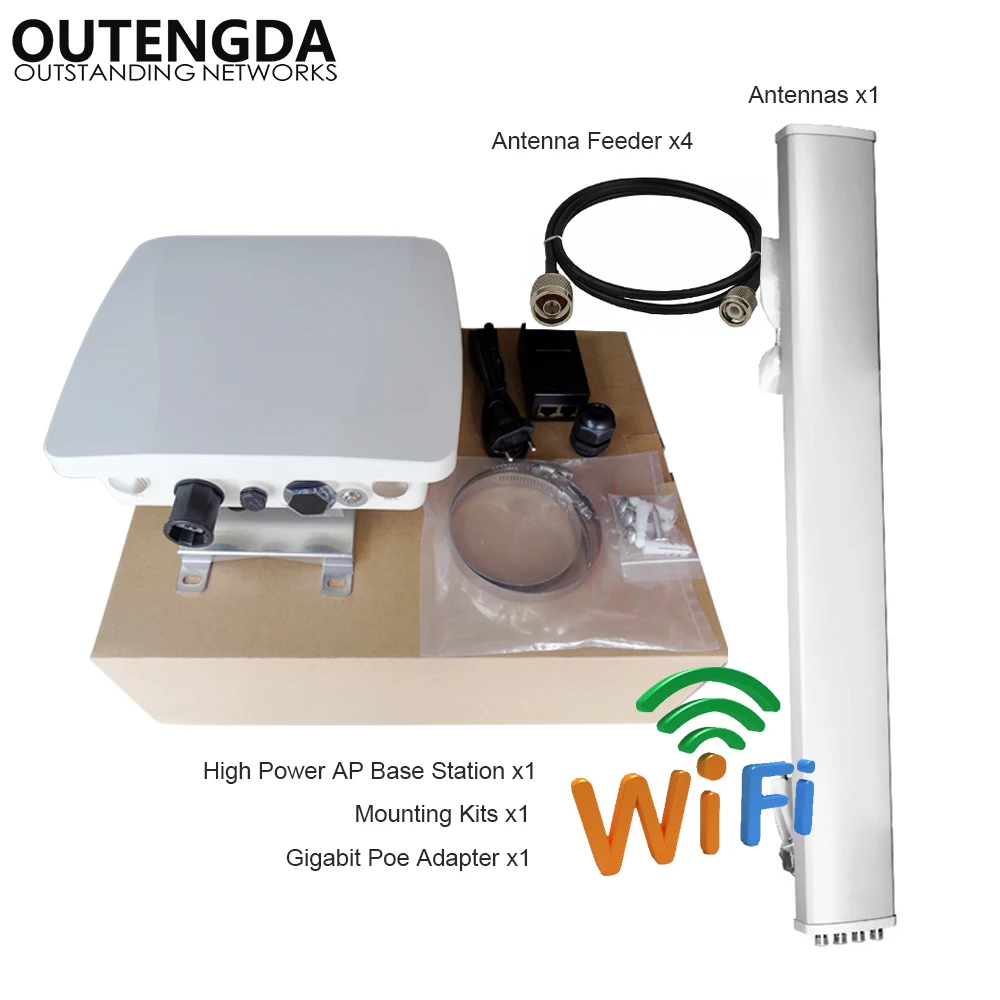

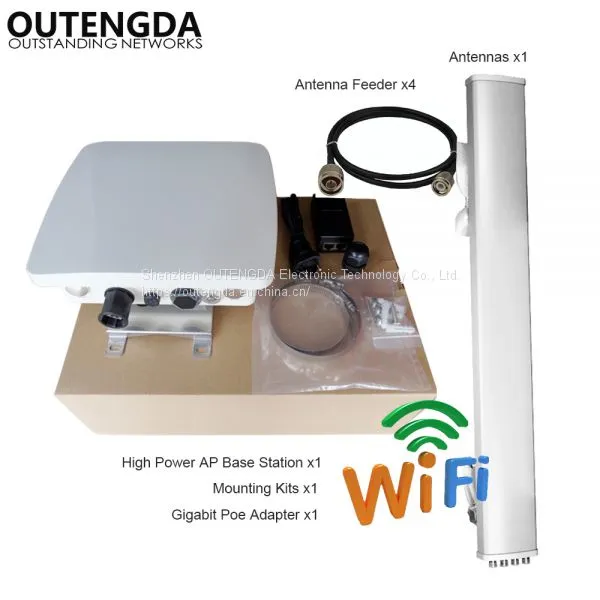

Package Contents | 1 x Base AP 1 x Directional panel antenna(14dBi&17dBi) 4 x Lightning arrester 4 x Antenna feeder 1 x Gigabit PoE Adapter 1 x Setting accessory 1 x English user manual | |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux | |
Environment | Operating Temperature: -40~50 ℃, Storage Temperature: -40~70 ℃ | |
Management | Firmware GUI , Remote Management, WLAN Controller | |

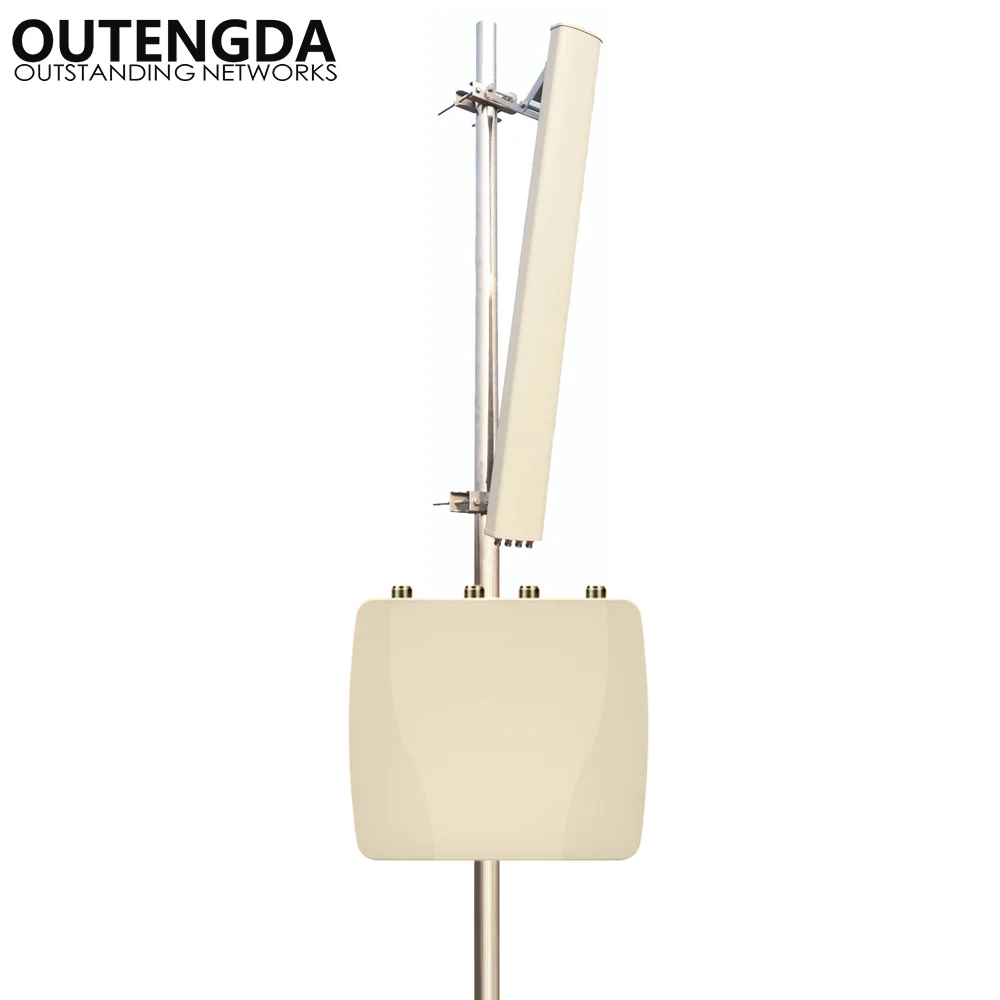

High Gain Dual Band Directional Panel Antenna Spec. | |
Frequency range（MHz） | 2400 ~ 2500 / 5725 ~ 5850 |
Polarization | Vertical and horizontal polarization |
Gain （dBi） | 14/17 |
Half-power beam width（°） | H:90 V:15 / H:90 V:7 |
Front-Back Ratio （dB） | ≥ 23 / ≥ 23 |
Input Impedance（Ω） | 50 |
Isolation （dB） | ≥ 28 |
Cross-polarization discrimination（dB） | ≥ 15@0° ≥10@+/-60° |
Superior first lobe inhibition（dB） | 15 |
VSWR | ≤ 1.5 / ≤ 1.5 |
Maximum input power（W） | 200 / 100 |
Lightning protection | DC Ground |
Specifications | |
Connector type | 4 x N Female |
Antenna size （mm） | 1000*114*54 |
Package size （mm） | 1050*130*110 |
Antenna weight （kg） | 6 |
Radome material | UPVC |
Radome color | Gray |
Mechanically adjustable inclination （°） | 0 ~ 10 |
Operating temperature （℃） | -40 ~ 60 |
Extreme wind speed （m/s） | 60 |

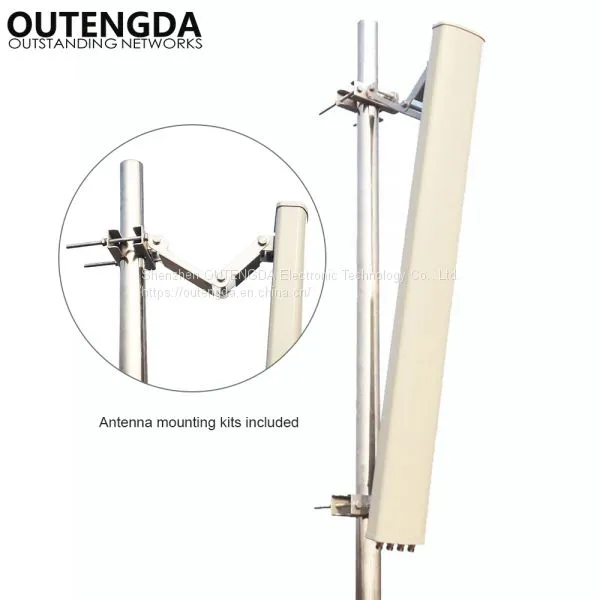

Mounting way | Pole-holding |
Mounting hardware（mm） | ￠35-￠75 |
