300Mbps 3Km Outdoor CPE AP 5.8Ghz WiFi Bridge Router 1000mW Wireless Wi-fi Repeater 14dBi Antenna 24V Poe Adapter Included
US$ 25 - 45
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
OUTENGDA
Place of Origin:
China
Model Number:
OAP180
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
5 days
Related Products
-
5GHz Outdoor CPE Elevator Wireless Bridge 1-2KM Range 450Mbps AP Router Access Point WIFI Repeater Extender Support WDS PoEUS$ 30 - 55MOQ: 2 Pieces -
802.11AC 5.8Ghz 900Mbps INTELLIGENT Wireless Bridge Point-to-point Video Transmission 10km Outdoor High-power Wireless CPE BridgUS$ 120 - 160MOQ: 2 Pieces
-
20KM Long-distance Wireless Bridge Point-to-point Transmission PTP 5.8Ghz CPE for Outdoor CCTVUS$ 650 - 850MOQ: 2 Pieces
-
15KM Long-distance Wireless Bridge Point-to-point Transmission PTP 5.8Ghz CPE for Outdoor CCTVUS$ 550 - 750MOQ: 2 Pieces
-
3KM Long Range Outdoor CPE AP WiFi Router 2.4GHz 300Mbs Wireless Wi-Fi Repeater Access Point Wifi Extender Bridge ClientUS$ 35 - 65MOQ: 1 Piece
Brand Name
OUTENGDA
Place of Origin
China
Model Number
OAP180
Type
Wireless
Certification
CE
Function
Firewall, QoS
Products Status
Stock
Application
Enterprise
WAN Ports
1
LAN Ports
Other, 1
Wireless Outdoor CPE AP WiFi Router Repeater Extender
5.8GHz 300Mbps
Atheros AR9344
14dBi High-gain ANT
3KM Distance(*PTP*)
Support Super-WDS & PoE
Noted: The 3km distance based on Point to Point Mode with 2pcs CPE (Bridge Mode). We have tested it in an open field. But the distance is more or less in practical use, as there are many factors affecting performance, such as obstacles(trees, buildings, walls...etc), and also your network environment etc. Hope you understand.Thanks!
Overviews
OAP180 is a 5.8G Outdoor CPE with the water-proof and dust-proof case, comply with IEEE 802.11a/n standard, 300Mbps data rate ensures high-speed internet access. With high power design, built in 14dBi high gain panel Antenna，greatly increase the WiFi range to 3KMs. Meanwhile, integrated passive Power over Ethernet (PoE), OAP180 can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure and lower cost; Work with AC Controller & Cloud Management System for centralized and remote management, easy configure and maintenance in mass installation.
Features
More RF Power, More WiFi Range
More RF Power up to 1000mW, equipped with 14dBi Panel Antenna, PTP WiFi distance up to 3000 meters. Meanwhile, the RF Power is adjustable for different country and different application.
300Mbps High data rate
Comply with IEEE 802.11a/n standard, 5.8G, 300Mbps High data rate.
Multi Working mode suit for different application
OAP180 supports multi-operation mode such as Gateway, Wireless AP, Repeater, WISP, WDS pass-through mode to meet with multi-application for a different environment.
PoE Power and DC Power together make installation flexibility
OAP180 Support 24V passive PoE for some areas where power outlets are not readily available; It support DC power supply for some area near to power socket, flexibility in installation.
Excellent Outdoor Weatherproof and Lighting Protection
With an outdoor waterproof and dustproof enclosure, building in lighting protection IC, OAP180 can be used in various weather conditions for stable performance.
Functions
1. Comply with IEEE802.11a/802.11n standard, 300Mbps data rate

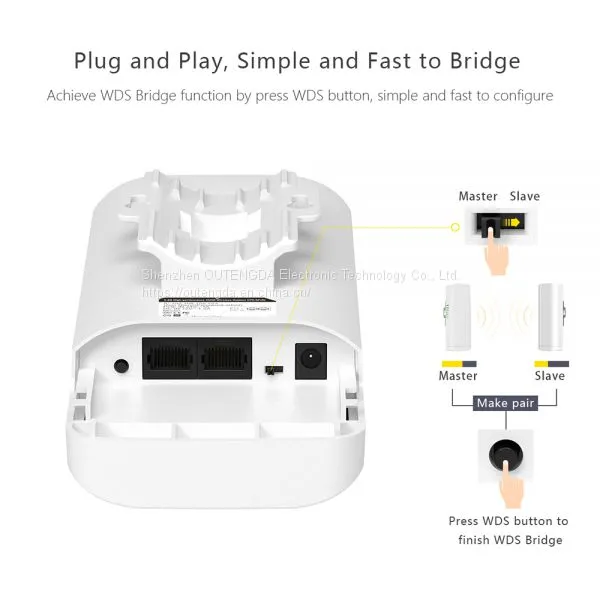

2. Support WISP, Wireless AP, WiFi Repeater(Bridge), Gateway, Super-WDS operation mode.
3. Support bridge and routing mode data forwarding and PPPoE two-layer data packet transmission
1. Comply with IEEE802.11a/802.11n standard, 300Mbps data rate
2. Support WISP, Wireless AP, WiFi Repeater(Bridge), Gateway, Super-WDS operation mode.
3. Support bridge and routing mode data forwarding and PPPoE two-layer data packet transmission
4. Support automatic power adjustment and channel selection
5. Support multi-security mode
6. Support users and traffic flow control
7. Support WLAN QoS function, support WMM protocol
8. Support MAC access control and WLAN interface
9. Support local management, access log, and security log.
10. Support 10/100Base-T interface, meet with IEE802.3-2005 standard, and MDI/MDI-X auto connection function.
11. Wide working temperature: -40 ℃～ 70 ℃, can be used in any country.
12. Support Passive PoE, PoE adapter inlcuded.
6. Support users and traffic flow control
7. Support WLAN QoS function, support WMM protocol
8. Support MAC access control and WLAN interface
9. Support local management, access log, and security log.
10. Support 10/100Base-T interface, meet with IEE802.3-2005 standard, and MDI/MDI-X auto connection function.
11. Wide working temperature: -40 ℃～ 70 ℃, can be used in any country.
12. Support Passive PoE, PoE adapter inlcuded.
Specifications
Standard |
IEEE 802.11n, IEEE 802.11a |
Frequency |
5.180 - 5.825 GHz |
Channel |
CH36 ~CH16 |
Modulation |
802.11n/802.11a: OFDM (64-QAM, 16-QAM, QPSK, BPSK |
Data Rate |
11n: up to 300Mbps(dynamic) 11a: up to 54Mbps(dynamic) |
Protocol |
CSMA/CA 、 CSMA/CD 、 TCP/IP 、 ICMP 、 NAT 、 PPPoE, DHCP, Wired static, Wifi Client, UDP, DDNS 、 |
Operation Mode |
AP, Gateway, Bridge, WISP |
Security |
64/128bit WEP WPA(AES 、 TKIP with IEEE 802.1x) WPA2(AES 、 TKIP with IEEE 802.1x) WPS |
RF Output Power |
802.11n: 25±2dBm ， OFDM module 802.11a: 27±2dBm ， OFDM |
Receive Sensitivity |
11n : -72±2dBm@10% PER 11a : -75±2dBm@10% PER |
Antenna |
14dBi MIMO Panel antenna |
Size(mm) |
L: 208mm, W: 86mm, H: 43mm |
Item Weight |
0.4KGS |

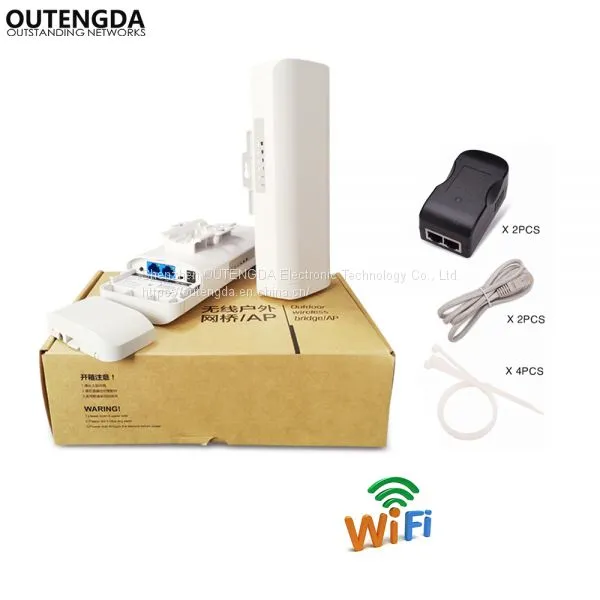

Package OAP180; 24V/0.5A PoE Adapter; Setting Accessory; LAN Cable; English User Manual
