Home > Products > Outdoor AP with External ANT > Long Range 400meters Wifi Transmitter Extender 2.4GHz 300Mbs Wireless Router Outdoor AP WiFi Hotspot Base Station with 14dbi ANT
Long Range 400meters Wifi Transmitter Extender 2.4GHz 300Mbs Wireless Router Outdoor AP WiFi Hotspot Base Station with 14dbi ANT
USD $245 - $335
/ Piece
1 Piece(Min.Order)
- 23456 Piece / Pieces per Month
- SHENZHEN
- T/T PayPal Other
- 5 days
Product Details
| Brand Name: | OUTENGDA | Place of Origin: | China | Model Number: | HW9341 |
| Type: | Wireless | Certification: | CE | Function: | Firewall, QoS |
| Products Status: | Stock | Application: | Enterprise | WAN Ports: | 1 |
| LAN Ports: | Other |
Product Description
Model: HW9341
Product name: 300Mbps Outdoor Wireless AP/Repeater/Extender
PRODUCT DESCRIPTIONS
HW9341 is a high-performance outdoor CPE/AP with Qualcomm Chipset, with detachable outdoor 14dBi directional panel antenna and adjustable high RF power, make this outdoor access point with circular sector WiFi coverage Radiusabout 400 meters Max.. It supports Wireless AP, Gateway, WiFi Repeater, WISP operation mode, effective solution for outdoor long range WiFi coverage application. HW9341 AP main box with the metal outdoor shell and panel ANT with material UPVC outdoor shell to avoid the damage from outdoor rain, dust, sunshine, and thunderstorm weather, adaptive to the various environment also.
Features
MIMO Technology, 300Mbps Data Rate
Comply with IEEE 802.11b/g/n standard, 2.4GHz frequency, 2T2R protocol with 300Mbps data rate.
Various Operation Modes for different network environment
It supports Wireless AP, Gateway, WiFi Repeater, Bridge, WISP, WDS operation mode, then with SMA connector for detachable Omni/panel antenna, the user can flexibly choose a suitable wireless mode to do WiFi Coverage or PTP, PTMP, MPTMP applications.
Excellent Outdoor Weatherproof and Lighting Protection
With metal waterproof, dustproof and sunscreen shell, temperature adaptive and board protective to work in the harsh outdoor environment, meanwhile, the auxiliary cooling function makes HW9341 work normal at different environment.
14dBi 2.4G dual polarization directional antenna
With 14dBi high power dual polarization directional antenna, make this outdoor access point with WiFi coverage(circular sector) radius about 400 meters.
SPEC.
Hardware
Chipset Qualcomm Atheros 9531
Wireless IEEE 802.11b/g/n, 2T2R 300Mbps MIMO Technology
Memory 128MB DDR2 RAM
Flash 16MB
Interface 1*10/100Mbps RJ45 Port, support 12~24V PoE
1* Reset Button to restore factory default
Antenna 2 * SMA Connector, Outdoor use External Directional Antenna
LED Indicator Power, WIFI
Power 24V/1A Passive PoE, Poe adapter included
RF Data 2.4~2.4835GHz; Korea, Japan, ETSI, FCC
Data Rate 300Mbps
AP main-box size 310mm x 160mm x 80mm(12.21in x 6.3in x 3.15in)
Antenna Size 500mm x 114mm x 54mm(19.7in x 4.49in x 2.13in)
Antenna SPEC. 2.4GHz Dual polarization directional antenna with 14dBi high-gain
Antenna Transmission Angle 120° Horizontal，15° Vertical
Firmware
Operation Mode Gateway, Repeater, WISP, Wireless AP
Network Protocol IEEE 802.3(Ethernet)
IEEE 802.3u(Fast Ethernet)
IEEE 802.11b/g/n(2.4G WLAN)
Wireless Setting Wireless Analyzer
Distance Control 802.1xACK Time output
Multi-SSID Maximum 4 SSID
BSSID
Wireless Security WEP Encryption-64/128/152 bit
WPA/WPA2 Personal Encryption (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise Encryption (WPA-EAP using TKIP)
Hide SSID
System Setting Web-based configuration (HTTP/Telnet)
Firmware Upgrade Upgrade firmware via web browser or TFTP
Administration Management Admin Username/Password can be configured
System Monitoring Device and Networking status statistic
System Log Support local log, host log, log file exporting
Reset to factory defaults
Backup device configuration, then restore this configuration if need
Environment
Temperature Operating Temperature: 0°~55°
Storage Temperature: -20°~ 70°
Humidity Operating Humidity 5%~95% RH Non-condensing
Storage Humidity 5%~95% RH Non-condensing

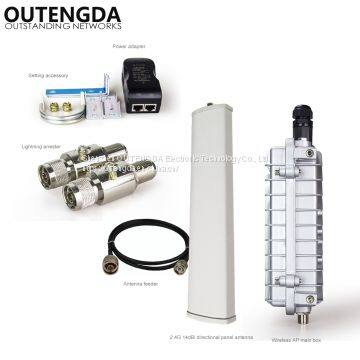

Package
HW9341 unit * 1
2.4G dual polarization 14dBi directional antenna * 1
lightning arrester * 2
Antenna Feeder * 2
24V/1A PoE Adapter * 1
Setting accessory* 1
User Manual* 1
