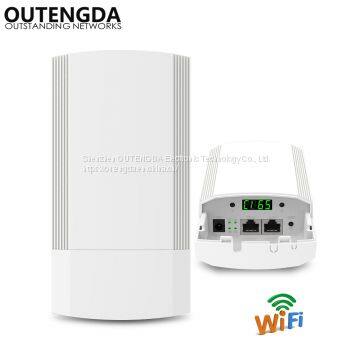

OAP80 is an 11ac 5G outdoor CPE with LED display. It complies with 802.11ac Wi-Fi standard, data rate up to 450Mbps, Built in 8dBi panel antenna, the Wi-Fi range to 1000~2000 meters.
5.8GHz Indoor Data Transmission
Adopts 5.8GHz frequency, 11ac new generation wifi technology, less interference, fast and stable wireless speed, and better signal. 450Mbps high bandwidth, supply high speed wireless transmission. Make you enjoy high resolution video and high speed work.
Dust-proof Enclosure, Convenient to maintenance
White color, seamless injection molding, dust-proof & water-proof design, conciseness and elegant.
Wireless Bridge(Host CPE/Client CPE/Signal Strength/IP Address) LED Display
With visiable LED display and signal strength automatic detection function for quickly building point to point and point to multi point wireless connection. Easily installation and debugging. Save human cost.
Multiple Operation Mode
Super WDS/Gateway/Repeater/WISP/Wireles AP operation mode, can meet multiple Wi-Fi transmission scheme demands.
Adjustable RF Power
The transmission RF power is adjustable based on environment. Cut down RF power in place with high density of people or wireless AP, or increase RF power in long range place to improve the performance.
Indoor/Outdoor Application, More than 1KM Transmission Range
PTP/PTMP distance is more than 1000meters, simply transmit 4K elevator video over 60 floors buildings.
Special for Elevator Video Transmission
Adopts 5.8GHz frequency, 450Mbps high speed wireless transmission, supply clear and smooth monitoring video.
5.8G Broadband Solution
WDS Fast Bridge Mode
PTP/PTMP Connection
Mobile Web Advance Configuration

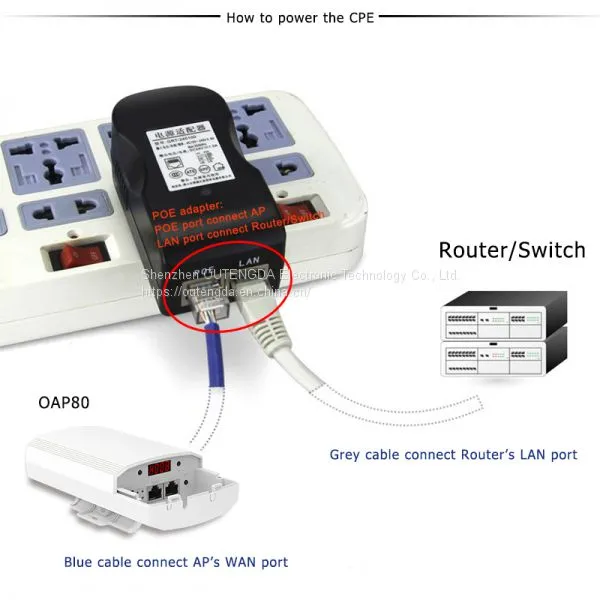

DC/PoE Power Available
Simple Installation and Debugging
Hardware: | ||
Chipset | RTL8881AN | |
Standard | 802.11ac/a/an | |
Memory | 64MB RAM | |
Flash | 8MB | |

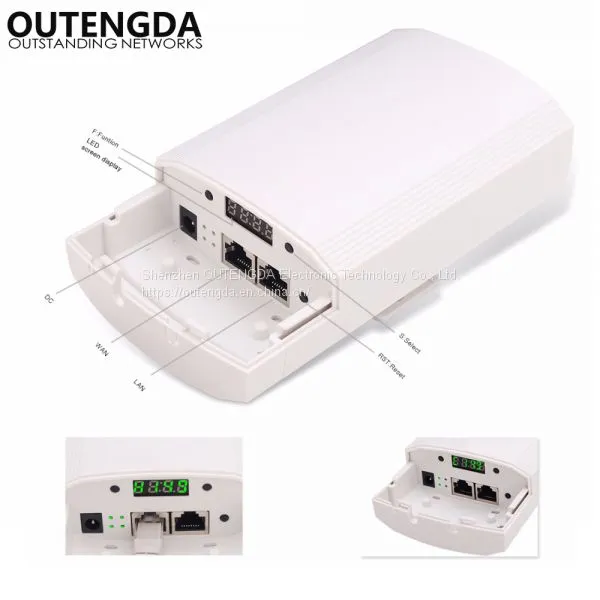

Interface | 1 * 10/100Mbps RJ45 WAN Port | |
1 * 10/100Mbps RJ45 LAN Port | ||
1 * LED display, show operation mode, channel, signal strength | ||
1 * F(Function) switch button for LED display | ||
1 * S(Select) button for LED display | ||
1 * DC Injector | ||
1 * Reset button, press 15 seconds to revert to default setting, press 1 second to finish LED display configuration | ||
LED Indicator | PWR(Power), WAN, LAN, Wi-Fi | |
Antenna | Build in 11dBi MIMO Panel Antenna, 5GHz | |
Water-Proof Level | IP65 | |
Power consumption | 24V PoE<5W | |
Size | 168mm*88mm*57.6mm | |
Weight | 234.5g | |
RF Data： | ||
Frequency | 5GHz: 802.11ac/a | |
5GHz | ||
Country code | FCC、IC、ETSI、MKK、MKK1、MKK2、MKK3、NCC、RUSSIAN、CN | |
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM | |
DSSS = DBPSK, DQPSK, CCK | ||
Throughput | 450Mbps | |
RF Power | 802.11a: 54M 17±2DB, 6M 20±2DB. 802.11n HT20: MCS7 16±2DB, MCS0 19±2DB. 802.11n HT40: MCS7 16±2DB, MCS0 19±2DB. 802.11ac HT80: MCS9 14±2DB, MCS0 17±2DB. | |
Receive Sensitivity | 802.11a: -74dbm@54Mbps; -90dbm@6Mbps. 802.11n HT20: -70dbm@MCS7, -88dbm@MCS0 . 802.11n HT40: -68dbm@MCS7, -86dbm@MCS0 . 802.11ac HT80: -55dbm@MCS9, -80dbm@MCS0 . | |
EVM | 802.11a: ≤-25 DB 802.11n: ≤-28 DB 802.11ac: ≤-32 DB | |
PPM | ±20ppm | |
Firmware Features: | ||
Operation mode | Wireless AP, Gateway, Wi-Fi Repeater, WDS | |
WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) | |
Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption | |
SSID | Multiple SSID up to 4 | |
Firewall | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter | |
Protocols | IPv4 | |
Others: | ||

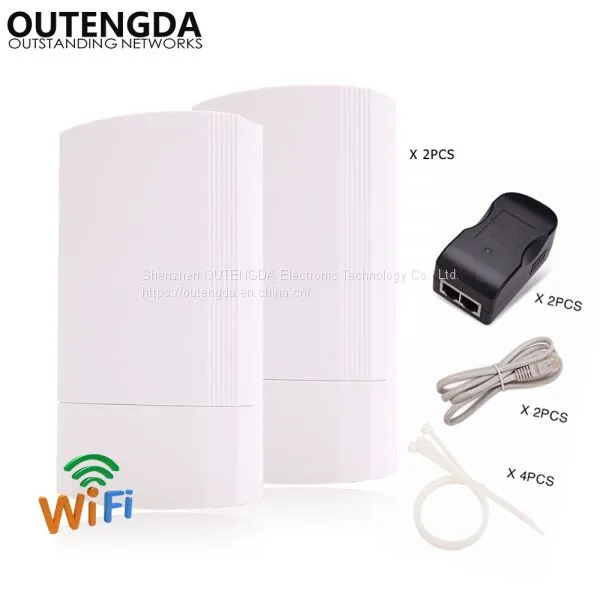

Package Contents | 450Mbps Outdoor CPE Ethernet Cable Quick Installation Guide Setting Accessory POE Adapter | |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux | |
Environment | Operating Temperature:-30~55 ℃ Max Operating Temperature: -40~70 ℃ (Throughput lower) Storage Temperature: -40~70 ℃ | |
Management | Firmware GUI, Remote Management, WLAN Controller | |
