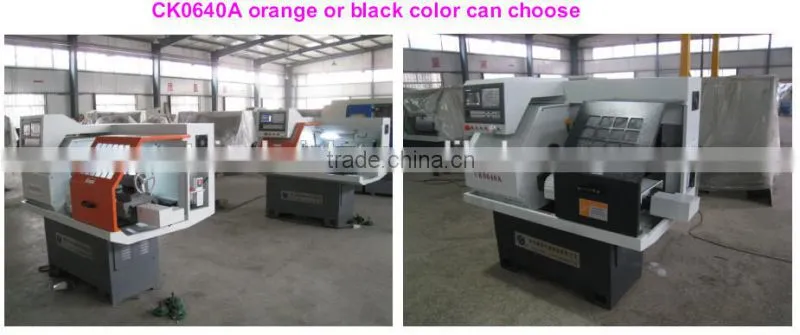

CK0640A Miniature and Small CNC Lathe Manufacture with tailstock and turret
Model |
CNC LATHE MACHINE CK0640A |
|
Max. swing dia. over bed |
300mm |
|
Max. swing dia. Slide over |
100mm |
|
Max. length of work piece |
Collect200mm/Chuck120mm |
|
Spindle nose |
A2-5 |
|
Through-hole diameter of spindle(mm) |
Φ48 |
|
Through-hole diameter of drawn pipe(mm) |
Φ40 |
|
X/Z-axis repeatability(mm) |
0.012/0.013 |
|
Number of turret positions |
gang-type tool carrier |
|
Spindle speeds |
150-2200r/min |
|
X axis travel(mm) |
260mm |
|
Z axis travel(mm) |
240mm |
|
X/Z-axis fast moving speed |
X:5m/min Z:8m /min |
|
CNC system |
GSK |
|
Max. length of work piece :Collect200/Chuck120 |
Main motor power |
3KW |
|
Overall dimensions(L*W*H) |
1600×1000×1550 |
|
Net weight/gross weight |
1000kg |
Standard Accessories |
Optional Accessories |
GSK system |
Siemens/Fanuc/GSK/KND etc |
Pneumatic spring Clip |
Manual chuck Pneumatic chuck or Hydraulic chuck |

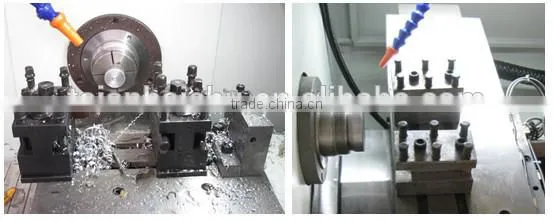

gang-type tool carrier |
4-station turret |
Lubrication pump(automatic) |
Pneumatic tailstock, Hydraulic tailstock |
Work light Tool box |
|
Voltage:3 phase 380v 50HZ |
Automatic feeding |
User’s manual operational manual |
Other as requirements |
