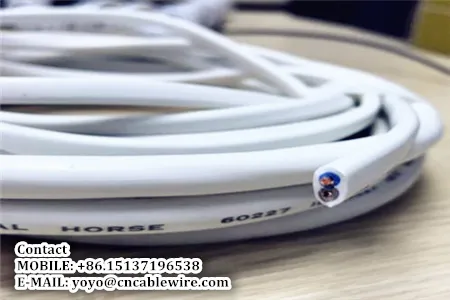

PVC Flat-Twin Cu Cable
Description
1.Operating temperature: 70℃
2.Rated voltage: 300/500V
3.Standard: JB/T8734.2,BS6004
4.Model: BVVB
5.Bare or tinned,stranded or solid copper conductor
6.Flame retardant colour-coded PVC insulation
7.Flame retardant PVC jacket
Technical specification
| Cross-sectional Area | No. & diameter of wire | Reference overall diameter | Reference weight | Min. insulation resistance at 70℃ |
| mm2 | N/mm | mm | Kg/km | MΩ.km |
| 2x0.75 | 1/0.98 | 3.8x6.2 | 42 | 0.012 |
| 2x1.0 | 1/1.13 | 4.1x6.6 | 50 | 0.011 |
| 2x1.5 | 1/1.38 | 4.4x7.2 | 63 | 0.011 |
| 2x2.5 | 1/1.78 | 5.2x8.6 | 93 | 0.010 |
| 2x4.0 | 7/0.85 | 6.0x10.4 | 141 | 0.0080 |
| 2x6.0 | 7/1.04 | 7.0x12.4 | 202 | 0.0065 |
| 2x10 | 7/1.35 | 8.6x14.8 | 315 | 0.0065 |
Application
1.Used for fixed wiring
2.Used for high mechanical protection required or humid environment, etc
3.Can be laid out directly or hidden
