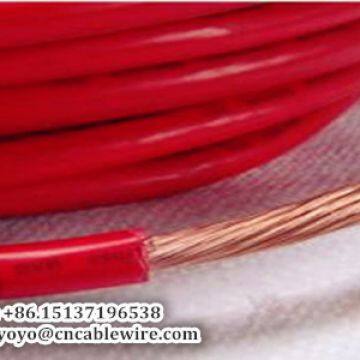

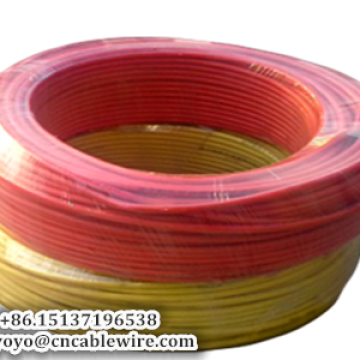

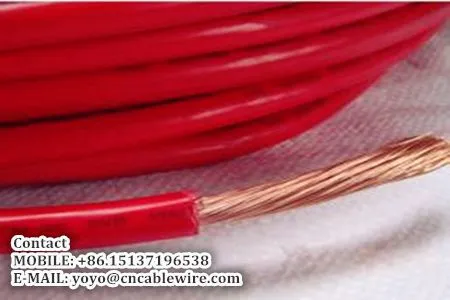

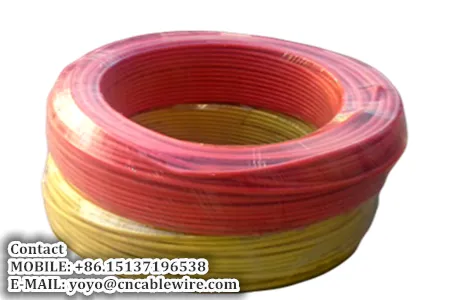

BVR Copper Wire
Introduction of BVR Copper Wire
Product: BVR Copper Wire
Academic name: Copper Core PVC Soft Wire
Model: BVR
Standard: JB8734-2012
Conductor material: Non-oxidized copper core (copper content: 99.99%)
Number of cores: single core
Insulation materials: PVC
Specifications: 0.75~185mm²
Rated voltage: 450/750V
Colour: red, yellow, blue, green, black Yellow-green color etc
Application of BVR Copper Wire
This product is suitable for AC rated voltage 450 / 750V and below, requiring the use of fire-retardant occasions of electrical, instrumentation, telecommunications equipment, power equipment and lighting lines fixed laying.
Features of BVR Copper Wire
The long-term permissible operating temperature of all types of cables shall not exceed 70 ℃. The laying temperature of the cable shall not be less than 0 ℃. The outer diameter (D) is less than 25 mm cable allowed bending radius should not less than 4D. The outer diameter (D) of 25mm and above the allowable bending radius of cable should not be less than 6D.
Structure diagram
Model of BVR Copper Wire
The insulation materials and sheath materials of BVR copper wire is PVC. BVR copper wire according to the different properties, the product can be divided into insulation, flame retardant, fire-resistant three categories, different uses of different categories:
|
Model |
Designation | Use occasion |
| BVR | Copper Core PVC Soft Wire | Power, electrical instruments and automation devices |
| ZR-BVR | Copper Core PVC Flame-retardant Soft Wire | With a fire-retardant requirements of electrical, instrumentation, telecommunications equipment, power equipment and lighting lines fixed laying. |
| NH-BVR | Copper Core PVC Fire-resistant Soft Wire |
Control, monitoring circuits, power, line protection and other occasions, as well as large-scale construction, petroleum, metallurgy, chemical industry, cable, ship, personnel-intensive industries have higher flame retardant and fire resistance requirements |
Technical parameters
| Nominal cross section (mm²） |
Nominal insulation thickness（mm） | Upper limit of average outer diameter（mm） | 20℃ Maximum conductor resistance MΩ.km |
70℃ Minimum insulation resistance MΩ.km |
|
| Copper core | Tinned copper core | ||||
| 0.75 | 7 | 2.9 | 24.5 | 24.8 | 0.013 |
| 1 | 7 | 3.1 | 18.1 | 18.2 | 0.012 |
| 1.5 | 7 | 3.4 | 12.1 | 12.2 | 0.011 |
| 2.5 | 19 | 4.1 | 7.41 | 7.56 | 0.011 |
| 4 | 19 | 4.8 | 4.61 | 4.7 | 0.009 |
| 6 | 19 | 5.3 | 3.08 | 3.11 | 0.0084 |
| 10 | 49 | 7.3 | 1.83 | 1.84 | 0.0072 |
| 16 | 49 | 8.6 | 1.15 | 1.16 | 0.0062 |
| 25 | 98 | 10.2 | 0.727 | 0.734 | 0.0058 |
| 35 | 133 | 11.7 | 0.524 | 0.529 | 0.0052 |
| 50 | 133 | 13.9 | 0.387 | 0.391 | 0.0051 |
| 70 | 189 | 16 | 0.268 | 0.27 | 0.0045 |
| 95 | 259 | 18.2 | 0.193 | 0.195 | 0.0044 |
| 120 | 259 | 19.8 | 0.153 | 0.154 | 0.004 |
| 150 | 336 | 22.2 | 0.124 | 0.126 | 0.004 |
| 185 | 427 | 24.6 | 0.0991 | 0.1 | 0.004 |
Note: NH-BVV, ZR-BVV and BVV for the same series, so the structural parameters are the same
