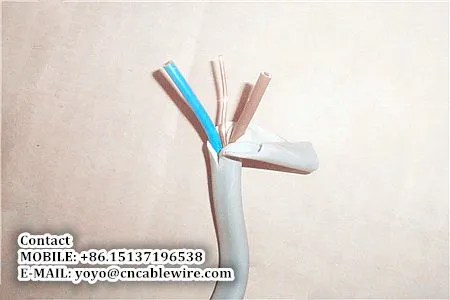

6242Y Cable
This product is used for high wiring load, such as household appliances wiring.
Standard: BS 6242
Rated voltage: 300/500V
Cable structure
Conductor: Two-core bare copper grounding wire
Insulation: PVC insulation at 70°C
Sheath: PVC at 70°C
Technical specification of Low voltage house wiring cable
|
Type |
6242Y | 6242Y | |
| Nominal cross-sectional area | No. x mm2 | 2x1.5+1x1 | 2x2.5+1x1.5 |
| Insulated cores | No. of cores | 2 | 2 |
| No. of wires | 1 | 1 | |
| Wires Dia. (mm) | 1.38 | 1.78 | |
| Dia. of conductor (mm) | 1.38 | 1.78 | |
| Thickness of insulation (mm) | 0.7 | 0.7 | |
| Dia. Of cores | 2.78 | 3.18 | |
| Grounding core | No. of cores | 1 | 1 |
| No. of wires | 1 | 1 | |
| Wires Dia. (mm) | 1.13 | 1.38 | |
| Dia. of conductor (mm) | 1.13 | 1.38 | |
| Thickness of insulation (mm) | 0 | 0 | |
| Dia. of cores | 1.13 | 1.38 | |
| Sheath | Thickness (mm) | 1.0 | 1.0 |
| Dimension | Width (mm) | 8.69 | 9.74 |
| Height (mm) | 4.78 | 5.18 | |
| Weight of cable (kg/km) | 86.6 | 116.3 | |
| Weight of material of cable | Copper (kg/km) | 35.9 | 58.2 |
| Insulation PVC (kg/km) | 13.5 | 16.1 | |
| Sheath PVC (kg/km) | 37.1 | 41.9 | |
| Coefficient | 0.85 | 0.85 | |
Features
1.Good flexibility, wear resistance, oil resistance
2.High temperature, easy to peel, easy to cut
3.Working temperature: -5℃ to +70℃
