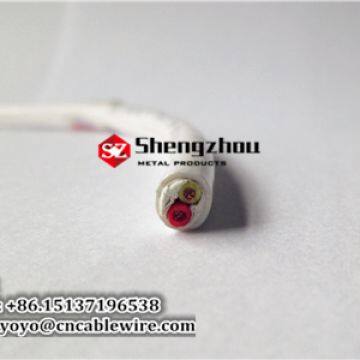

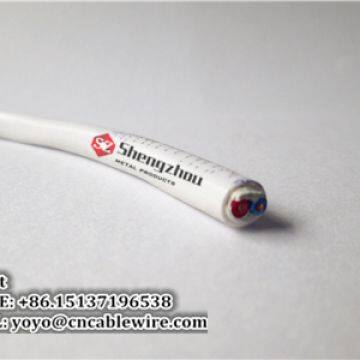

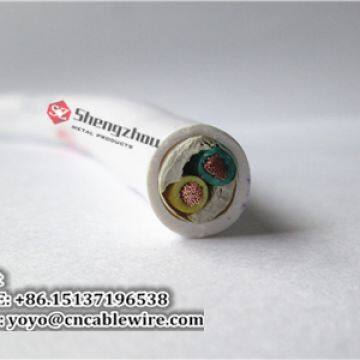

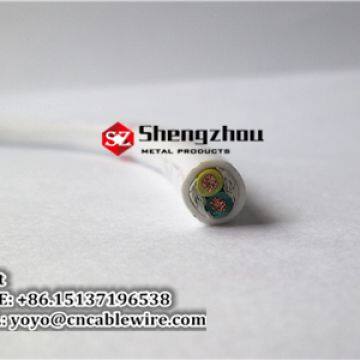

Two Core RVV Cable
Copper core PVC insulated PVC sheathed flexible wire (RVV) commonly known as soft sheath wire. The rated voltage is 300V/500V, and the number of cores is divided from 2 cores to 24 cores according to the national standard. Two or more copper cores are twisted to form a cable, the outer direction of the strangulation direction is right. It is widely used in the control installation of instruments, instruments, building intercom, monitoring and monitoring.
Product Performance of RVV Cable
Product Name: RVV wire and cable;
Rated voltage: 300V/500V;
Conductor: Multi-strand copper conductor, in accordance with GB/T 3956 Category 5 (equivalent to IEC60228.5);
Insulation: Polyvinyl chloride mixture material(PVC);
Sheath: Flexible Polyvinyl chloride mixture material(PVC);
Number of cores: Two;
Cross sectional area: 0. 5, 0. 75-2. 5 mm;
Test voltage: 2000V, 5min;
Insulation resistance: > 200m ohm × km;
Operating temperature: -30~ +70℃;
Bending radius: 15×cable outer diameter;
Flame retardancy: IEC 60 332.1;
Reference standard: GB 5023、IEC60227、HD VDE21.5 S3;
Packing specifications: 100m,500m,1000m;
Technical Parameters of RVV Cable
|
Number of cores × standard section (mm2) |
2×0.5 | 2X0.75 | 2X1 | 2X1.5 | 2X2.5 | |
|
Specification |
16/0.20 | 24/0.20 | 32/0.20 | 30/0.25 | 49/0.25 | |
|
Insulation thickness (mm) |
0.5 | 0.6 | 0.6 | 0.7 | 0.8 | |
|
Sheath thickness (mm) |
0.6 | 0.8 | 0.8 | 0.8 | 1.0 | |
|
Conductor resistance at 20℃ Ω/km ≦ |
Copper core |
39.0 | 26.0 | 19.5 | 13.3 | 7.98 |
| Galvanized copper core | 40.1 | 26.7 | 20.0 | 13.7 | 8.21 | |
Application of RVV Cable
RVV cable is mainly used in medium and light mobile appliances, instrumentation, household appliances, power lighting and other flexible use places, can transmit control signals, but also can transmit power signals, but also suitable for laying in bridges and hoses. At the same time, this product has obtained the CCC and CE mark certification, in line with the requirements of HD (EU Uniform Coordination Standard), not only applicable to the Chinese market, but also to the European market. According to the HD standard, this cable type is H05VV-F.
Gongyi Shengzhou Metal Products Co., Ltd. is a professional China Wire and Cable Manufacturers, mainly supply YC Rubber Sheathed Cable,YH Rubber Cable,RVV Cable,YJV Cable,Aluminium Conductor Steel Reinforced(ACSR),Aerial Insulated Cable,ABC Cable,House Electric Wire, etc. series of wire and cable products, sincerely welcome everyone to visit.
