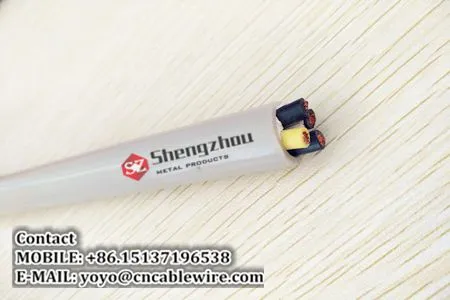

4 Core RVV Cable
RVV wire full name copper core PVC insulated PVC sheathed flexible wire, also known as light PVC sheathed flexible wire, commonly known as soft sheathed wire, is a kind of sheathed wire. The rated voltage is 300V / 500V, the number of cores from 2 cores to 24 cores is divided according to the national standard. Two-core or more core wire twisted composite cable, the outer direction of the cable is twisted in the right direction.
Performance of 4 Core RVV Cable
Product name: 4 Core RVV Cable.
Rated voltage: 300V/500V.
Conductor: Multi-strand copper conductor, in accordance with GB/T 3956 Category 5 (equivalent to IEC60228.5).
Insulation: PVC.
Sheath: Flexible PVC mix.
Number of core wires: 4 cores.
Sectional area: 0.75mm2,1mm2,1.5mm2,2.5mm2.
Test voltage: 2000V, 5min.
Insulation resistance: >200M ohms X KM.
Operating temperature: -30~ +70 ℃.
Bending radius: 15 X cable outer diameter.
Flame retardant properties: IEC 60 332.1.
Reference standards: GB 5023, IEC60227, HD VDE21.5 S3.
Technical Parameters of 4 Core RVV Cable
|
Number of cores × standard section (mm2) |
4X0.75 | 4X1 | 4X1.5 | 4X2.5 | |
|
Specification |
24/0.20 | 32/0.20 | 30/0.25 | 49/0.25 | |
|
Insulation thickness (mm) |
0.6 | 0.6 | 0.7 | 0.8 | |
|
Sheath thickness (mm) |
0.8 | 0.9 | 1.0 | 1.1 | |
|
Conductor resistance at 20℃ Ω/km ≦ |
Copper core |
26.0 | 19.5 | 13.3 | 7.98 |
| Galvanized copper core | 26.7 | 20.0 | 13.7 | 8.21 | |
Application of 4 Core RVV Cable
RVV cable is mainly used in light mobile appliances, instrumentation, household appliances, power lighting and other flexible use places, can transmit control signals, but also can transmit power signals, but also suitable for laying in bridges and hoses. At the same time, this product has obtained the CCC and CE mark certification, in line with the requirements of HD (EU Uniform Coordination Standard), not only applicable to the Chinese market, but also to the European market.
