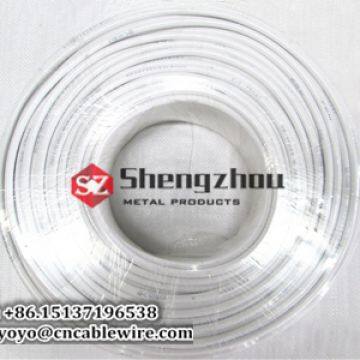

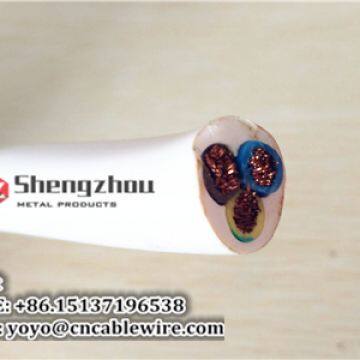

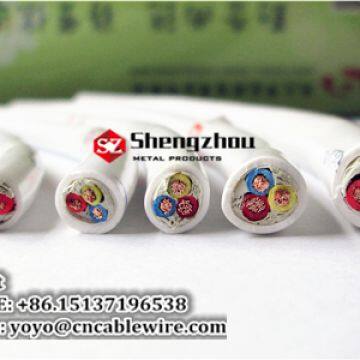

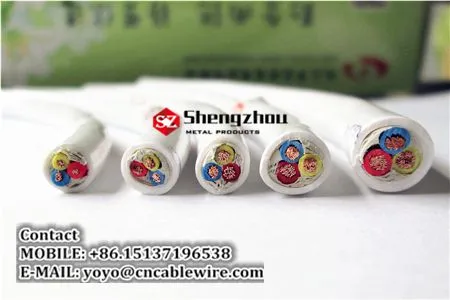

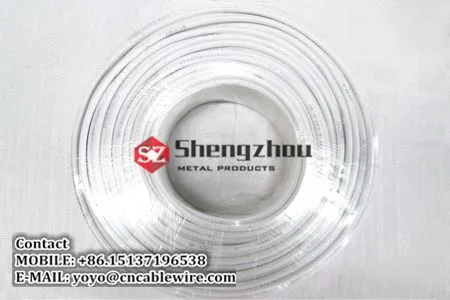

3 Core RVV Flexible Cable
Copper core PVC insulated PVC sheathed flexible wire (RVV) is commonly known as soft sheathed wire, rated voltage 300V/500V, core number from 2 cores to 24 cores according to national standard color separation, two cores and more than two cores can be twisted into cables, the outer stranding direction is right, which is widely used in the control installation of instruments, instruments, building intercom, monitoring and monitoring.
Technical Parameters of 3 Core RVV Flexible Cable
|
Number of cores × standard section (mm2) |
3×0.5 | 3x0.75 | 3x1 | 3x1.5 | 3x2.5 | |
|
Specification |
16/0.20 | 24/0.20 | 32/0.20 | 30/0.25 | 49/0.25 | |
|
Insulation thickness (mm) |
0.6 | 0.6 | 0.6 | 0.7 | 0.8 | |
|
Sheath thickness (mm) |
0.6 | 0.8 | 0.8 | 0.9 | 1.1 | |
|
Conductor resistance at 20℃ Ω/km ≦ |
Copper core |
39.0 | 26.0 | 19.5 | 13.3 | 7.98 |
| Galvanized copper core | 40.1 | 26.7 | 20.0 | 13.7 | 8.21 | |
Product Performance of 3 Core RVV Flexible Cable
Product Name: RVV cable;
Rated voltage: 300V/500V.
Conductor: Multi-strand copper conductor, in accordance with GB/T 3956 Category 5 (equivalent to IEC60228.5).
Insulation: Polyvinyl chloride mixture (PVC).
Sheath: Flexible PVC mix (PVC);
Number of cores: 3 cores;
Cross-sectional area: 0.5-2.5mm2;
Test voltage: 2000V, 5min.
Insulation resistance: >200M ohms X Km.
Operating temperature: -30~ +70 ℃.
Bending radius: 15 X cable outer diameter.
Flame retardant properties: IEC 60 332.1.
Reference standards: GB 5023, IEC60227, HD VDE21.5 S3.
Packing specifications: 100m, 500m, 1000m.
Application of 3 Core RVV Flexible Cable
RVV cable is mainly used in flexible use places such as medium and light mobile appliances, instrumentation, household appliances, power lighting, etc. It can transmit control signals and transmit power signals. It is also suitable for laying in bridges and hoses. At the same time, this product has obtained the CCC and CE mark certification, in line with the requirements of HD (EU Uniform Coordination Standard), not only applicable to the Chinese market, but also to the European market.
