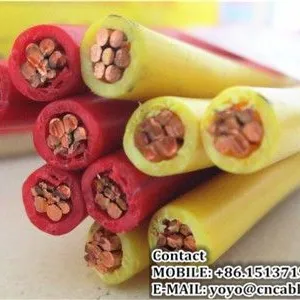

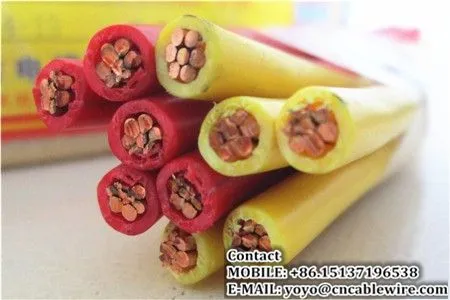

H07V-R 10mm2 Cable
Negotiable
MOQ: 10000 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Gongyi Shengzhou Metal Products Co.,Ltd.
Place of Origin:
China
Model Number:
H07V-R Cable
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
Brand Name
Gongyi Shengzhou Metal Products Co.,Ltd.
Place of Origin
China
Model Number
H07V-R Cable
Type
Insulated
Conductor Material
Copper
H07V-R 10mm2 Cable
Introduction of H07V-R cable
H07V-R cable is a copper conductor wire. The corresponding national standard model is BV,used for soft connections in electrical appliances, instruments, and electrical devices. Connect the removable assembly line and connect to a device with round-trip bending motion,can be used as communication equipment and electronic transmission equipment, such as electrical control cabinets, distribution boxes, telephone exchanges and other occasions.
Cable Structure of H07V-R cable
Conductor: bare copper conductors
Insulation: PVC insulation
Finished cable:core wire laminated twisted synthetic cable
Technical Parameters of H07V-R cable
Rated voltage: 450V/750V
Minimum bending radius:
Fixed laying: 12.5 x D (outside diameter of cable)
Mobile installation: 12.5 x D (outside diameter of cable)
Operating temperature:
Fixed laying: -30 to +80℃
Mobile installation: -5 to +70℃
Detailed Specifications of H07V-R cable
| Nominal Cross Section Area |
Wire Core Number/ Monofilament Diameter |
Insulation Nominal Thickness |
Cable Outer Diameter ≦ |
| mm2 | mm | mm | mm |
| 1.5 | 1/1.38 | 0.7 | 3.3 |
| 1.5 | 7/0.52 | 0.7 | 3.5 |
| 2.5 | 1/1.78 | 0.8 | 3.9 |
| 4 | 1/2.25 | 0.8 | 4.4 |
| 6 | 1/2.76 | 0.8 | 4.9 |
| 10 | 7/1.35 | 1.0 | 7.0 |
| 16 | 7/1.70 | 1.0 | 8.0 |
| 25 | 7/2.14 | 1.2 | 10.0 |
Product Features of H07V-R cable
Insulation mechanical properties, excellent performance, bright colors, use more secure.
Gongyi Shengzhou Metal Products Co., Ltd. is a professional China Wire and Cable Manufacturers, mainly supply YC Rubber Sheathed Cable,YH Rubber Cable,RVV Cable,YJV Cable,Aluminium Conductor Steel Reinforced(ACSR),Aerial Insulated Cable,ABC Cable,House Electric Wire, etc. series of wire and cable products, sincerely welcome everyone to visit.
