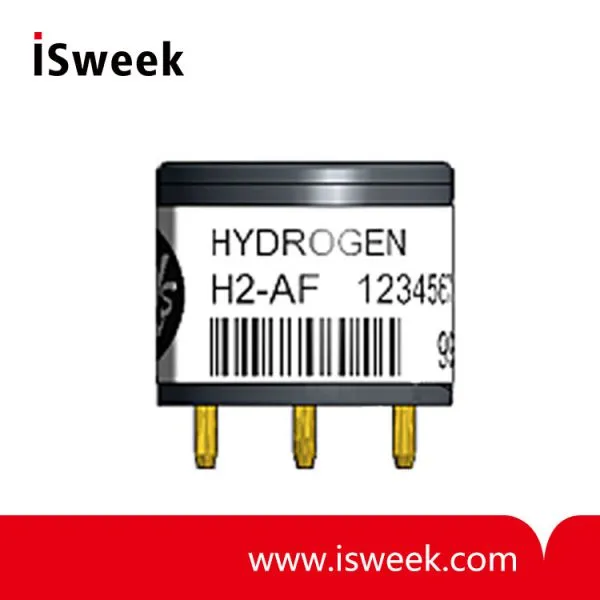

H2-AF Hydrogen Sensor (H2 Sensor)

Week Technology Ltd
H2-AF Hydrogen Sensor (H2 Sensor) thumbnail-1
H2-AF Hydrogen Sensor (H2 Sensor) photo-1
US$ 30 - 70 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Alphasense
Place of Origin:
United Kingdom
Model Number:
H2-AF
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Alphasense
Place of Origin United Kingdom
Model Number H2-AF
Usage Gas Sensor
Theory Other, Electrochemical Gas Sensor
Output Analog Sensor

H2-AF Hydrogen Sensor H2 Sensor Description
Alphasense is expanding its line of electrochemical Toxic Gas Sensors to address industry-specific requirements, including emissions monitoring, process safety, environmental monitoring and VOCs.

Hydrogen (H2)
The Hydrogen sensor has excellent ppm sensitivity for low concentrations to 2,000ppm H2. The very low sensitivity to CO makes this one of the most selective Hydrogen sensors on the market.
As with all Hydrogen sensors, temperature compensation for sensitivity must be applied carefully.
Available in A series.

H2-AF Hydrogen Sensor H2 Sensor PERFORMANCE
Sensitivity
nA/ppm in 400ppm H2
10 to 25
Response time
t90 (s) from zero to 400ppm H2
<45
Zero current
ppm equivalent in zero air
± 15
Resolution
RMS noise (ppm equivalent)
<0.7
Range
ppm H2 limit of performance warranty
2,000
Linearity
ppm error at full scale, linear at zero and 400ppm H2
-200 to -500
Overgas limit
maximum ppm for stable response to gas pulse
5,000



H2-AF Hydrogen Sensor H2 Sensor LIFETIME
Zero drift
ppm equivalent change/year in lab air
<20
Sensitivity drift
% change/year in lab air, monthly test
nd
Operating life
months until 80% original signal  (24 month warranted)
> 24



H2-AF Hydrogen Sensor H2 Sensor ENVIRONMENTAL
Sensitivity @ -20°C
% (output @ -20°C/output @ 20°C) @ 500 ppm H2
10 to 25
Sensitivity @ 50°C
% (output @ 50°C/output @ 20°C) @ 500 ppm H2
220 to 275
Zero @ -20°C
ppm equivalent change from 20°C
± 2
Zero @ 50°C
ppm equivalent change from 20°C
0 to -4



H2-AF Hydrogen Sensor H2 Sensor CROSS SENSITIVITY
Filter capacity
ppm·hrs H2S
nd
CO     sensitivity
% measured gas @ 400ppm CO
<2
NO2   sensitivity
% measured gas @ 10ppm NO2
<1
Cl2     sensitivity
% measured gas @ 10ppm Cl2
<1
NO     sensitivity
% measured gas @ 50ppm NO
<40
SO2   sensitivity
% measured gas @ 20ppm SO2
<4
H2S   sensitivity
% measured gas @ 20ppm H2S
<2
C2H4 sensitivity
% measured gas @ 400ppm C2H4
<25
NH3   sensitivity
% measured gas @ 20ppm NH3
<1
CO2   sensitivity
% measured gas @ 5% CO2
<1



H2-AF Hydrogen Sensor H2 Sensor KEY SPECIFICATIONS
Temperature range
°C
-30 to 50
Pressure range
kPa
80 to 120
Humidity range
% rh
15 to 90
Storage period
months @ 3 to 20°C (stored in sealed pot)
6
Load resistor
Ω (recommended)
10 to 47
Weight
g
<6


Product Tags: Hydrogen Sensor , H2 Sensor
