Home > Electrical & Electronics > Sensor > Pressure Sensor > O2-A3 Electrochemical Oxygen Sensor (O2 Sensor)

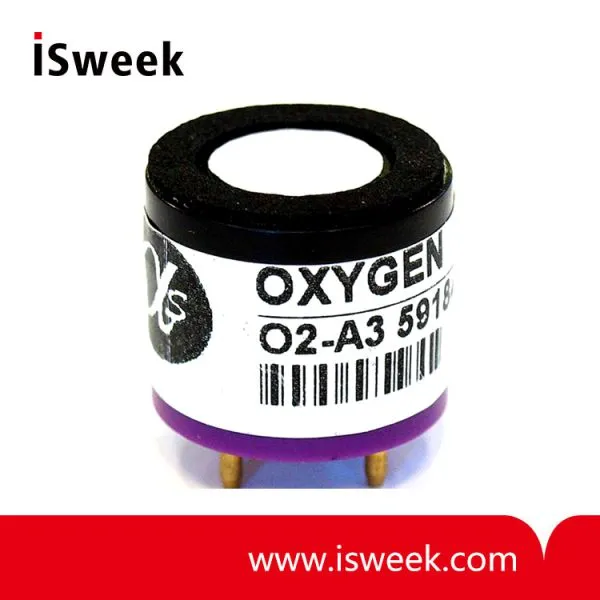

O2-A3 Electrochemical Oxygen Sensor (O2 Sensor)
US$ 30 - 80
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Alphasense
Place of Origin:
United Kingdom
Model Number:
O2-A3
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
PH3-B1 Electrochemical Phosphine Sensor (PH3 Sensor)US$ 30 - 100MOQ: 1 Piece -
NH3-A1 Electrochemical Ammonia Sensor (NH3 Sensor)US$ 30 - 80MOQ: 1 Piece
-
O2-G1 Miniature Size Oxygen Sensor (O2 Sensor)US$ 30 - 100MOQ: 1 Piece
-
O2-C2 Electrochemical Oxygen Sensor (O2 Sensor)US$ 30 - 100MOQ: 1 Piece
-
NH3-B1 Electrochemical Ammonia Sensor (NH3 Sensor)US$ 30 - 100MOQ: 1 Piece
Brand Name
Alphasense
Place of Origin
United Kingdom
Model Number
O2-A3
Usage
Gas Sensor
Theory
Other, Electrochemical Gas Sensor
Output
Analog Sensor
O2-A3 Oxygen Sensor O2 Sensor Description
Alphasense Oxygen sensors use capillary flow control.
Unlike partial pressure oxygen sensors, they have good pressure and temperature dependence, making them the best choice in safety applications.
Standard galavanic sensors use lead for greatest reliability but fixed lifetime.
O2-A3 Oxygen Sensorsize:
20mm diameter, the industry standard size for portable gas detectors
O2-A3 Oxygen Sensor O2 Sensor Schematic Diagram
| O2-A3 Oxygen Sensor O2 Sensor PERFORMANCE | ||
| Output |
μA @ 22℃, 20.9% O2 |
60 to 85 |
| Response time |
t90 (s) from 20.9% to 0% O2 (47W load resistor) |
|
| Zero current |
μA @ 99.99% N2, 22℃ |
|
| O2-A3 Oxygen Sensor O2 Sensor LIFETIME | ||
| Output drift |
% change in output @ 3 months |
|
| Operating life |
months until 85% original output in 20.9% O2 |
> 36 |
| O2-A3 Oxygen Sensor O2 Sensor ENVIRONMENTAL | ||
| Humidity sensitivity |
% O2 change: 0% to 95% rh @ 40℃ |
|
| CO2 sensitivity |
% change in output / % CO2 @ 5% CO2 |
+ 0.1 |
| Pressure sensitivity |
(% change of output)/(% change of pressure) @ 20kPa |
|
| O2-A3 Oxygen Sensor O2 Sensor KEY SPECIFICATIONS | ||
| Temperature range |
℃ |
-30 to 55 |
| Pressure range |
kPa |
80 to 120 |
| Humidity range |
% rh continuous (0 to 99% rh short term) |
5 to 95 |
| Storage period |
months @ 3 to 20℃ (store in sealed container) |
6 |
| Load resistor |
Ω (recommended) |
47 to 100 |
| Height |
mm (including foam ring) |
17.4 |
| Weight |
g |
|
