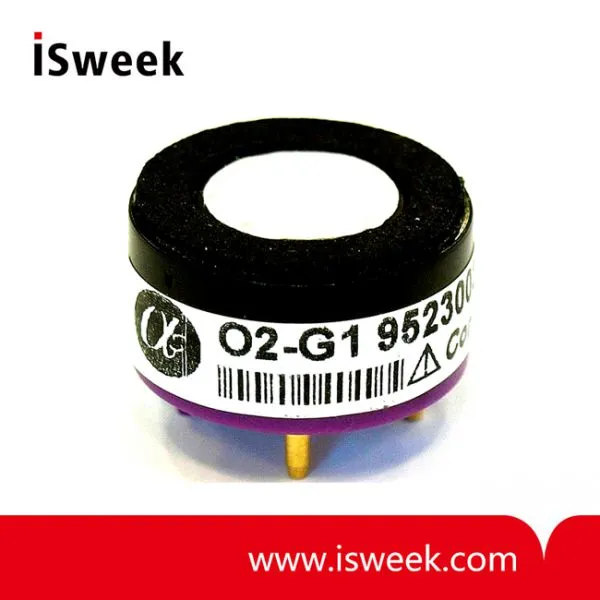

O2-G1 Oxygen Sensor (O2 Sensor) Description
Alphasense Oxygen sensors use capillary flow control.
Unlike partial pressure oxygen sensors, they have good pressure and temperature dependence, making them the best choice in safety applications.
Standard galavanic sensors use lead for greatest reliability but fixed lifetime.
O2-G1 Oxygen Sensor size:
Miniature, proven long-term performance. The sensors are designed for the next generation of portable gas detectors. Part of the Alphasense ‘D‘ family.
O2-G1 Oxygen Sensor Key Features & Benefits:
Small Footprint
Reduced Height
Low Weight
Good Connectivity: Uses industry standard, low cost, Molex sockets for direct board insertion.
Reduced Costs: High quality design with a significant reduction in the cost per measured gas, allied to reduced manufacturing costs are passed on to OEMs
O2-G1 Oxygen Sensor (O2 Sensor) PERFORMANCE | ||
| Output |
μA @ 22℃, 20.9% O2 |
65 to 85 |
| Response time |
t90 (s) from 20.9% to 0% O2 (47W load resistor) |
|
| Zero current |
μA @ 99.999% N 2 , 22℃ |
|
| O2-G1 Oxygen Sensor (O2 Sensor) LIFETIME | ||
| Output drift |
% change in output @ 3 months |
|
| Operating life |
months until 85% original output in 20.9% O2 |
> 12 |
| O2-G1 Oxygen Sensor (O2 Sensor) ENVIRONMENTAL |
||
| Humidity sensitivity |
% O2 change: 0% to 95% rh @ 40℃ |
|
| CO2 sensitivity |
% change in output / % CO2 @ 5% CO2 |
+ 0.1 |
| Pressure sensitivity |
(% change of output)/(% change of pressure) @ 20kPa |
|
| Output at -20℃ |
% output/output at 20℃ in 20.9% O2 |
87 to 93 |
| Output at +50℃ |
% output/output at 20℃ in 20.9% O2 |
103 to 107 |
| O2-G1 Oxygen Sensor (O2 Sensor) KEY SPECIFICATIONS | ||
| Temperature range |
℃ |
-30 to 55 |
| Pressure range |
kPa |
80 to 120 |
| Humidity range |
% rh continuous (0 to 99% rh short term) |
5 to 95 |
| Storage period |
months @ 3 to 20℃ (store in sealed container) |
6 |
| Load resistor |
Ω (recommended) |
47 to 100 |
| Weight |
g |
|
