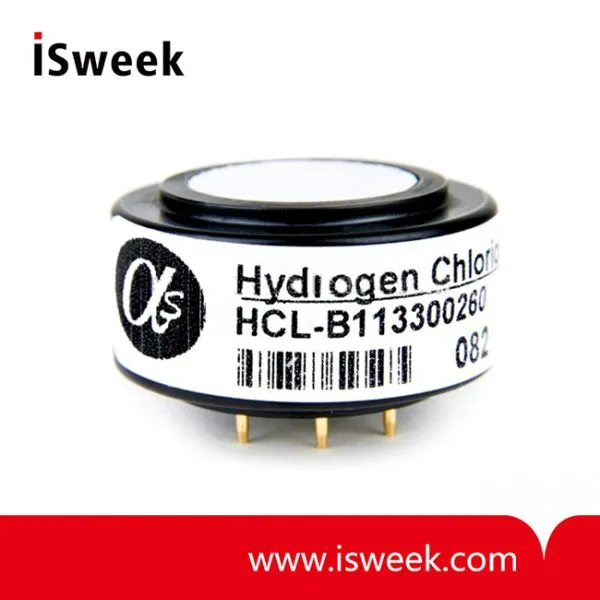

HCL-B1 Hydrogen Chloride Sensor HCL Sensor Description
Alphasense is expanding its line of electrochemical toxic gas sensors to address industry-specific requirements, including emissions monitoring, process safety, environmental monitoring and VOCs.
Hydrogen Chloride (HCl)/Hydrogen Bromide (HBr)
The HCL sensor also detects Hydrogen Bromide (HBr). These HCL sensors are zero biased for easier use.
Available in A and B series.
| HCL-B1 Hydrogen Chloride Sensor HCL Sensor PERFORMANCE | ||
| Sensitivity |
nA/ppm in 25ppm HCl |
150 to 250 |
| Response time |
t90 (s) from zero to 25ppm HCl |
|
| Zero current |
ppm equivalent in zero air |
0 to 3 |
| Resolution |
RMS noise (ppm equivalent) |
|
| Range |
ppm HCl limit of performance warranty |
100 |
| Linearity |
ppm error at full scale, linear at zero, 40ppm HCl |
0 to 6 |
| Overgas limit |
maximum ppm for stable response to gas pulse |
200 |
| HCL-B1 Hydrogen Chloride Sensor HCL Sensor LIFETIME | ||
| Zero drift |
ppm equivalent change/year in lab air |
nd |
| Sensitivity drift |
% change/year in lab air, monthly test |
nd |
| Operating life |
months until 80% original signal (12 month warranted) |
nd |
| HCL-B1 Hydrogen Chloride Sensor HCL Sensor ENVIRONMENTAL | ||
| Sensitivity @ 0°C |
% (output @ 0°C/output @ 20°C) @ 25ppm HCl |
80 to 95 |
| Sensitivity @ 50°C |
% (output @ 50°C/output @ 20°C) @ 25ppm HCl |
100 to 108 |
| Zero @ -20°C |
ppm equivalent change from 20°C |
|
| Zero @ 50°C |
ppm equivalent change from 20°C |
|
| HCL-B1 Hydrogen Chloride Sensor HCL Sensor CROSS SENSITIVITY | ||
| H2S sensitivity |
% measured gas @ ppm H2S |
|
| NO2 sensitivity |
% measured gas @ ppm NO2 |
|
| Cl2 sensitivity |
% measured gas @ ppm Cl2 |
|
| NO sensitivity |
% measured gas @ ppm NO |
|
| SO2 sensitivity |
% measured gas @ ppm SO2 (transient peak) |
|
| CO sensitivity |
% measured gas @ ppm CO |
|
| H2 sensitivity |
% measured gas @ ppm H2 |
|
| C2H4 sensitivity |
% measured gas @ ppm C2H4 |
|
| NH3 sensitivity |
% measured gas @ ppm NH3 |
|
| CO2 sensitivity |
% measured gas @ 5% CO2 |
|
| HCL-B1 Hydrogen Chloride Sensor HCL Sensor KEY SPECIFICATIONS | ||
| Temperature range |
°C |
-30 to +50 |
| Pressure range |
kPa |
80 to 120 |
| Humidity range |
% rh continuous |
15 to 90 |
| Storage period |
months @ 3 to 20°C (stored in original container) |
6 |
| Load resistor |
Ω (recommended) |
10 to 33 |
| Bias voltage |
mV |
not required |
| Weight |
g |
|
Matched Transmitter board for HCL-B1 HCL Sensor
4-20mA Analogue Transmitter Board
• Factory calibration, custom-set for immediate use
• Wide operating voltage range
• Low RFI susceptibility
Alphasense 4-20 mA analogue transmitter boards provide a cost effective way for Original Equipment Manufacturers to engineer transmitter heads for fixed installation systems.
4-20mA Digital Transmitter Board
• Factory calibration, custom-set for immediate use
• Digital zero, sensitivity and temperature compensation
• Digital and 4-20mA output
• Biased or unbiased operation
• Calibration and range change
