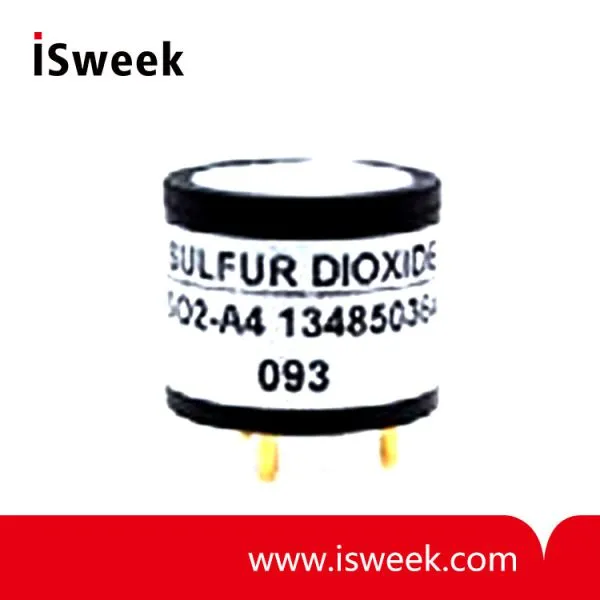

SO2-A4 Sulfur Dioxide Sensor SO2 Sensor Description
Alphasense Sulfur Dioxide gas sensors operate using proven fuel cell technology.
SO2-A4 Sulfur Dioxide Sensor size:
20mm diameter, the industry standard size for portable gas detectors
The SO2 range provides OEMs with reliable sensors for use in a variety of applications. Strong signal levels combined with low zero current allows resolution below 1ppm and an operating range for safety applications up to 2,000ppm. The sensors are designed for use in both fixed site and portable instrumentation.
The SO2 sensors offer our electrolyte leak-free guarantee and reliable long-term detection performance. The leakproof housing is moulded with a colour coded top for ease of identification.
| SO2-A4 Sulfur Dioxide Sensor SO2 Sensor PERFORMANCE | ||
| Sensitivity |
nA/ppm at 2ppm SO2 |
320 to 480 |
| Response time |
t90 (s) from zero to 2ppm SO2 |
|
| Zero current |
nA in zero air at 20°C |
5 to 45 |
| Noise* |
±2 standard deviations (ppb equivalent) |
15 |
| Range |
ppm limit of performance warranty |
50 |
| Linearity |
ppb error at 20ppm SO2, linear at zero and 2ppm SO2 |
0 to -5 |
| Overgas limit |
maximum ppm for stable response to gas pulse |
100 |
| * Tested with Alphasense AFE low noise circuit | ||
| SO2-A4 Sulfur Dioxide Sensor SO2 Sensor LIFETIME | ||
| Zero drift |
ppb equivalent change/year in lab air |
|
| Sensitivity drift |
% change/year in lab air, monthly test |
|
| Operating life |
months until 50% original signal (24 month warranted) |
> 36 |
| SO2-A4 Sulfur Dioxide Sensor SO2 Sensor ENVIRONMENTAL | ||
| Sensitivity @ -20°C |
(% output @ -20°C/output @ 20°C) @ 2ppm SO2 |
80 to 95 |
| Sensitivity @ 50°C |
(% output @ 50°C/output @ 20°C) @ 2ppm SO2 |
90 to 105 |
| Zero @ -20°C |
nA change from 20°C |
|
| Zero @ 50°C |
nA change from 20°C |
150 to 300 |
| SO2-A4 Sulfur Dioxide Sensor SO2 Sensor CROSS SENSITIVITY | ||
| Filter capacity |
ppm·hrs |
450 |
| H2S sensitivity |
% measured gas @ 5ppm H2S |
|
| NO2 sensitivity |
% measured gas @ 5ppm NO2 |
|
| Cl2 sensitivity |
% measured gas @ 5ppm Cl2 |
|
| NO sensitivity |
% measured gas @ 5ppm NO |
|
| CO sensitivity |
% measured gas @ 5ppm CO |
|
| H2 sensitivity |
% measured gas @ 100ppm H2 |
|
| C2H4 sensitivity |
% measured gas @ 100ppm C2H4 |
|
| NH3 sensitivity |
% measured gas @ 20ppm NH3 |
|
| CO2 sensitivity |
% measured gas @ 5% CO2 |
|
| SO2-A4 Sulfur Dioxide Sensor SO2 Sensor KEY SPECIFICATIONS | ||
| Temperature range |
°C |
-30 to 50 |
| Pressure range |
kPa |
80 to 120 |
| Humidity range |
% rh continuous (see note below) |
15 to 90 |
| Storage period |
months @ 3 to 20°C (stored in sealed pot) |
6 |
| Load Resistor |
Ω (AFE circuit is recommended) |
33 to 100 |
| Weight |
g |
|
Matched Transmitter board for SO2-A4 SO2 Sensor
Analogue Front End (AFE) Alphasense A4 Air Quality Sensors
The family of Analogue Front End (AFE) circuits are designed for use with the A4 air quality sensors. Connect the AFE with A4 sensors to your multtiplexed ADC and you are recording air quality data immediately.
