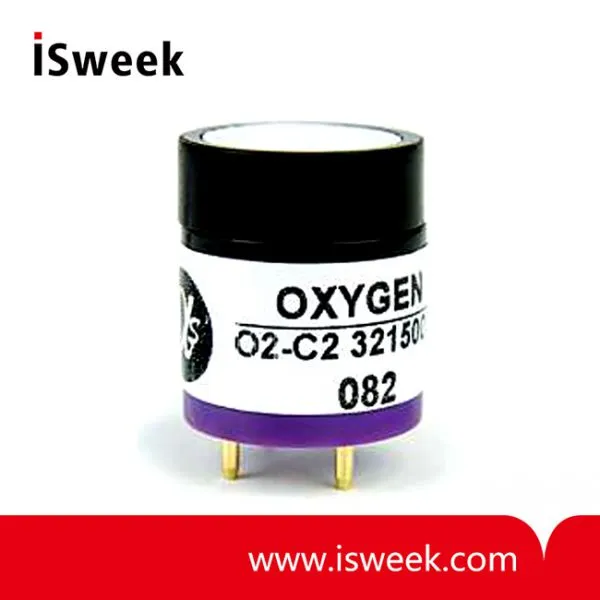

O2-C2 Electrochemical Oxygen Sensor (O2 Sensor)
US$ 30 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Alphasense
Place of Origin:
United Kingdom
Model Number:
O2-C2
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
NH3-B1 Electrochemical Ammonia Sensor (NH3 Sensor)US$ 30 - 100MOQ: 1 Piece -
ULPSM-O3 968-005 Ultra-Low Power Analog Ozone (O3) Sensor ModuleUS$ 30 - 80MOQ: 1 Piece
-
CM9 Electrochemical Carbon Monoxide Sensor (CO Sensor)NegotiableMOQ: 1 Piece
-
CM8 Electrochemical Carbon Monoxide Sensor (CO Sensor)NegotiableMOQ: 1 Piece
-
PSMU Series PM2.5/PM1.0 Particle SensorNegotiableMOQ: 1 Piece
Brand Name
Alphasense
Place of Origin
United Kingdom
Model Number
O2-C2
Usage
Gas Sensor
Theory
Other, Electrochemical Gas Sensor
Output
Analog Sensor
O2-C2 Oxygen Sensor (O2 Sensor) Description
Alphasense Oxygen sensors use capillary flow control.
Unlike partial pressure oxygen sensors, they have good pressure and temperature dependence, making them the best choice in safety applications.
Standard galavanic sensors use lead for greatest reliability but fixed lifetime.
O2-C2 Oxygen Sensor size:
20mm diameter, extra height allows additional filter material when measuring combustion gases
| O2-C2 Oxygen Sensor (O2 Sensor) PERFORMANCE | ||
| Output |
μA @ 20.9% O2 |
80 to 120 |
| Response time |
t90 (s) from 20.9% to 0% O2 |
|
| Zero current |
μA in N2 |
|
| Linearity |
% O2 deviation @ 10% O2 |
-0.6 |
| O2-C2 Oxygen Sensor (O2 Sensor) LIFETIME | ||
| Output drift |
% change in output @ 3 months |
|
| Operating life |
months until 85% original output of 20.9% O2 |
> 24 |
| O2-C2 Oxygen Sensor (O2 Sensor) ENVIRONMENTAL | ||
| Humidity sensitivity |
% O2 change: 0% to 95% rh @ 40℃ |
|
| CO2 sensitivity |
(% change O2 reading) / % CO2 @ 5% CO2 |
0.1 |
| Pressure sensitivity |
(% change of output)/(% change of pressure) @ 20kPa |
|
| O2-C2 Oxygen Sensor (O2 Sensor) KEY SPECIFICATIONS | ||
| Temperature range |
℃ |
-30 to 55 |
| Pressure range |
kPa |
80 to 120 |
| Humidity range |
% rh continuous (0 to 99% rh short term) |
5 to 95 |
| Storage period |
months @ 3 to 20℃ (store in sealed pot, open circuit) |
6 |
| Load resistor |
Ω (recommended) |
47 to 100 |
| Weight |
g |
|
