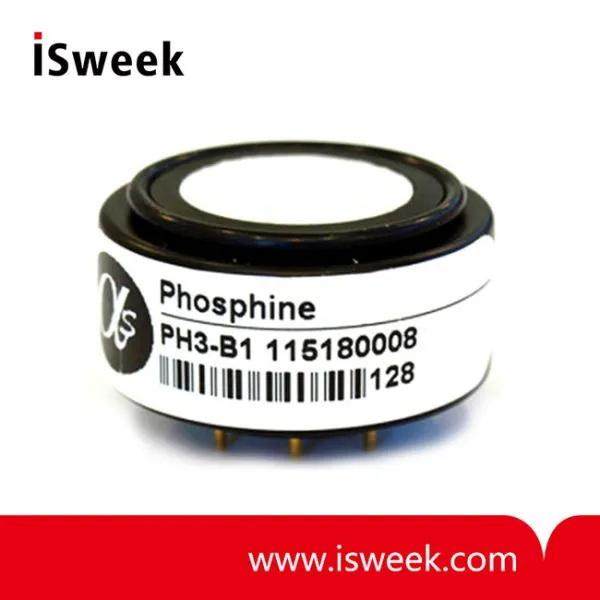

PH3-B1 Electrochemical Phosphine Sensor (PH3 Sensor)
US$ 30 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Alphasense
Place of Origin:
United Kingdom
Model Number:
PH3-B1
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
NH3-A1 Electrochemical Ammonia Sensor (NH3 Sensor)US$ 30 - 80MOQ: 1 Piece -
O2-G1 Miniature Size Oxygen Sensor (O2 Sensor)US$ 30 - 100MOQ: 1 Piece
-
O2-C2 Electrochemical Oxygen Sensor (O2 Sensor)US$ 30 - 100MOQ: 1 Piece
-
NH3-B1 Electrochemical Ammonia Sensor (NH3 Sensor)US$ 30 - 100MOQ: 1 Piece
-
ULPSM-O3 968-005 Ultra-Low Power Analog Ozone (O3) Sensor ModuleUS$ 30 - 80MOQ: 1 Piece
Brand Name
Alphasense
Place of Origin
United Kingdom
Model Number
PH3-B1
Usage
Gas Sensor
Theory
Other, Electrochemical Gas Sensor
Output
Analog Sensor
PH3-B1 Phosphine Sensor PH3 Sensor Description
Alphasense is expanding its line of electrochemical toxic gas sensors to address industry-specific requirements, including emissions monitoring, process safety, environmental monitoring and VOCs.
Phosphine (PH3)
Our Phosphine sensors cover all hydrides: Silane (SiH4), Diborane (B2H6), Germane (GeH4) and Phosphine (PH3) for the semiconductor industry.
| PH3-B1 Phosphine Sensor PH3 Sensor PERFORMANCE | ||
| Sensitivity |
nA/ppm in 5ppm PH3 |
600 to 1000 |
| Response time |
t90 (s) from zero |
|
| Zero current |
ppm equivalent in zero air |
|
| Resolution |
RMS noise (ppm equivalent) |
|
| Range |
ppm limit of performance warranty |
10 |
| Linearity |
ppm PH3 error at full scale,linear at zero,4ppm PH3 |
-1 to -1.8 |
| Overgas limit |
maximum ppm for stable response to gas pulse |
150 |
| PH3-B1 Phosphine Sensor PH3 Sensor LIFETIME | ||
| Zero drift |
ppm equivalent change/year in lab air |
|
| Sensitivity drift |
% change/year in lab air, monthly test |
|
| Operating life |
months until 80% original signal (24 month warranted) |
> 24 |
| PH3-B1 Phosphine Sensor PH3 Sensor ENVIRONMENTAL | ||
| Sensitivity @ -20°C |
%(output @ -20°C/output @ 20°C) @ 5ppm PH3 |
65 to 85 |
| Sensitivity @ 50°C |
%(output @ 50°C/output @ 20°C) @ 5ppm PH3 |
120 to 140 |
| Zero @ -20°C |
ppm equivalent change from 20°C |
|
| Zero @ 50°C |
ppm equivalent change from 20°C |
|
| PH3-B1 Phosphine Sensor PH3 Sensor CROSS SENSITIVITY | ||
| CO sensitivity |
% measured gas @ 400ppm CO |
|
| H2S sensitivity |
% measured gas @ 20ppm H2S |
|
| NO2 sensitivity |
% measured gas @ 20ppm NO2 |
|
| Cl2 sensitivity |
% measured gas @ 10ppm Cl2 |
|
| NO sensitivity |
% measured gas @ 50ppm NO |
|
| SO2 sensitivity |
% measured gas @ 20ppm SO2 |
|
| H2 sensitivity |
% measured gas @ 400ppm H2 at 20°C |
|
| C2H4 sensitivity |
% measured gas @ 400ppm C2H4 |
|
| NH3 sensitivity |
% measured gas @ 20ppm NH3 |
|
| CO2 sensitivity |
% measured gas @ 5% CO2 |
|
| PH3-B1 Phosphine Sensor PH3 Sensor KEY SPECIFICATIONSP | ||
| Temperature range |
°C |
-30 to 50 |
| Pressure range |
kPa |
80 to 120 |
| Humidity range |
% rh continuous |
15 to 90 |
| Storage period |
months @ 3 to 20℃ (stored in sealed pot) |
6 |
| Load resistor |
Ω |
10 to 33 |
| Weight |
g |
|
Matched Transmitter board for PH3-B1 PH3 Sensor
4-20mA Digital Transmitter Board
• Factory calibration, custom-set for immediate use
• Digital zero, sensitivity and temperature compensation
• Digital and 4-20mA output
• Biased or unbiased operation
• Calibration and range change
