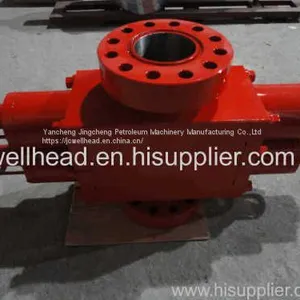

Oil Well 7 1/16" 2FZ 18-35 Double RAM BOP
2FZ 18-35 Double RAM BOP 7 1/16" Oil Well Service
Introduction of the RAM BOP
Doule ram BOP with manual operation is the important component of well drilling control equipment. Ram BOP is mainly composed of housing, side gate, hydro-cylinder, cylinder cap, piston, piston rod, lock shaft, sealing parts, ram, etc. Oil well's sealing or opening is achieved by moving ram, which is driven by piston rod and piston with hydraulic force.
Features of the RAM BOP
* The RAM BOP can be rapidly opened
* It will save labor in
* The RAM BOP is easy to be maintened
Type of RAM BOP
According to the number of ram installed in each set, ram BOP can be divided into single ram, double ram and three ram BOP.
According to the ram opening and closing method, ram BOP can be divided into BOP of hydraulic control and BOP of manual control.
According to the ram locking method, ram BOP can be divided into manual locking and hydraulic locking.
Specification of the 7 1/16" RAM BOP
Model |
Bore / in |
WP / MPa |
Shear |
Open volume / L |
Close volume / L |
Locking type |
Weight |
Connection |
|
TOP |
Bottom |
||||||||
FZ18-21 |
7 1/16 |
21 |
N |
2x1.6 |
2x2 |
Manual |
798 |
Studded |
Studded |
2FZ18-21 |
4x1.6 |
4x2 |
1660 |
Studded |
Studded |
||||
FZ18-35 |
35 |
N |
2x1.6 |
2x2 |
798 |
Studded |
Flanged |
||
2FZ18-35 |
4x1.6 |
4x2 |
1660 |
Studded |
Studded |
||||
FZ18-35 |
35 |
Y |
2x5.8 |
2x6.2 |
1065 |
Flanged |
Studded |
||
2FZ18-35 |
4x5.8 |
4x6.2 |
2140 |
Flanged |
Studded |
||||
FZ18-70 |
70 |
Y |
2x8.8 |
2x9.6 |
1900 |
Studded |
Flanged |
||
2FZ18-70 |
4x8.8 |
4x9.6 |
3866 |
Flanged |
Flanged |
||||
Oil Well 7 1/16" 2FZ 18-35 Double RAM BOP
2FZ 18-35 Double RAM BOP 7 1/16" Oil Well Service
