I. Company Profile
Han's Laser - Asia's largest, world-famous laser processing equipment manufacturer Named by Forbes as one of China's most potential enterprises for 4 years in a row (2005-2008).
The first listed company with laser as the main operation in China;With the largest output and sales volume of laser processing equipment in the world;National Pilot Innovative Enterprise;National Key High-tech Enterprise;National Torch Plan unit, 863 Plan Project unit;National Model Enterprise Focusing On Promoting Scientific and Technical Payoffs;Key Software Enterprises Under the National Planning.
Hans GS is one of the four manufacturing base of Han's Laser Technology Industry Group Co., Ltd.
2.Description of machine

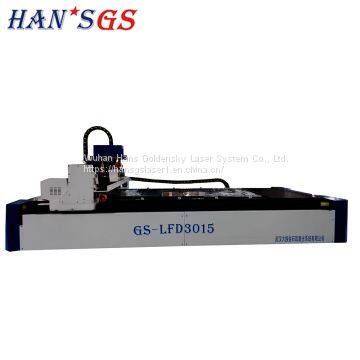

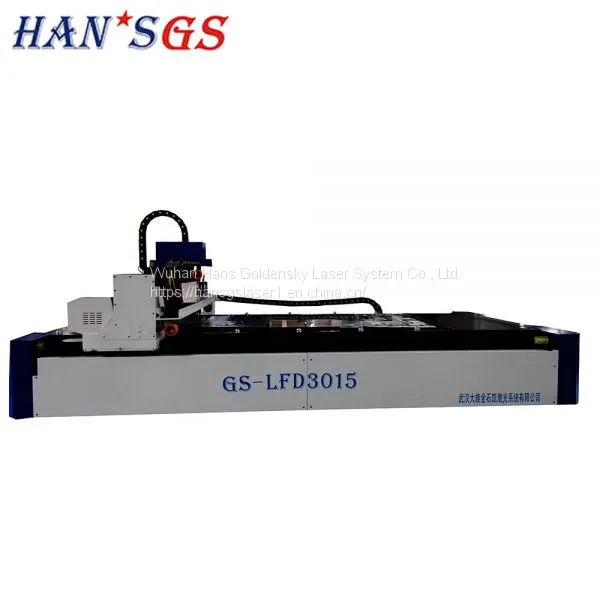

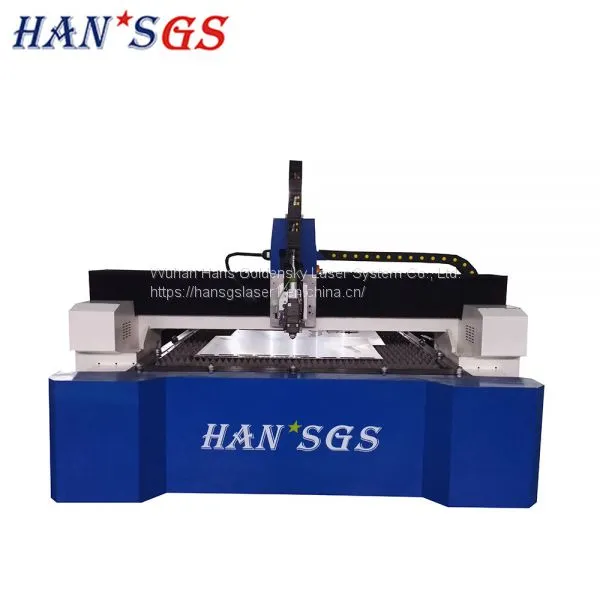

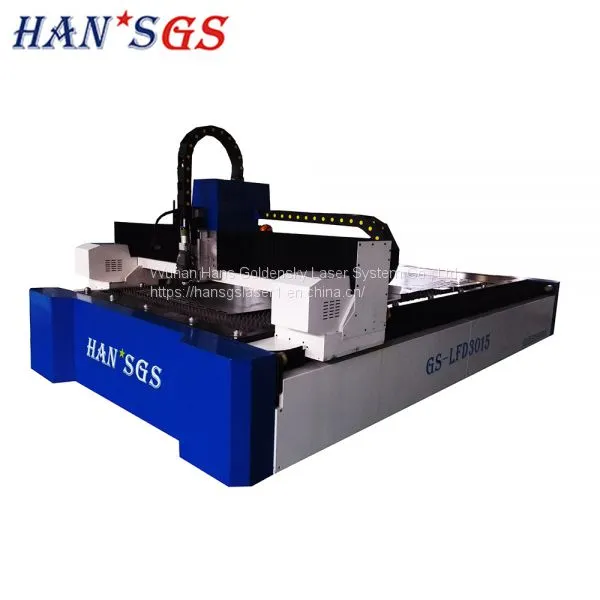

Laser cutting machine integrates optical, mechanical and electrical in one, which adopts laser technology, computer control technology and highperformance CNC laser power system to process all kinds of metal sheet with high speed and efficiency. LFD3015 Laser Cutting Machine's maxima cutting range is 3000x1500mm, it has the advantages of processing quickly, the product smooth edges, cutting, small kerf width and less heat effect, which is especially good performance on sheet metal processing.
Technical Data
| Model | GS-LFD3015 |
| Laser source medium | Fiber |
| Laser power | 500W~4000W |
| Cutting range(L*W) | 3000mm × 1500mm |
| Z axle stroke | 100 mm |
| Max positioning speed | 120m/min |
| Max height of feeding material | more than 120mm |
| Cooling form | water cooling |
| Laser wavelength | 1070nm |
| Min. cutting gap | ≤0.1mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.01 mm |
| Drive model | Imported servo motor |
| Power requirement | 380V,50/60Hz |
| Working temperature | 5ºC-45ºC |
| Continuous working time | 24 Hours |
| Outer dimension | 4270mm x2280mm x 1750mm |
| Total protection level of power supply | IP54 |
3.Applicable Materials and Industry

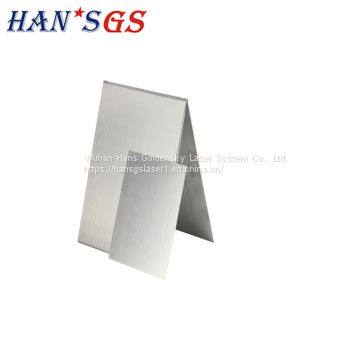

It is suitable for the cutting of stainless steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum sheet, gold, silver, titanium, pipe and tube.
It has been widely used in different kinds of manufacturing and processing lines: metal billboard, metal advertising letter, sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware, metal artwork, metal parts, spectacle frame, etc, which have brought customers a high ratio of interest.
4.The basic preparation for users
Users should provide good environments for equipments, such as placement without strong motion, clean and dry environment without dust, 15-350C for equipment working. Working power supply should be provided: three-phrase five-line power 380V/50HZ/60A.
5.The customer all over the world.
Experience nearly 20 years development and all of our teams hardworking,our laser machine have sent to Asia,America,Africa,Europe,Oceania.
What the customer need is what we should did!
Expecting you are the next one !
