Pipe steel cutting equipment with Fiber Optic Lasers , carbon steel pipe cutters
Description
Advanced fiber laser cutter
Structure

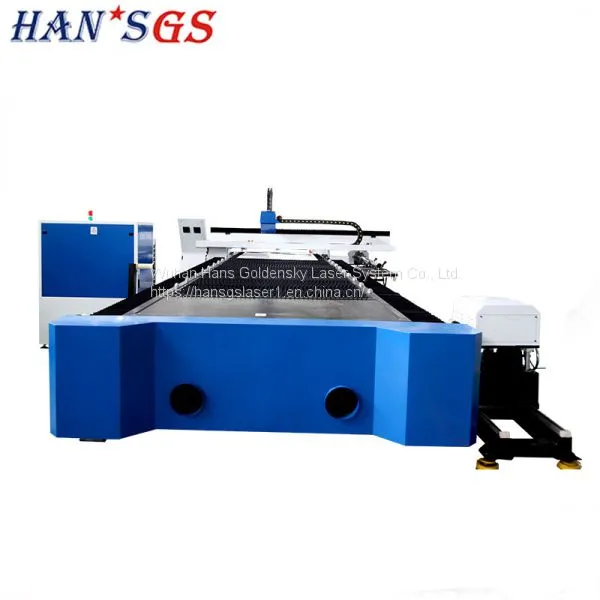

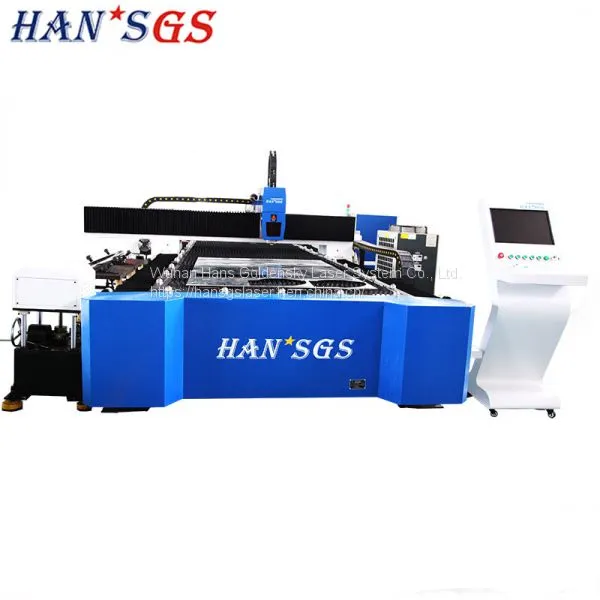

The machine has a strong gantry structure and unique design to make it the most user-friendly machine in the
market. The gantry structure ensures precision cutting since there the cross beam is supported at both ends,
hence no overhang.
The competitors models a re with a cantilever structure which is much weaker and less precise.
The machine also features total free space for workpiece cut off, metal particles and sparks. This feature not only
results in a clean working area but also the transmission system and all vital components of the machines are
protected from dust, metal and workpiece damage. Thus HAN'S GS machines have a longer life and more accurate cuts.
Clamping system
HAN'S GS pipe cutting laser machines comes equipped with two sets of high precision pneumatic chucks for
workpiece clamping.
The front chuck with four roller jaws helps in centering, holding and also allows for free front and back movement
of the workpiece.
The back chuck with four jaws holds the workpiece in position and has a rotation axis and linear axis to turn and
feed the workpiece respectively.

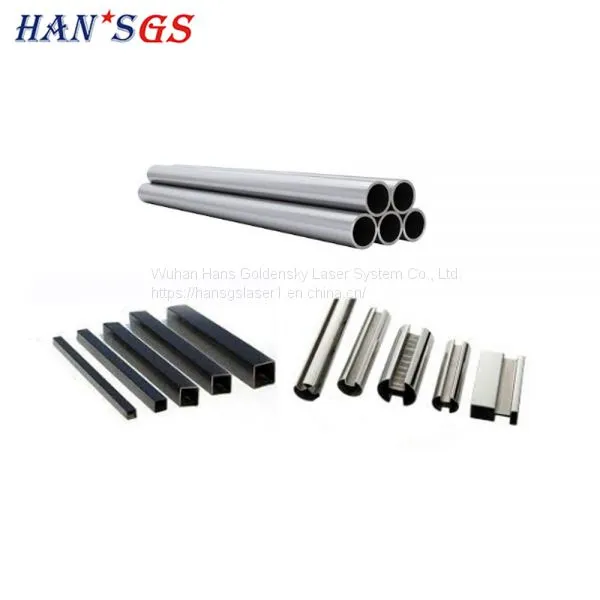

These chucks are very versatile since it can hold round, square, oval, rectangular and other irregular shaped
workpieces.
Specifications
Model |
GS-LFTP3015/4015/6015 |
Output power of laser source (Optional) |
500W/1000W/1500W |
|
Cutting area (L * W) (Optional)
|
3000 * 1500 mm 4000 * 1500 mm 6000 * 1500 mm |
Max. tube diameter |
200 mm |
Max. tube processing length |
3 m |
Max. tube cutting thickness |
6 mm |
X axle stroke |
3048 mm |
Y axle stroke |
2000 mm |
Z axle stroke |
80 mm |
Cooling |
water cooling |
Max. accelerated speed of X, Y axles |
1.2 G |
Kerf Width |
0.1 - 0.3 mm |
Positioning accuracy of X, Y and Z axles |
± 0.05 mm |
Repeated positioning accuracy of X, Y and Z axles |
± 0.03 mm |
Processing precision of work piece |
± 0.1 mm |
Kerf harshness |
Ra 3.2 - 12.5 μm |
Voltage |
380V, 50/60Hz |
Continuous working time |
24 Hours |
Max. bearing weight of working platform |
600 Kgs |
Total installed capacity |
20 - 25 KVA |
Total protection level of power supply |
IP54 |
Features of CNC control system:
1.Gantry axle function
2.Pulse punch function
3.Z axle tracking function
4.Complete laser code and parameter
5.Mechanical precision compensation
6.Storage for several processing file according to
7.Automatic acceleration/deceleration for corner cutting
8.Friendly man-machine interface, easy operation which can master in short time
9.Complete machine tool adjustment parameter and cutting technique database
10The laser power can be adjusted to suit for metals of different materials, thickness and working gas
Customer site
Certificate
Application
1. Can cut metal sheet/carbon steel/stainless steel/aluminum/copper/zinc
2. Petrochemical industry
3. Bus manufacturing
4. Steel construction
5. Medical equipment
6. Fitness equipment
7. Electrical engineering
8. Kitchen ware industry
9. Advertising brand
10. Precision machinery
11. Pipe processing
12. Metal processing
13. Sheet metal industry
