GDKZ-IV High Voltage Circuit Breaker Vacuum Degree Tester
Introduction:
GDKZ-IV High Voltage Circuit Breaker Vacuum Degree Tester, High Voltage Switchgear Vacuity Tester can direct quantitative measuring vacuum degree of vacuum switch interrupter without removing. It can not only measure the normal range of vacuum degree of switchgear, but also can measure some vacuum switches which leak faster. Comparing with the measuring results of past years, its life can generally be inferred, prevent accidents.
GDKZ-IV High Voltage Circuit Breaker Vacuum Degree Tester, High Voltage Switchgear Vacuity Tester is compact, lightweight and compact models, short test time, reliable measurement results, good stability, high precision, fully functional.
It is the ideal instrument for quantitative measuring vacuum switches.
Specifications:
No. |
Item Name |
GDKZ-IV High Voltage Circuit Breaker Vacuum Degree Tester, High Voltage Switchgear Vacuity Tester |
1 |
Detection objects |
various models of vacuum switch |
2 |
Detection method |
using new excitation coil and detect vacuum tube without disassembly |
3 |
Application area |
This instrument is a all-purpose type, can measure the vacuum of variety models of open magnetic vacuum tube |
4 |
Detection range |
10 -5 -10 -1 Pa |
5 |
Measurement accuracy |
10 -5 -10 -4 Pa, 10% 10 -4 -10 -3 Pa, 10% 10 -3 -10 -2 Pa, 10% 10 -2 -10 -1 Pa, 10% |
6 |
Magnetic field voltage |
1700V |
7 |
High-voltage of pulsed electric field |
30KV |
8 |
Open distance of switch tube in vacuum test |
normal open distance |
9 |
Testing environment |
-20℃~ 40℃ |
10 |
Weight |
12kg |
11 |
Dimension |
420 × 320 × 280 (mm) |
12 |
Sampler |
magnetic coil |

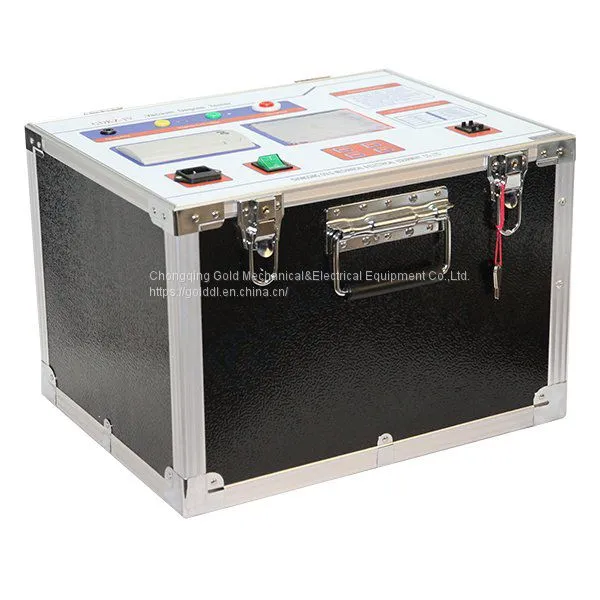

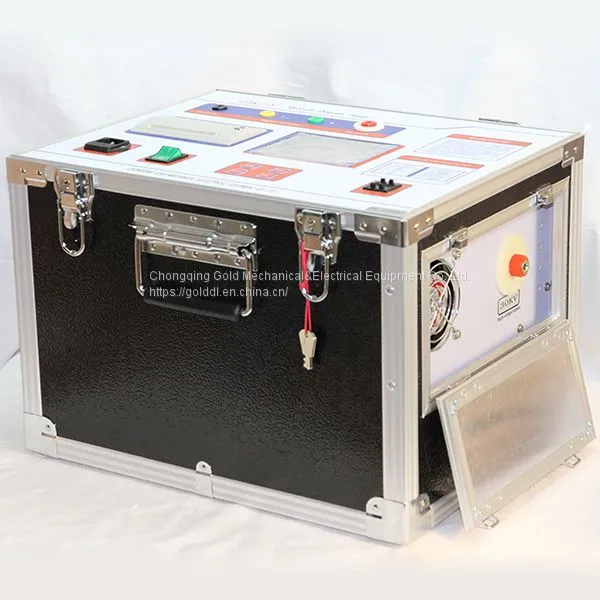

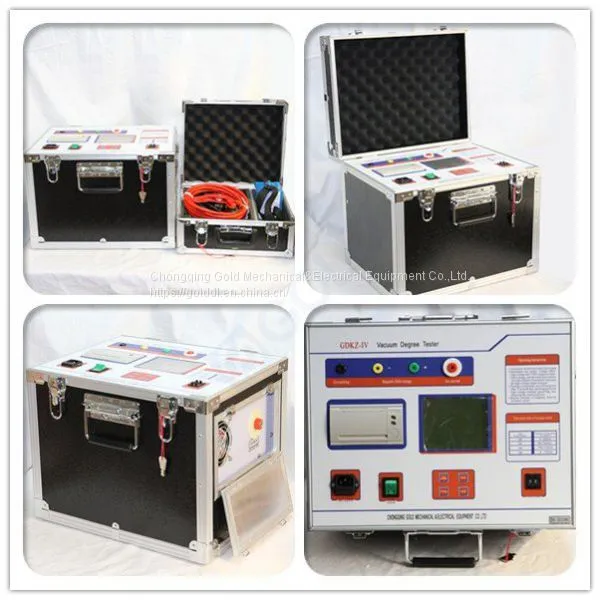

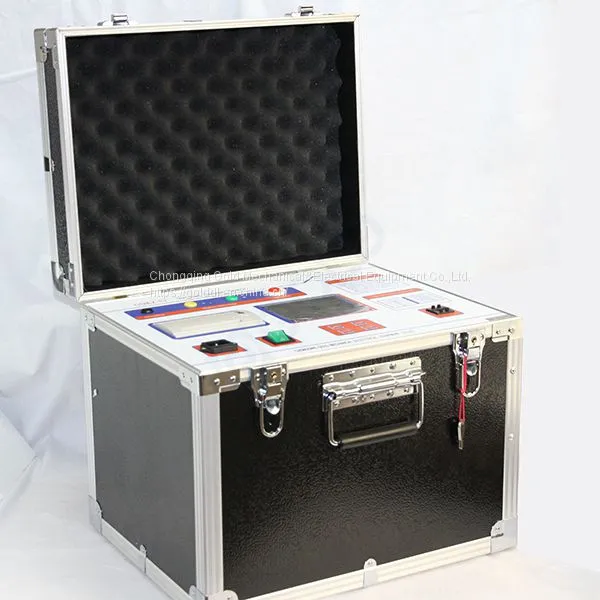

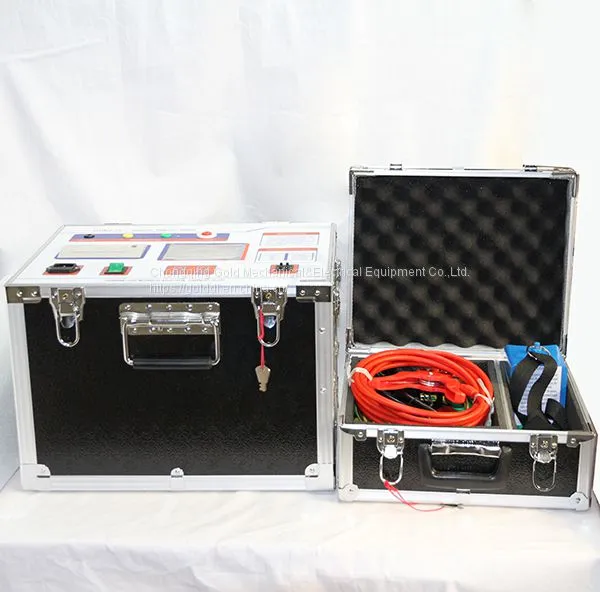

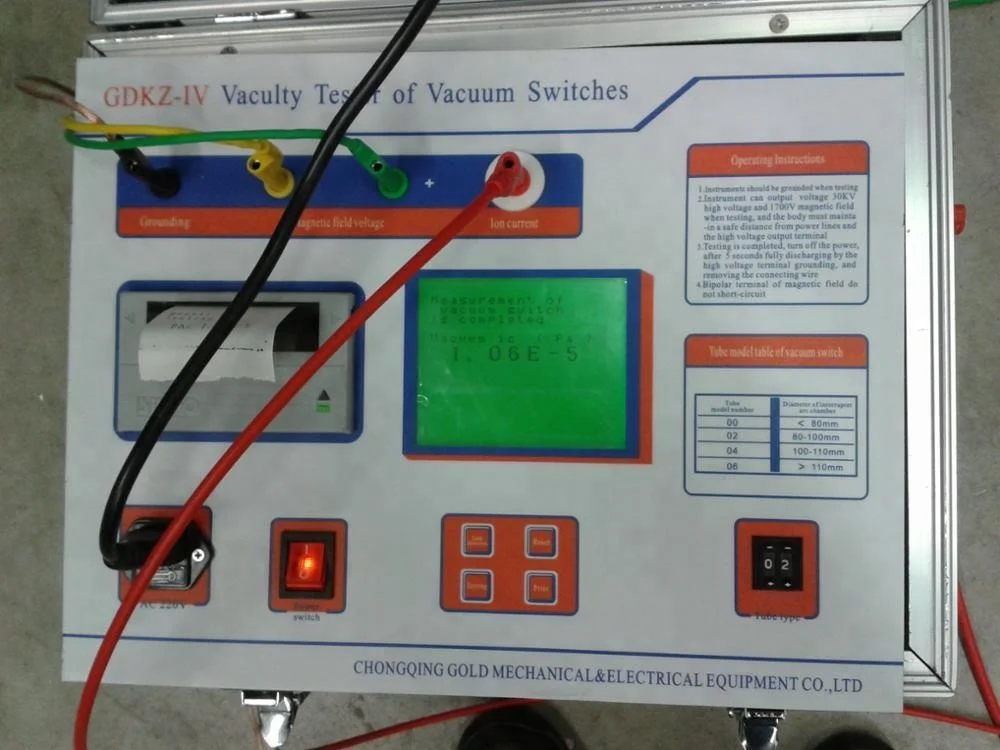

Product real pictures
Our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing instrument since 2009s’.
We have developed sales channels in many countries such as Malaysia,India,Germany,USA,Mexico,Saudi Arabia,South Africa and other countries worldwide. and we have gained great advantage and high reputation in international market.
We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity.Client,quality and service are our supreme target.
Pre-sale Service:
Inquiry will be replied within 24 hours.
Welcome to visit our factory.
Technical datas and operation manual sent for evaluation.
After-sale Service:
Training how to instal the machine, training how to use the machine at our factory;
Engineers available to service machinery overseas at customers' cost;
For most of the products, delivery lead time is 10 days after the order is confirmed; For some customized products, please check with the sales person.
What's the payment term?For total amount below USD3,000.0, payment term is 100% T/T as deposit; For total amount above USD3,000.0, payment term is 30% T/T as deposit, the balance before delivery; The payment term is also negotiable.
What's the warranty period?Warranty period is 1 year.
