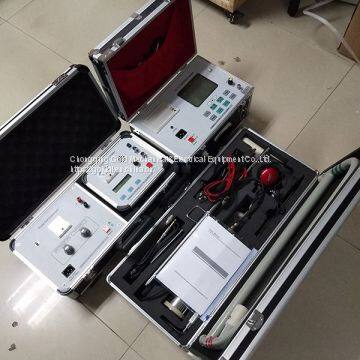

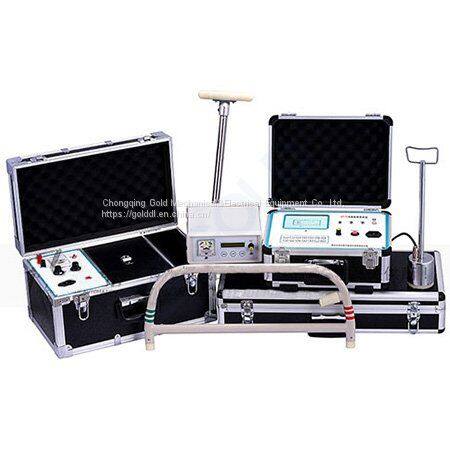

GD-TC 11kV-35kV Power Cable Fault Locator, Cable Fault Detector
Introduction:
GD-TC 11kV-35kV Power Cable Fault Locator, Cable Fault Detector can test all types power cable (voltage class 1KV~35KV) , local cable, coaxial cable, short circuit, earth, high resistance leakage, high resistance flashover fault of the metal overhead lines, and the broken & poor contact of the cable.
It also can test the length of the cable and the speed of the electric wave on the cable.
To test the HV arcing fault of cable, earthing high &low resistance, short circuit and breakage of the cable, poor contact, etc.;
If equipped with fault locator, it can decide the exact broken position of the cable ,applies to power cable in various type, voltage and communication cable;
Features:
Multi functional, safe, fast speed and accurate. It uses LV impulse method and HV flashover method to test, can test kinds of fault of the cable, if equipped with sound locator, can accurately the position of the fault point.
High precision, adopts high-speed sampling technique, A/D sampling speed is 100MHz, resolution is 1m, detection blind area is 1m.
High degree of intelligence, test results auto displayed by LCD.
Can store and review the waveform and parameters, these information will not loss after power off.
Dual display, compare the measured waveform and normal waveform of the fault cable, benefit to further detection of the fault.
With function of wave form expansion ratio, change the proportion of the waveform, expand the waveform to test.
Directly display the direct distance or relative distance between fault point and measured point.
Can modify the speed according different measured cable.
Portable design , small in volume , with rechargeable battery, easy to carry and operate.
Specifications:
1 |
Longest measured distance |
32km (100km for open wire ) |
2 |
Detection blind area |
1m |
3 |
Reading resolution |
1m |
4 |
Power consumption |
5VA |
5 |
Service conditions |
Temperature: －10℃ ~+ 50℃; Relative humidity: 40℃(20~90)%RH; Atmospheric pressure (86~106) Kpa |
6 |
Dimension |
225mm*165mm*125mm |
7 |
Weight |
2kg |
Our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing instrument since 2009s’.
We have developed sales channels in many countries such as Malaysia,India,Germany,USA,Mexico,Saudi Arabia,South Africa and other countries worldwide. and we have gained great advantage and high reputation in international market.
We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity.Client,quality and service are our supreme target.
Pre-sale Service:
Inquiry will be replied within 24 hours.
Welcome to visit our factory.
Technical datas and operation manual sent for evaluation.
After-sale Service:
Training how to instal the machine, training how to use the machine at our factory;
Engineers available to service machinery overseas at customers' cost;
What's the delivery lead time?
For most of the products, delivery lead time is 10 days after the order is confirmed; For some customized products, please check with the sales person.
What's the payment term?
For total amount below USD3,000.0, payment term is 100% T/T as deposit; For total amount above USD3,000.0, payment term is 30% T/T as deposit, the balance before delivery; The payment term is also negotiable.
What's the warranty period?
Warranty period is 1 year.
