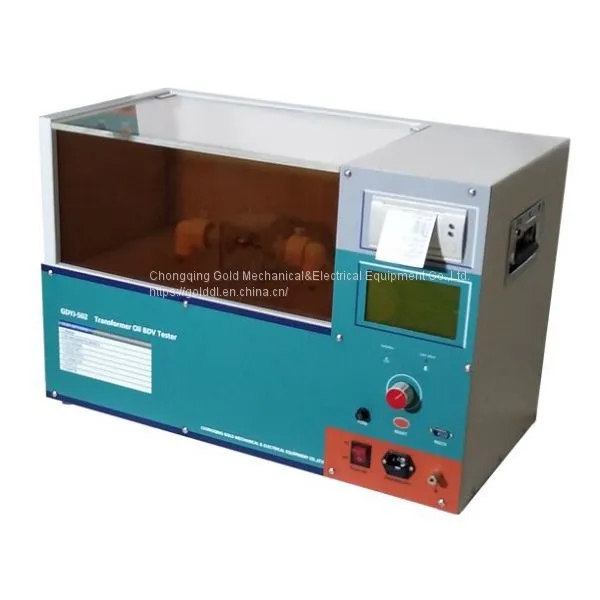

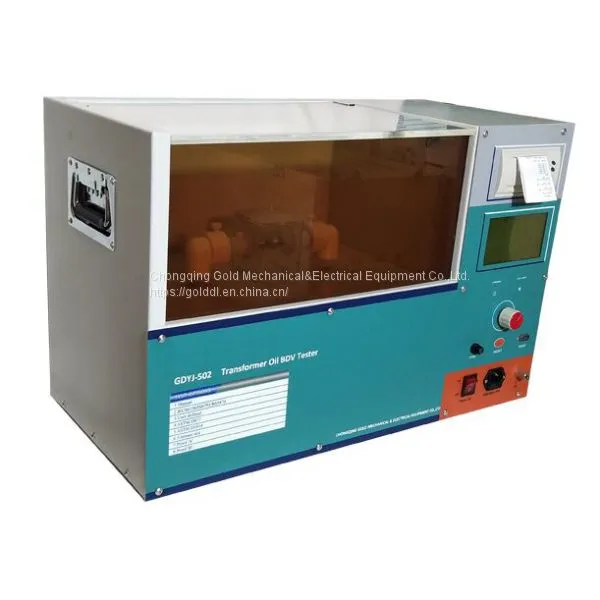

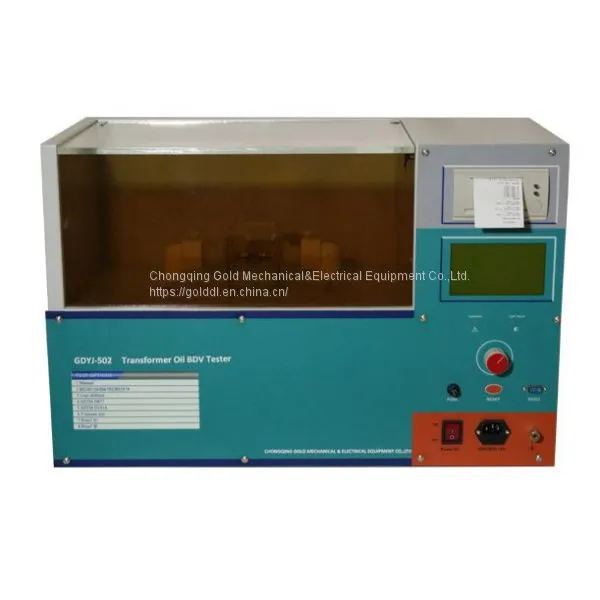

GDYJ-502 Transformer Oil Dielectric Strength,Oil Breakdown Voltage Tester
Standard
1.IEC6015/IEC6792/BS5874
2.ASTM D1816 standard test
3.ASTM D877 standard test
4.GB-86 Insulating Oil Dielectric Strength Testing Method
General introduction
1. The oil dielectric strength tester is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method .
2. The oil dielectric strength tester has big LCD screen which can display test procedure and test result.
3. All the human interaction operations complete by the rotating mouse .
4.the transformer oil test equipmentthe micro printer internal the tester.
5.the transformer oil dielectric strength tester has RS232 PC port for data analyzing.
The special circuit design makes the tester has a good performance at stability and anti-noise.
Functions
1 Breakdown test of user-defined
2 Proof test
3 IEC156/IS6792/BS5874/
4 ASTM D1816 standard test
5 ASTM D877 standard test
6 5 minutes standard test
7 Manual test
8 Calibration interface for customers
9 Unloading data to PC and making word report automatically.
10 Result print
Parameters
Power supply |
AC 220V |
Output voltage |
AC 0V~100KV |
Rate of voltage rise |
0.5kv/s±10%, 2kv/s±10%, 3kv/s±10%,5kv/s±10% |
Max test times |
9 |
Stir time |
0~999s |
Wait time |
0~999s |
Test error |
3% max in the range of 10kv~100kv |
|
Weight
|
41kg
|
Size |
620 mm*430mm*330mm |
Packin&Shipping
Company Information
Our company has become one of the leading manufacturer of electrical testing instrument since 2009s’.
We have developed sales channels in many countries such as Malaysia,India,Germany,USA,Mexico,Saudi Arabia,South Africa and other countries worldwide. and we have gained great advantage and high reputation in international market.
We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity.Client,quality and service are our supreme target.
Pre-sale Service:
Inquiry will be replied within 24 hours.
Welcome to visit our factory.
Technical datas and operation manual sent for evaluation.
After-sale Service:
Training how to instal the machine, training how to use the machine at our factory;
Engineers available to service machinery overseas at customers' cost;
