GDKF Transformer Load and No Load Loss Tester
Introduction:
GDKF Transformer Load and No Load Loss Tester is used to Measure the transformer load and no load current, load and no load loss, short-circuit voltage, short circuit (load) losses and capacity.
Test items:
RMS phase voltage
Average value of three-phase AC voltage
Three-phase current RMS
Percentage of no-load loss and no-load current
Load loss, impedance voltage, and the percentage of short-circuit impedance
Any given temperature, load loss, the percentage impedance voltage and short circuit impedance
Voltage waveform in the percentage of each harmonic component
Current waveform in the percentage of each harmonic component
Technical index:
Current measurement range: 100mA ~ 5A, accuracy class 0.2;
Voltage Range: 10V ~ 650V, accuracy class 0.2;
External transformer can broaden the scope of measurement instruments;
Frequency Range: 40 ~ 65Hz, accuracy class 0.2;
Power Input: AC220V ± 10%

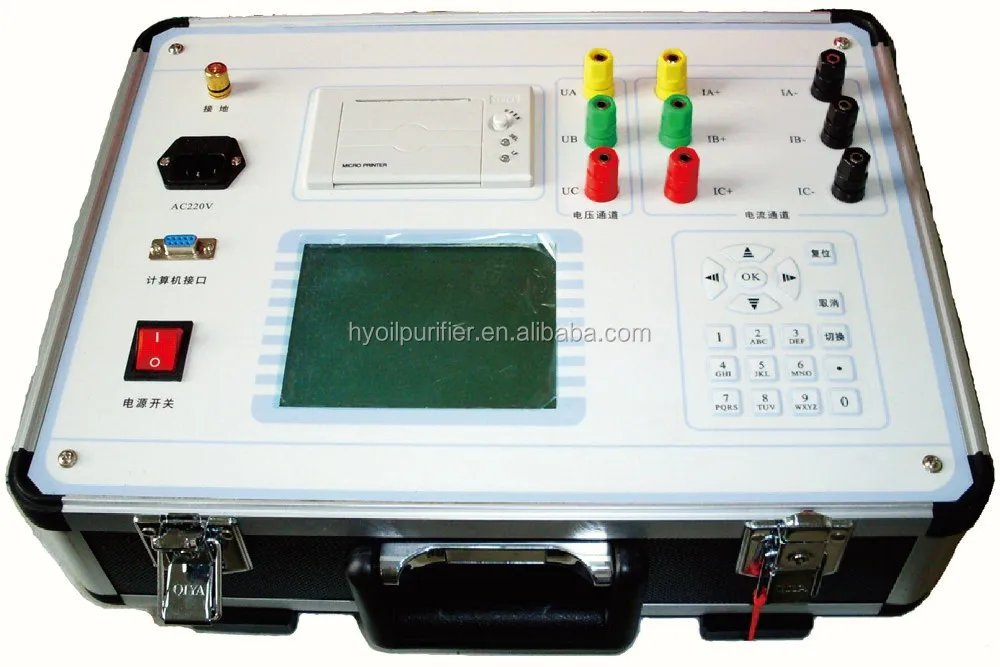

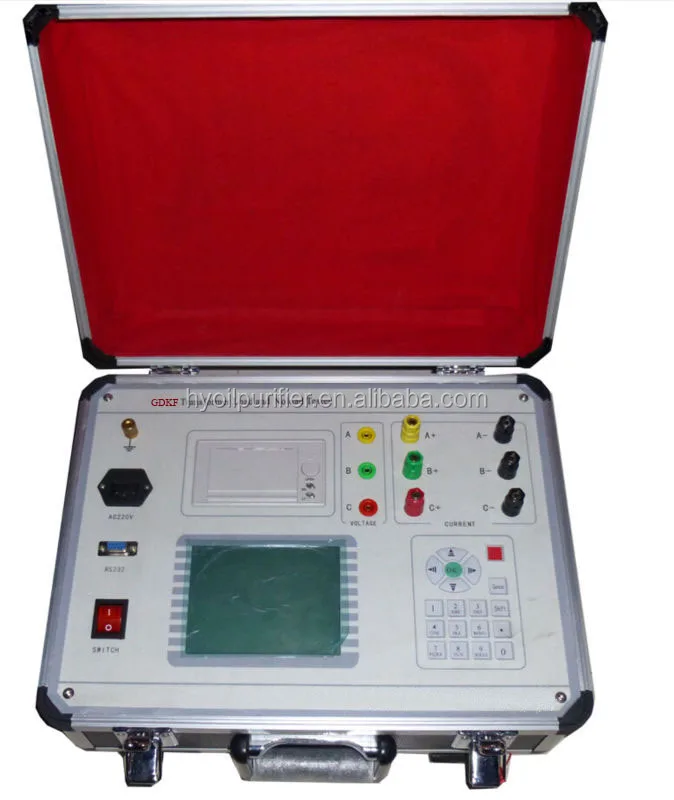

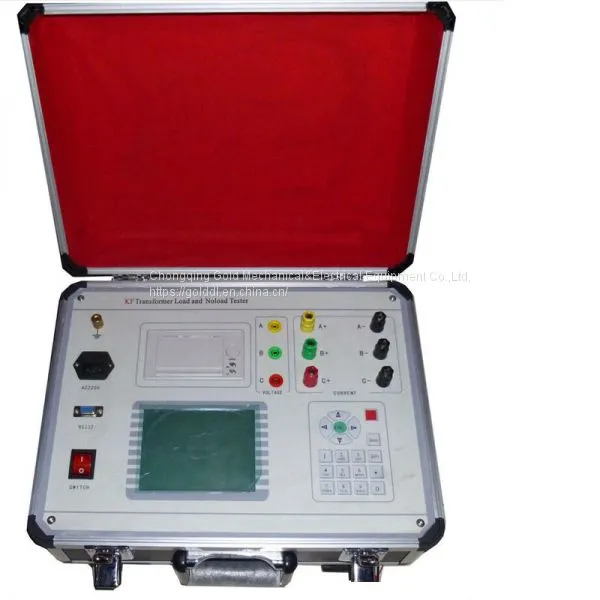

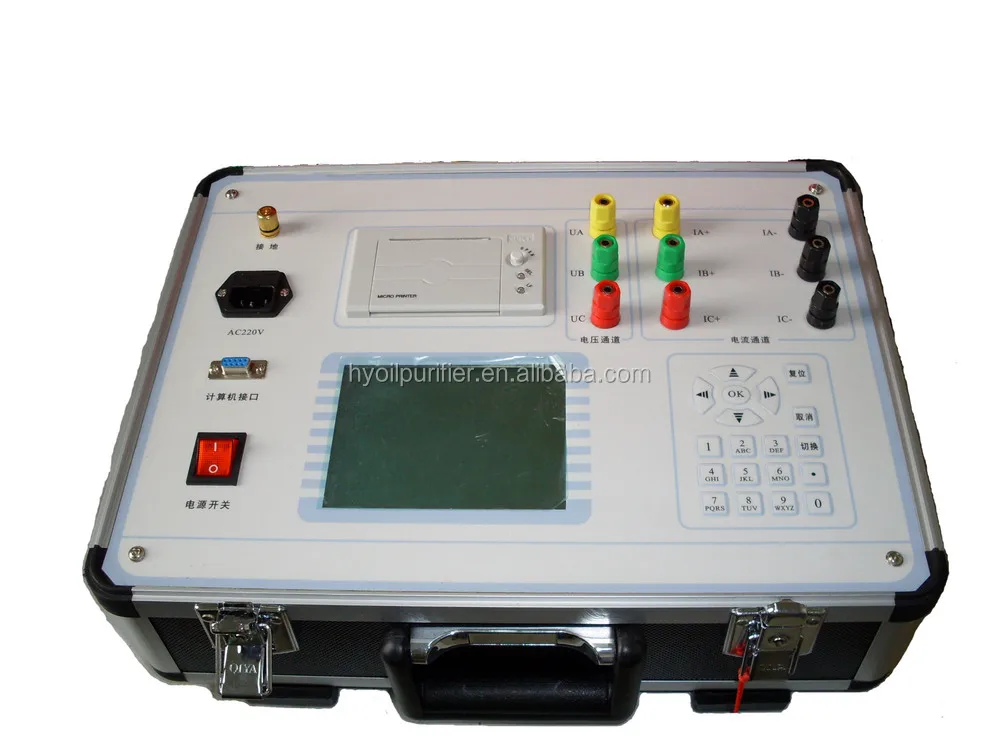

Product real picture show:
Our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing instrument since 2009s’.
We have developed sales channels in many countries such as Malaysia,India,Germany,USA,Mexico,Saudi Arabia,South Africa and other countries worldwide. and we have gained great advantage and high reputation in international market.
We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity.Client,quality and service are our supreme target.
Pre-sale Service:
Inquiry will be replied within 24 hours.
Welcome to visit our factory.
Technical datas and operation manual sent for evaluation.
After-sale Service:
Training how to instal the machine, training how to use the machine at our factory;
Engineers available to service machinery overseas at customers' cost;
