Home > Products > Electric testing equipment > GDYJ-502A Transformer oil Breakdown Voltage Tester for Oil Dielectric Strength testing

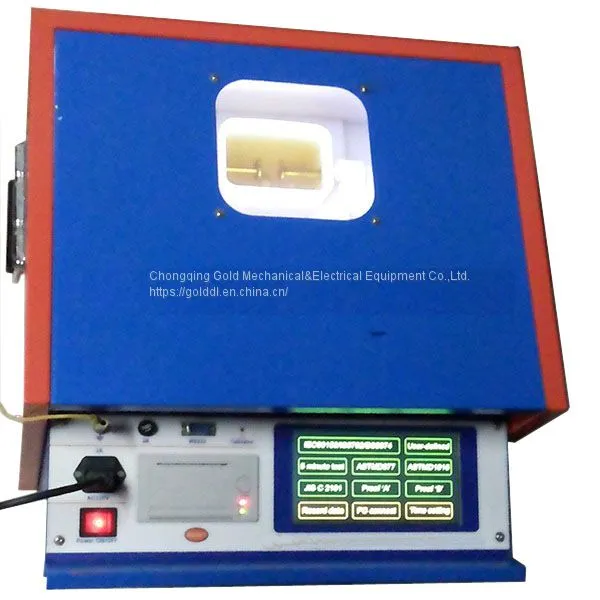

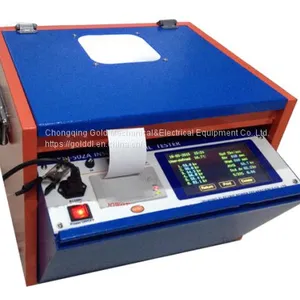

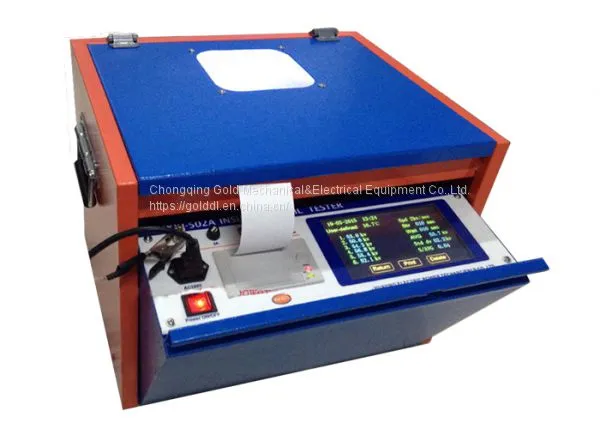

GDYJ-502A Transformer oil Breakdown Voltage Tester for Oil Dielectric Strength testing
- 9000 Set / Sets per Month
- Chongqing
- T/T L/C PayPal Other
- 7 days
Product Details
Brand Name: | Gold | Place of Origin: | China | Model Number: | GDYJ-502A |
Power: | Electronic | Usage: | Other, Transformer Oil dielectric strength tester |
Product Description
1. It is developed according to the national standard IEC156 Insulating Oil Dielectric Strength Testing Method .
2. LCD screen can display test procedure and test result.
3. All the human interaction operations complete by the rotating mouse .
4. It is very easy for customers to measure the breakdown voltage of all kinds of oil by GDYJ-502 Oil Breakdown Voltage Tester.
5. You can print the test result by the micro printer internal the tester,and upload the test data to PC from RS232 for data analyzing.
6. The special circuit design makes the tester has a good performance at stability and anti-noise.
1.IEC60156/IS6792/BS5874/VDE0370-5
2.User-defined
3.5 minute test
4.ASTMD877
5.ASTMD1816
6.JIS C 2101-99(S)
7.Proof "A"
8.Proof "B"
1. Voltage OEM for clients
2. AC220V±10% power supply input
3. Output voltage:AC 0V~100KV
4. Rate of voltage rise: 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
5. Max test times: 9
6. Init wait times:0~999s
7. Stir time: 0~999s
8. Wait time: 0~999s
9. Measurement accuracy: ±(1% of full scale + 2 digits) Resolution:0.1KV
10. Temperature measurement: yes
11. Measurement range : 0°C to 70°C, or better
12. Temperature resolution : 1°C, or better
13. Operating temperature : up to 45°C
14. Storage:100 groups
15. 7 inch colorful LCD with touch pad
16. Oil test vessel temperature measurement unit
17. All the selection can be done by touch panel with color LCD.
Our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing instrument since 2009s’.
We have developed sales channels in many countries such as Malaysia,India,Germany,USA,Mexico,Saudi Arabia,South Africa and other countries worldwide. and we have gained great advantage and high reputation in international market.
We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity.Client,quality and service are our supreme target.
Pre-sale Service:
Inquiry will be replied within 24 hours.
Welcome to visit our factory.
Technical datas and operation manual sent for evaluation.
After-sale Service:
Training how to instal the machine, training how to use the machine at our factory;
Engineers available to service machinery overseas at customers' cost;
