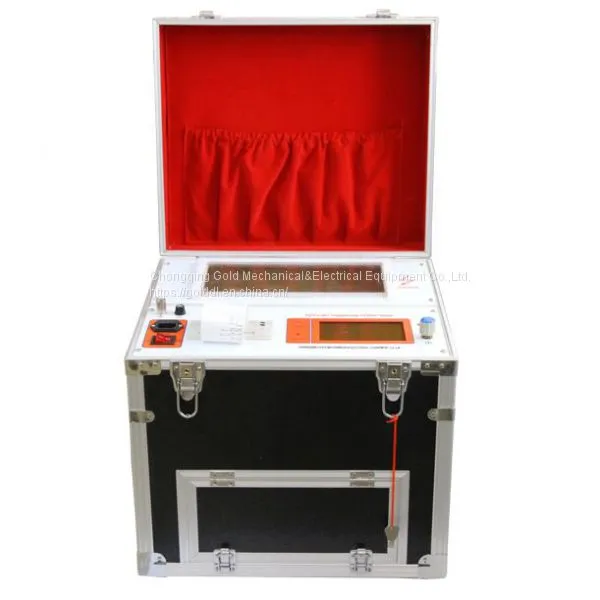

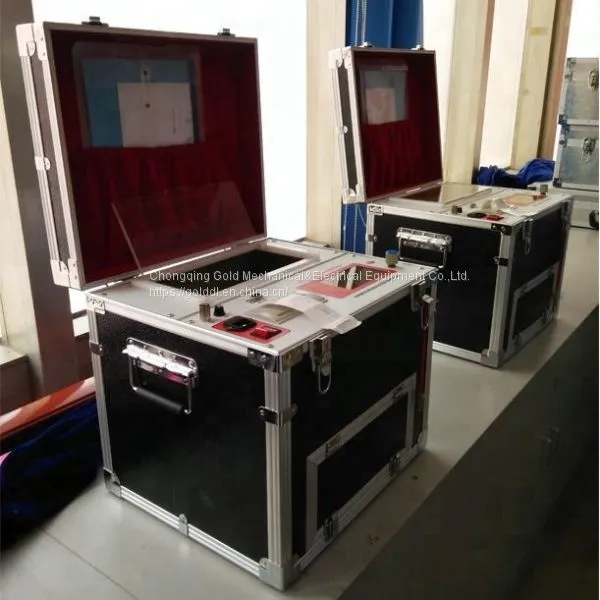

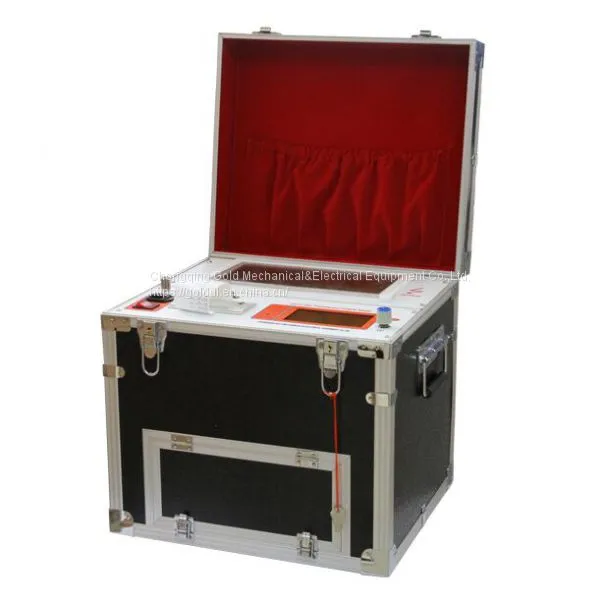

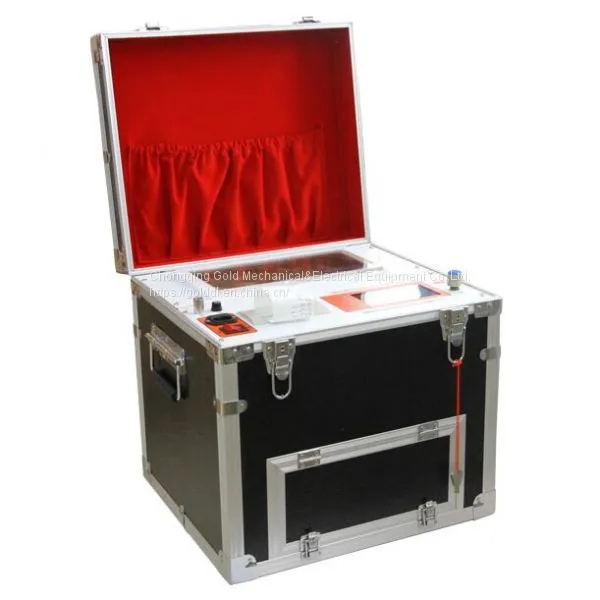

1.GDYJ-501 is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method .

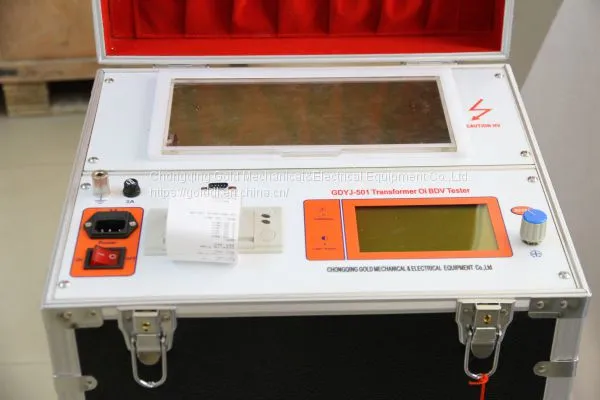

2.LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse
3.It is very easy for customers to measure the breakdown voltage of all kinds of oil by GDYJ-501.
4.You can print the test result by the micro printer internal the tester.
5.Of course, you can upload the test data to PC from RS232 for data analyzing.
6.The special circuit design makes the tester has a good performance at stability and anti-noise.
1 Breakdown test of user-defined
2 Proof test
3 Calibration interface for customers
4 Unloading data to PC and making word report automatically.
5 Result print
1 Rated power supply: AC 220V±10% 50/60Hz
2 Output voltage: AC 0~80KV/AC 0~100KV
3 Rate of voltage rise: 2KV/s±10%
4 Measuring precision: 3 class
5 Times: 1-9
6 Mixing time: 0~99 second
7 Placing time: 0-9 minute 59second
8 Save 100 groups of data most
9 Voltage limit setting for proof test: 20KV----70KV
10 Hold time for proof test: 1 minute -----10 minutes
11 Environment temperatures: 5-40℃
12 Relative humidity: ≤80%RH
13 Size: 420×380×410mm3
14 Weight: 28kg
Our company has become one of the leading manufacturer of electrical testing instrument since 2009s’.
We have developed sales channels in many countries such as Malaysia,India,Germany,USA,Mexico,Saudi Arabia,South Africa and other countries worldwide. and we have gained great advantage and high reputation in international market.
We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity.Client,quality and service are our supreme target.
Pre-sale Service:
Inquiry will be replied within 24 hours.
Welcome to visit our factory.
Technical datas and operation manual sent for evaluation.
After-sale Service:
Training how to instal the machine, training how to use the machine at our factory;
Engineers available to service machinery overseas at customers' cost;
